FriendlyElec NanoPi Duo2– RK3328 Mini SBC Geliştirme Kartı

3,480.00TL +KDV


FriendlyElec NanoPi Duo2 – RK3328 Mini SBC Geliştirme Kartı

SKU NanoPiDuo2

FriendlyElec NanoPi Duo2 – RK3328 Mini SBC Geliştirme Kartı

NanoPi Duo2'nizi kullanmaya başlamadan önce aşağıdaki öğeleri hazırlayın.

Teknik özellikler
DDR3 RAM 512M
Connectivity 10/100M Ethernet
Wi-Fi 802.11b/g/n
Bluetooth Bluetooth V4.0 of 1, 2 and 3 Mbps.

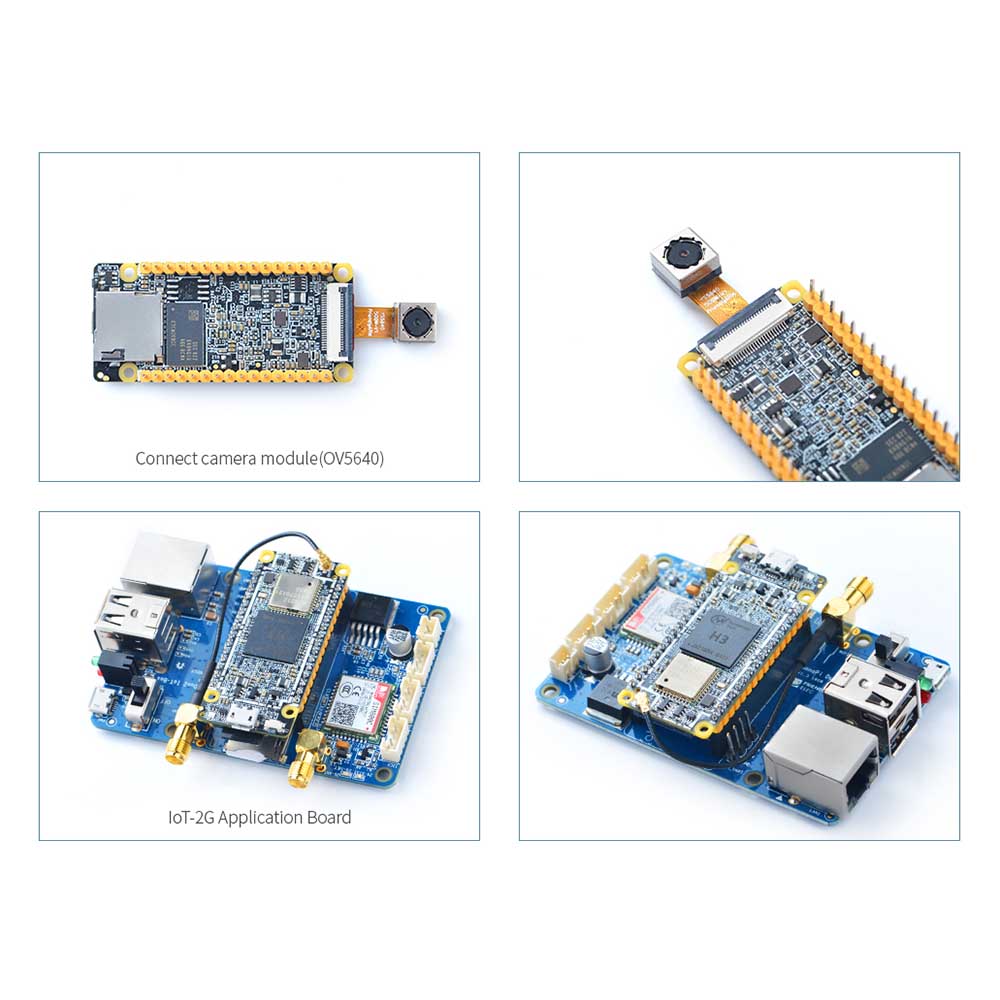

Camera OV5640
Key GPIO Key
USB Host 2.54mm pin x2, exposed in 2.54mm pitch pin header

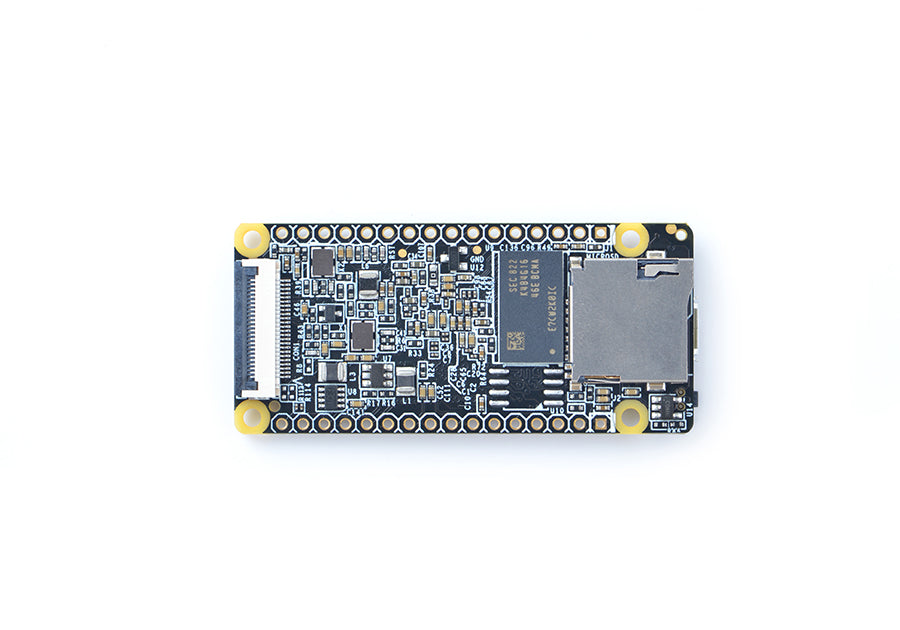

Özellik MicroSD Slot x 1
USB-C USB-C 2.0 DRP and power input
Debug Serial Interface exposed in 2.54mm pitch pin header
Audio input/output Interface exposed in 2.54mm pitch pin header

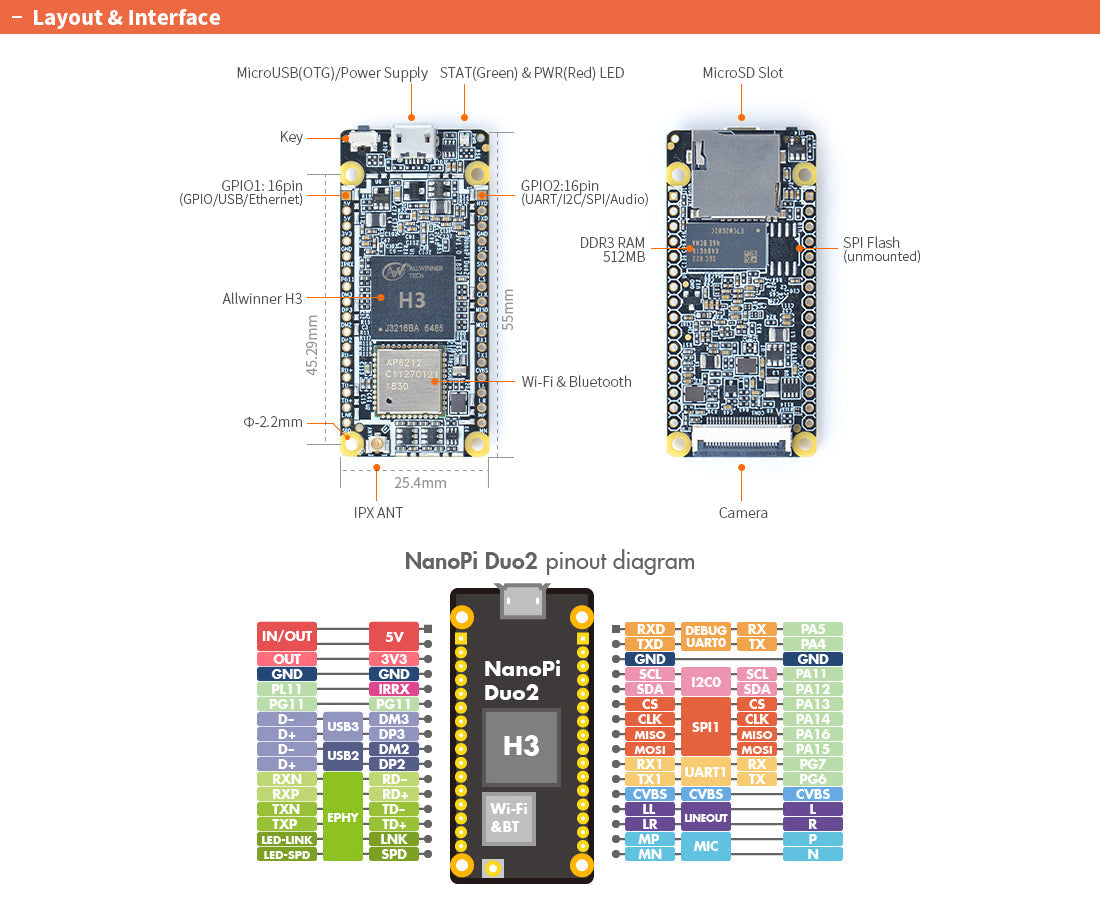

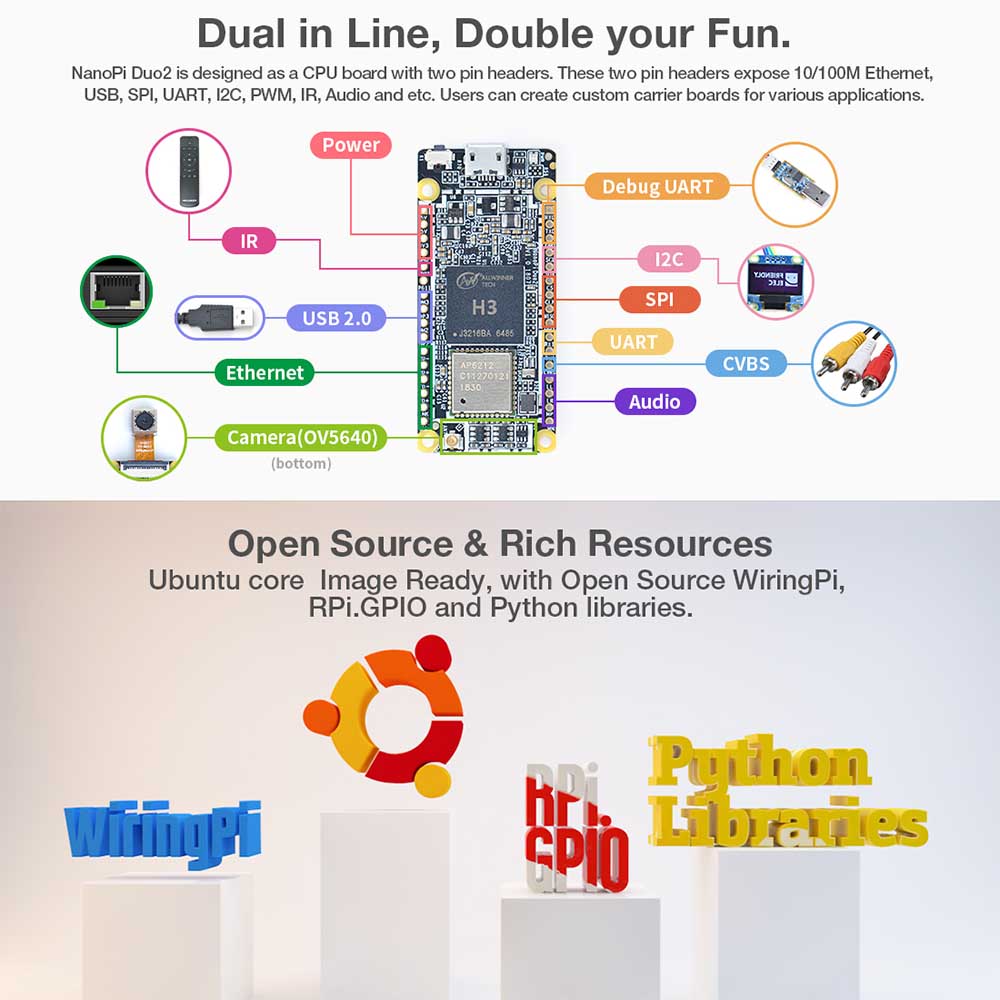

GPIO1 2.54mm spacing 16pin. It includes UART, SPI, I2C, Audio etc
GPIO2 2.54mm spacing 16pin. It includes USB,10/100M Ethernet, IO etc
PCB Dimension 25.4 x 55mm
Power Supply DC 5V/2A
Temperature measuring range -20℃ to 70℃
OS/Software U-boot,Linux-4.14 / Linux-3.4, Ubuntu 16.04.2 LTS (Xenial)
Ağırlık xxg(With Pin-headers)

Teknik özellikler konfigürasyona göre değişebilir. Proje ihtiyacınız için bizimle iletişime geçin.

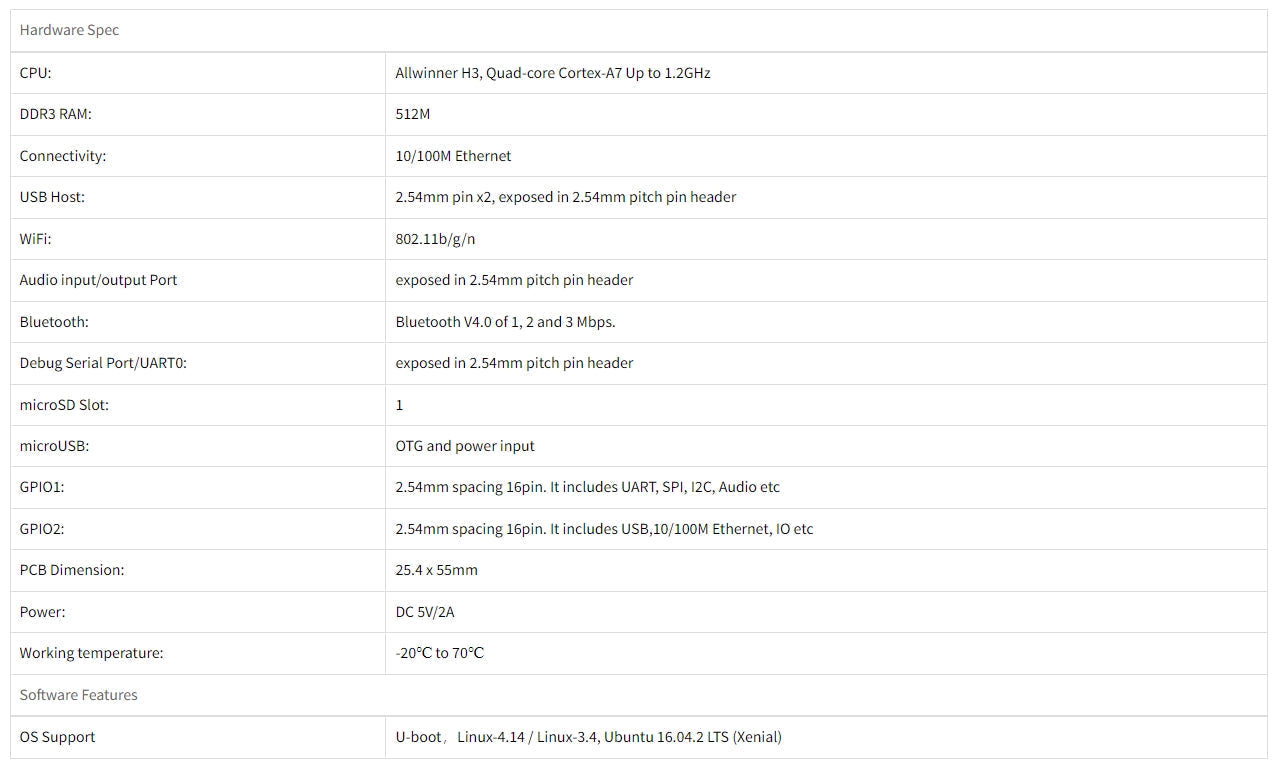

Özellik Değer
CPU Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
DDR3 RAM 512M
Connectivity 10/100M Ethernet
WiFi 802.11b/g/n
Bluetooth Bluetooth V4.0 of 1, 2 and 3 Mbps.
Camera OV5640
Key GPIO Key
USB Host 2.54mm pin x2, exposed in 2.54mm pitch pin header
USB-C USB-C 2.0 DRP and power input
Debug Serial Interface exposed in 2.54mm pitch pin header
Audio input/output Interface exposed in 2.54mm pitch pin header
GPIO1 2.54mm spacing 16pin. It includes UART, SPI, I2C, Audio etc
GPIO2 2.54mm spacing 16pin. It includes USB,10/100M Ethernet, IO etc
PCB Dimension 25.4 x 55mm
Power Supply DC 5V/2A
Temperature measuring range -20℃ to 70℃
OS/Software U-boot,Linux-4.14 / Linux-3.4, Ubuntu 16.04.2 LTS (Xenial)
Weight xxg(With Pin-headers)
CPU / SoC Allwinner H3
