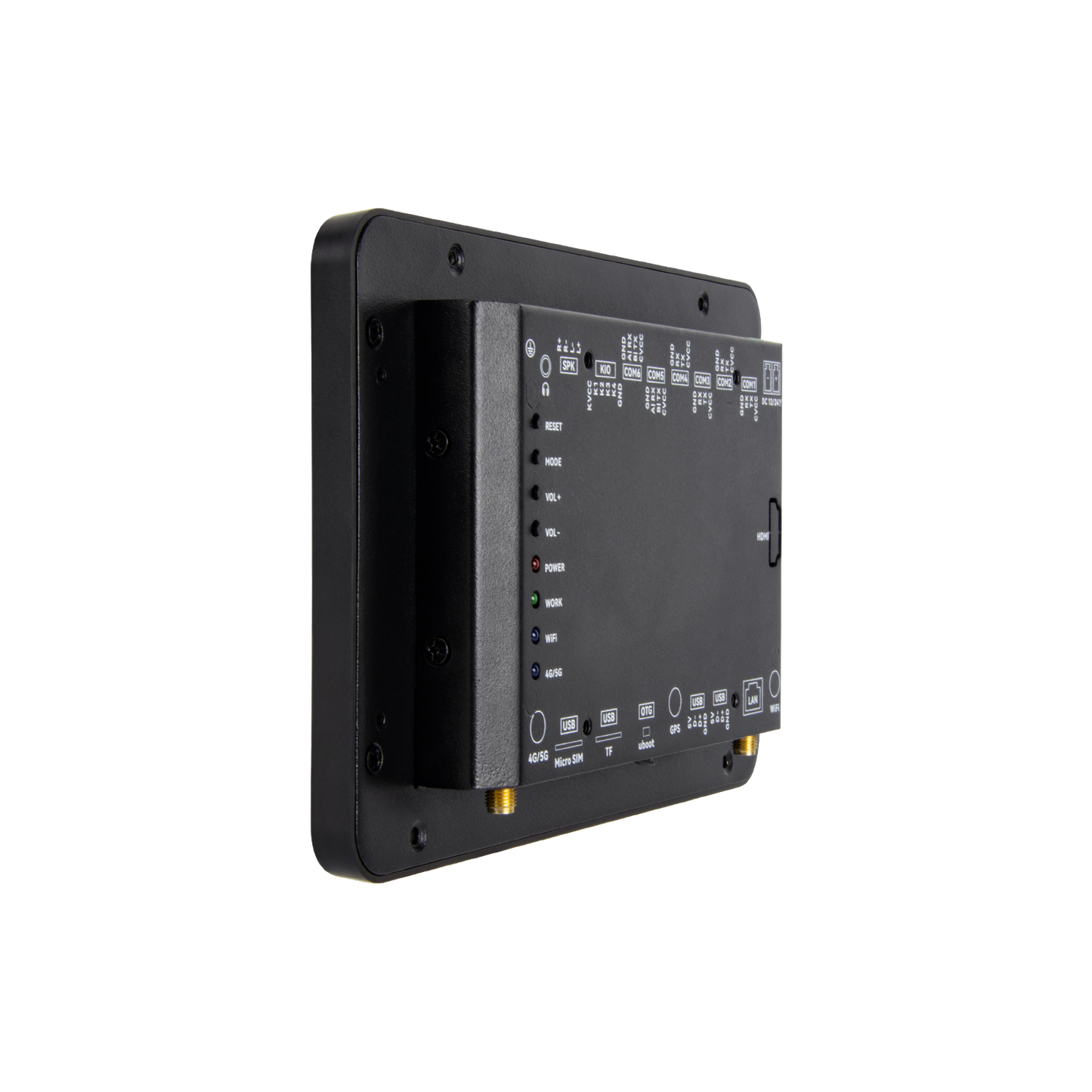

7 İnç RK3288 Android Endüstriyel HMI Panel PC – IPS LCD, Dayanıklı ABS Gövde

GeniusCore Embedded Systems "ControlHUB Series" Plastic Frame Multiport Panel PC

7" inch IPS Screen, All in One HMI Android Panel PC, RK3288 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485

Model: GFCX-A070M3288-2G16

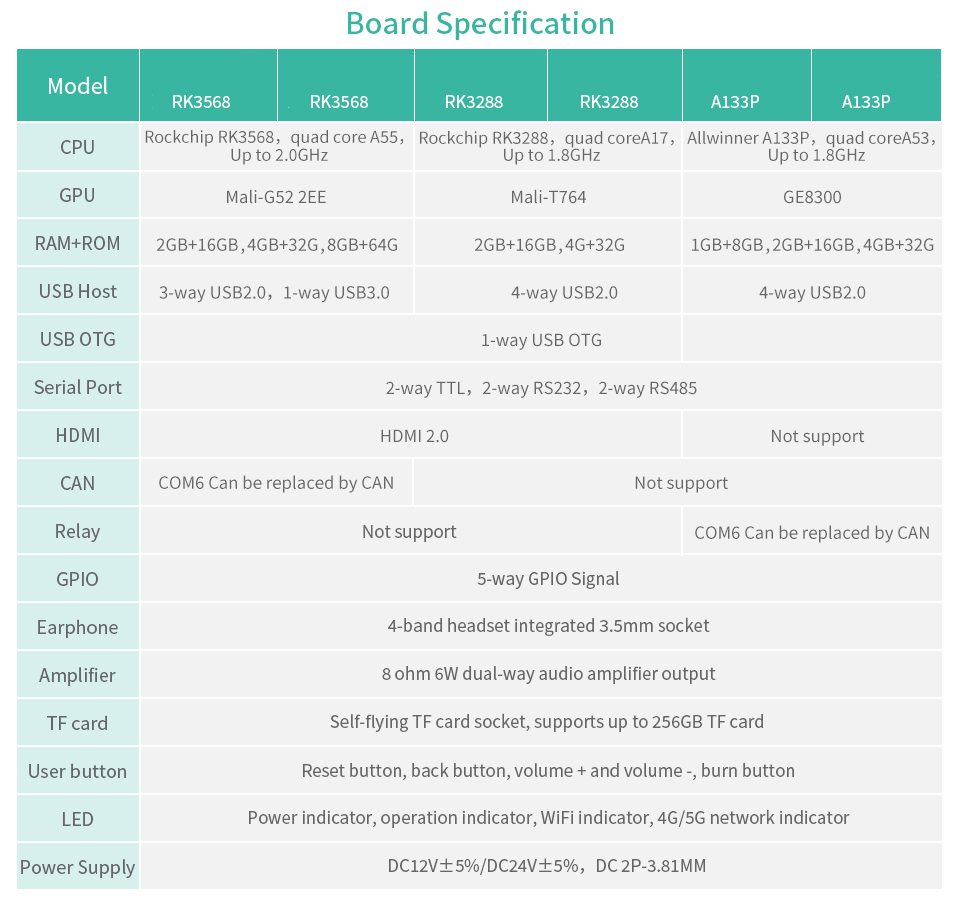

ControlHUB Plastic Frame RK3288 Standard Configuration:


- CPU: RK3288 2GB RAM 16GB ROM Quad Core A17, Up to 1.8GHz

- GPU: Mali-T764

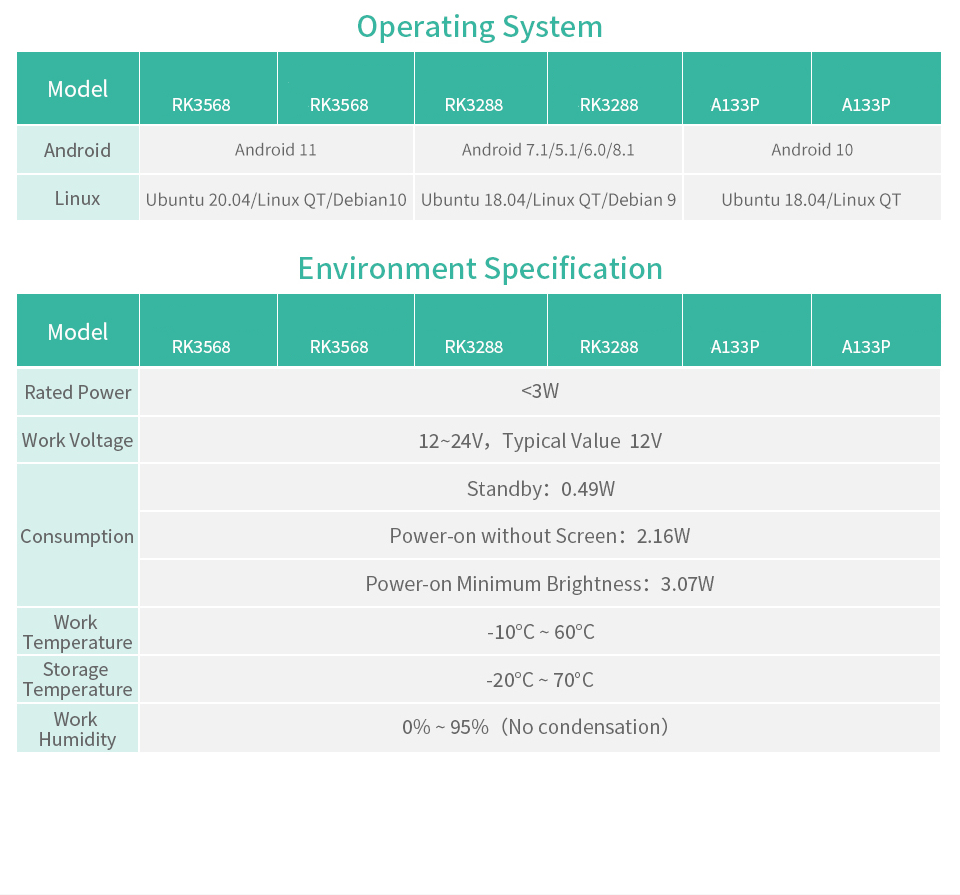

- Operating System: Android 7.1 / 5.1 / 6.0 / 8.1 / Ubuntu 18.04 / Linux QT / Debian 9

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G Optional)

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

- External Storage: Self-ejecting TF Card Up to 256GB /OTG

- Ethernet: 1000Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6 BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20，RG200U(5G)

- 1-way Micro SIM card slot

- GPIO: 5-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

- HDMI 2.0 Built in, supports Dual screen display

- GPS (Optional): EC800M, Supports dual positioning of Beidou and GPS

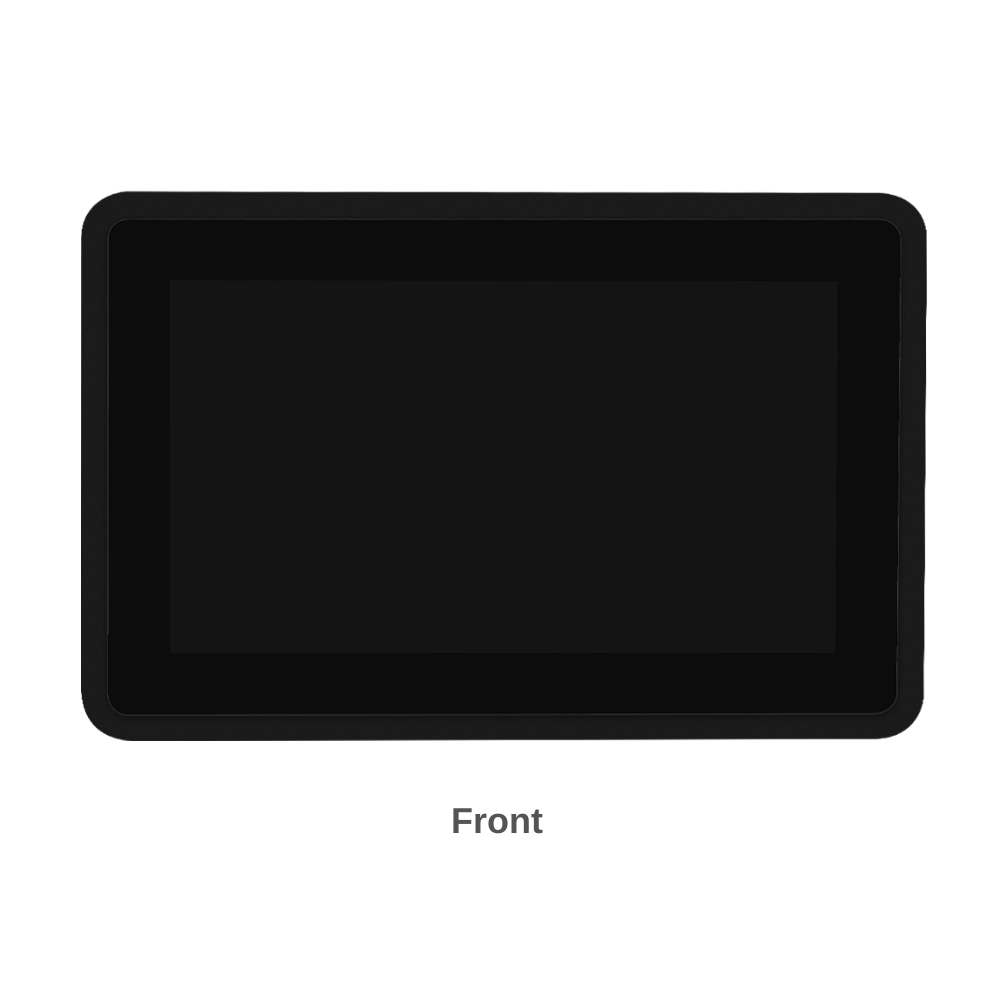

- Screen: 7 Inch, 1024*600 Pixel, IPS Capacitive LCD Panel, display scale 16:9

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

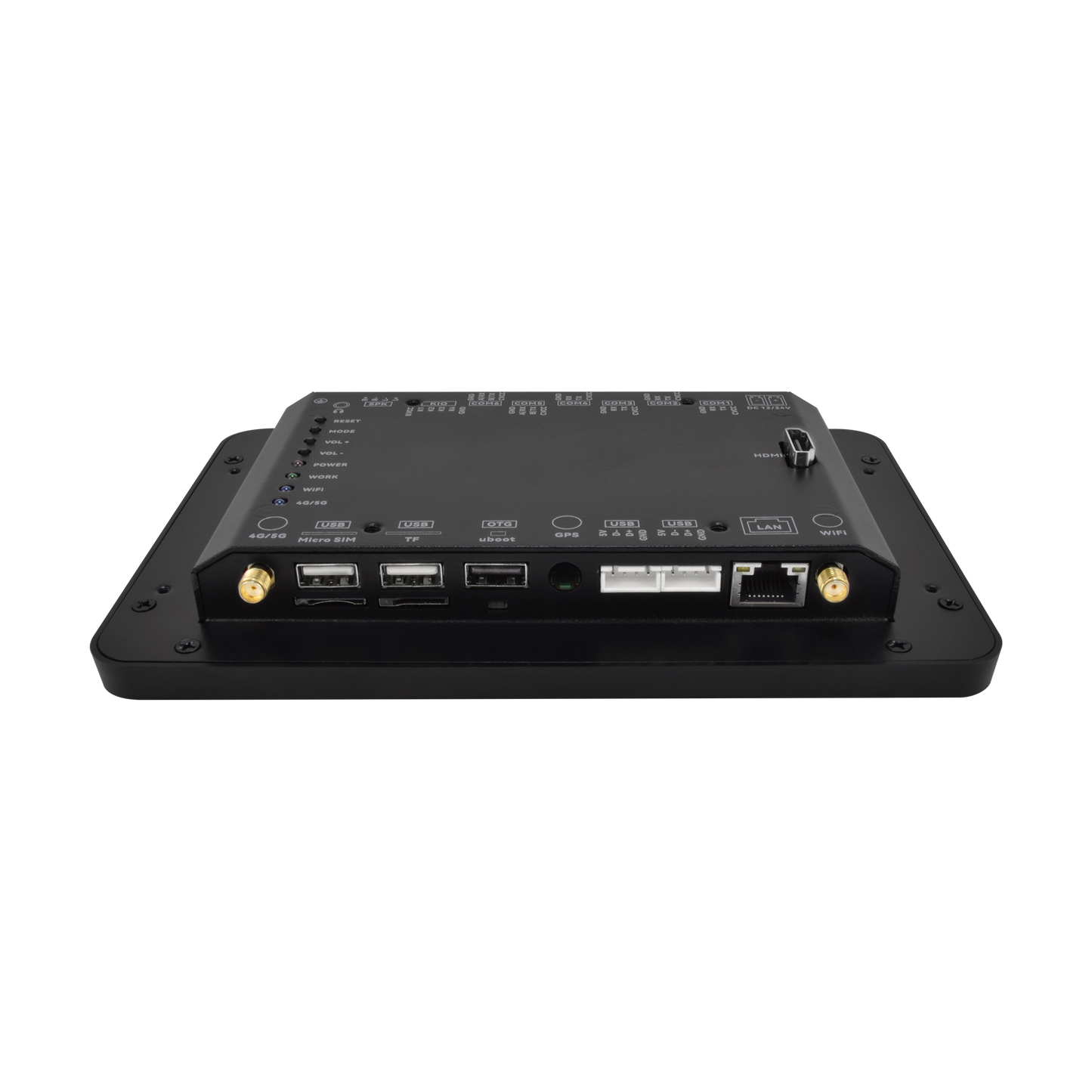

- USB: 4*USB 2.0, 1*USB OTG

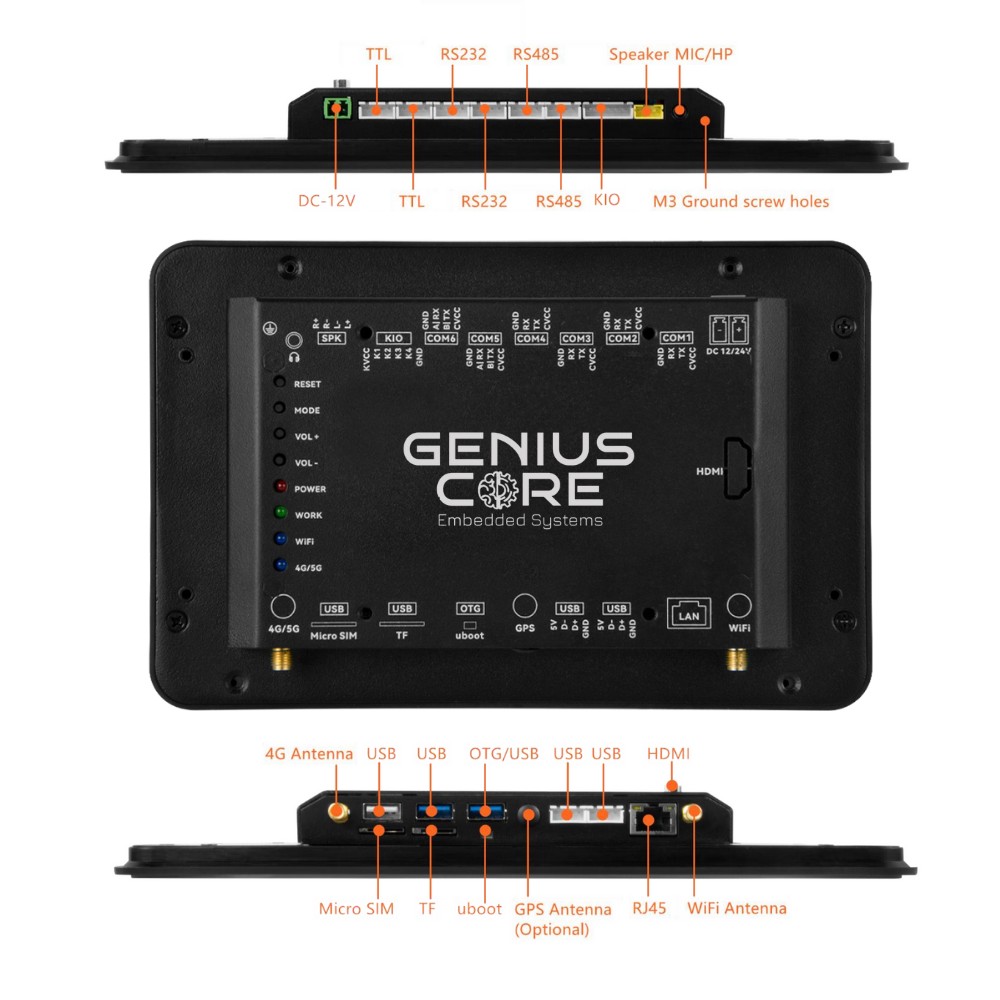

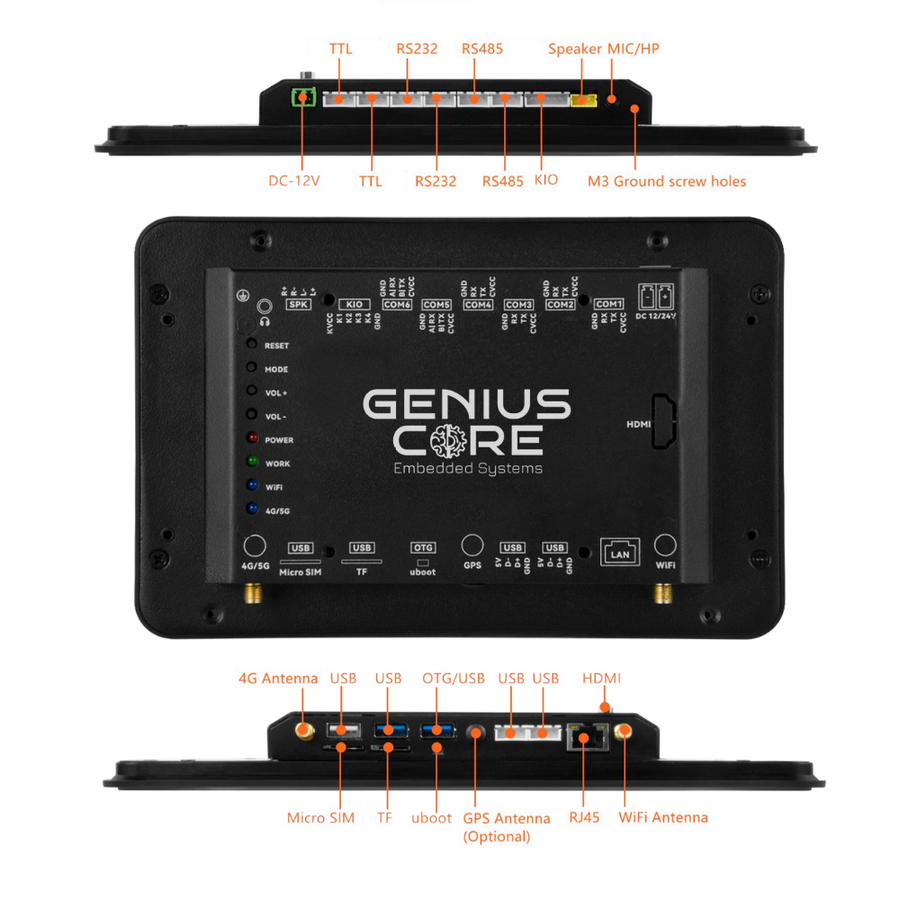

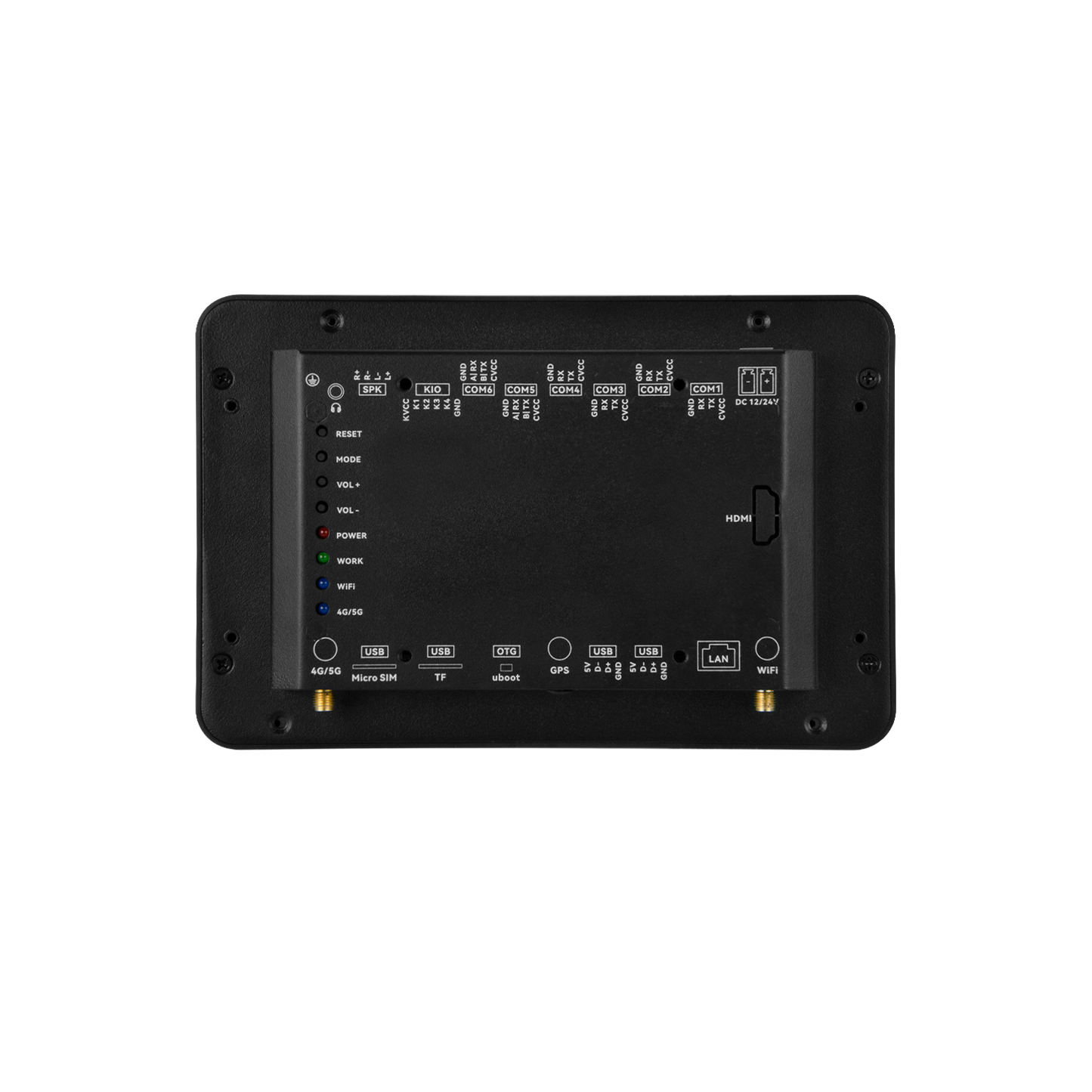

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485

- Reset button, back button, volume + and volume -, burn button

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

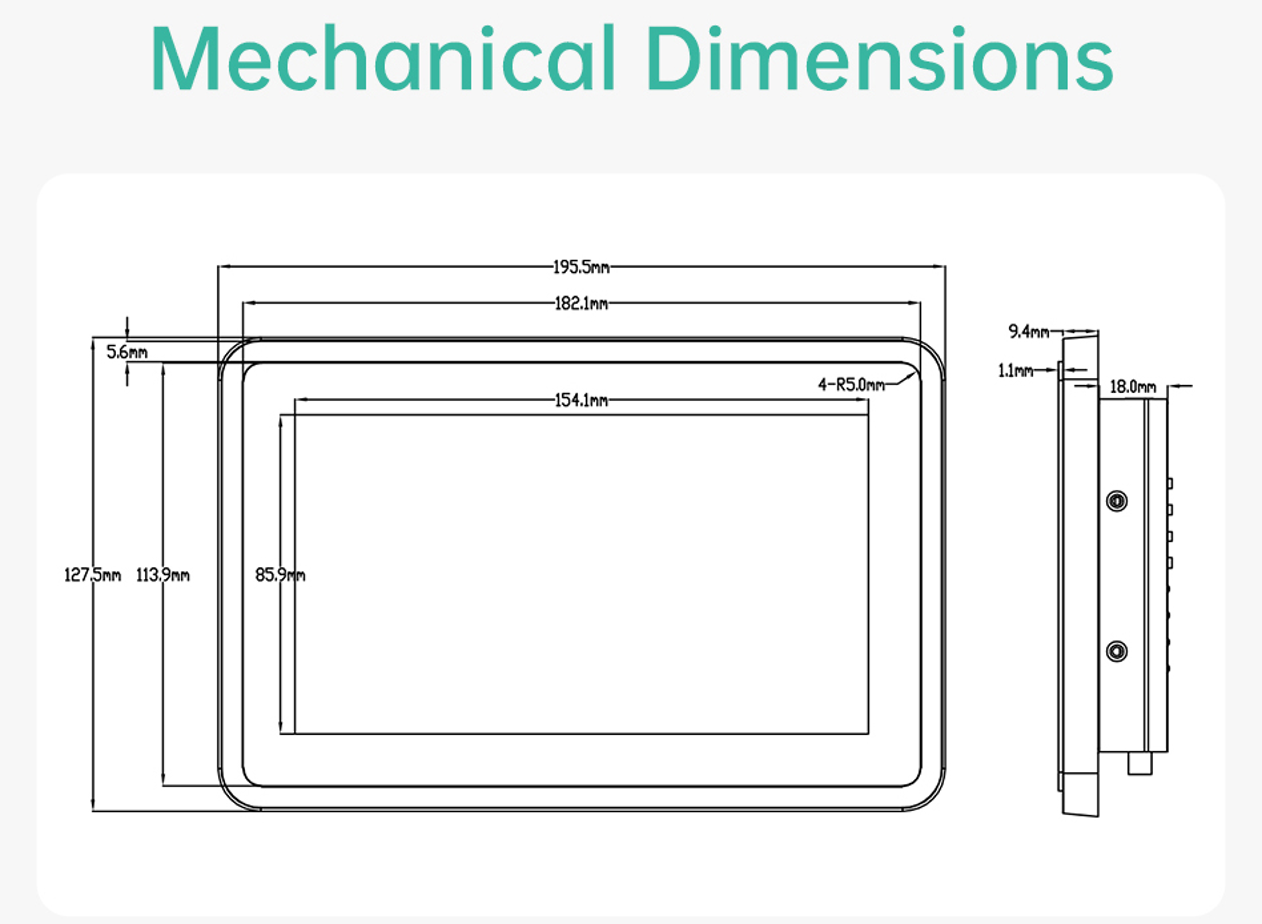

- Display Dimension: 85.9*154.1mm

- Overall Dimension:  124.5*192.5mm

- Operating System: Android 7.1 / 5.1 / 6.0 / 8.1 / Ubuntu 18.04 / Linux QT / Debian 9

- Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

- Weight: 0.8 kg, Package Weight: 0.95 kg

Optimized for High-Speed Data Processing in Industrial Settings

GeniusCore ControlHUB Plastic Frame- 7 Inch Rockchip RK3288 Model combines high-speed processing with seamless connectivity, ideal for intensive industrial and IoT applications. Featuring the Rockchip RK3288 4-Core A17 processor clocked up to 1.8GHz and Mali-T764 GPU, this model is engineered for fast data processing. Available in 2GB+16GB and 4GB+32GB configurations, it provides sufficient memory and storage for demanding tasks.

The 7-inch 800x1280 IPS display with 5-point capacitive touch offers vibrant visuals and responsive control, essential for real-time monitoring. The IP65-rated plastic frame adds durability, while 1000Mbps Ethernet and HDMI 2.0 ensure high-speed connectivity and flexible display options. Although it lacks access control, this model includes configurable 6 COM serial ports to expand connectivity options.

With support for Android 7.1/5.1/6.0/8.1 (and optional Ubuntu 18.04/Debian 9), it adapts to various software needs, making it versatile for different industrial applications. Additional features like optional 4G/5G, single-frequency WiFi 6 (optional dual-frequency), and GPS with dual positioning make it suitable for mobile and IoT environments. With a wide voltage input range and 3-year warranty, the RK3288 Model in the ControlHUB Series is perfect for industrial automation, fleet management, and smart infrastructure.
