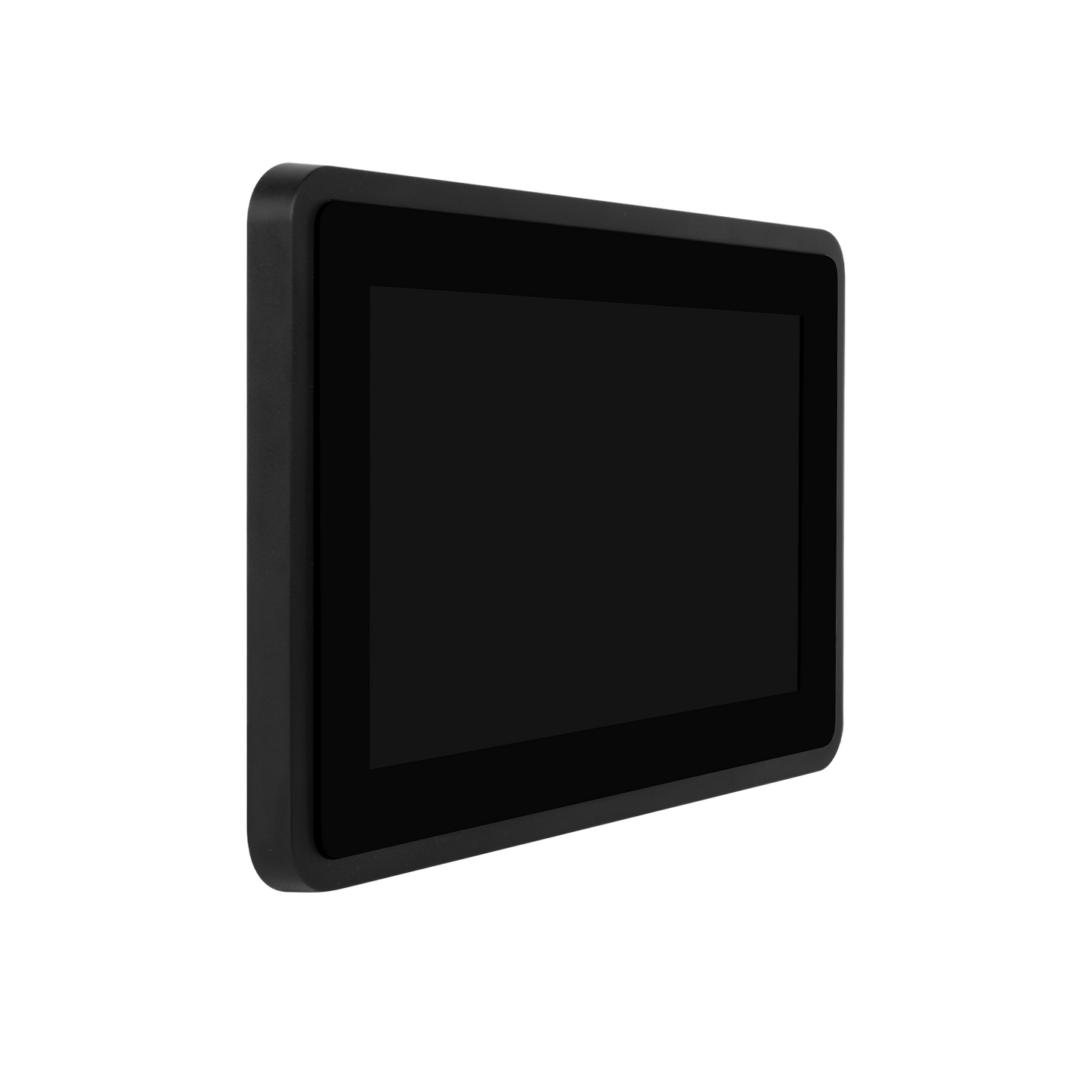

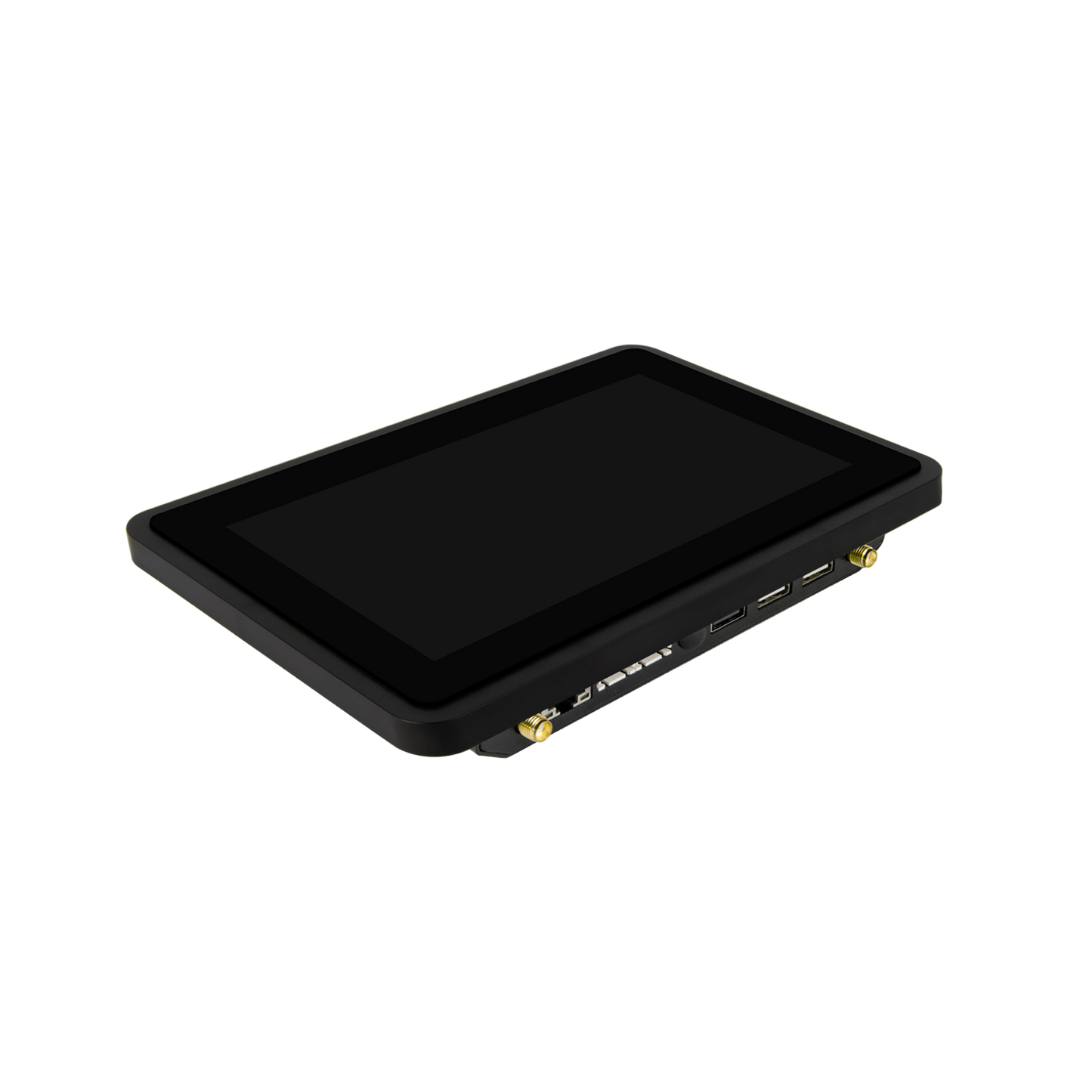

7 İnç A133P Android Endüstriyel HMI Panel PC – IPS LCD, Dayanıklı ABS Gövde

GeniusCore Embedded Systems "ControlHUB Series" Plastic Frame Multiport Panel PC

7" inch IPS Screen, All in One HMI Android Panel PC, A133P 1G RAM 8G ROM, Built in GPIO, Configurable 6COM 2*TTL, 2*RS232, 2*RS485, Optional Relay

Model: GFCX-A070M133P-1G08

ControlHUB Plastic Frame Allwinner A133P Standard Configuration:

- CPU and GPU: Allwinner A133P A53, Up to 1.8GHz, GE8300

- RAM and ROM Options: 1GB + 8GB, 2GB+16GB,  4GB + 32GB

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

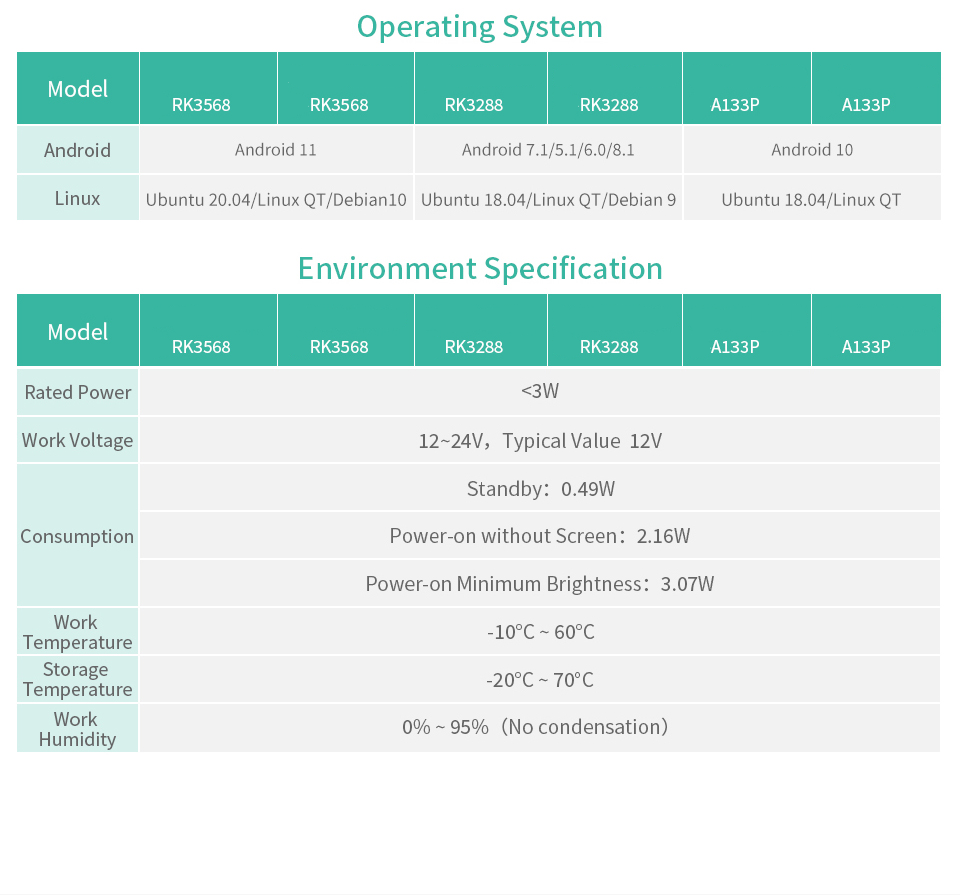

- Operating System: Android 10 / Ubuntu 18.04 / Linux QT

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G, 8G+64G Optional)

- External Storage: Self-ejecting TF Card Up to 256GB

- Ethernet: 100Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6 BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20，RG200U(5G)

- 1-way Micro SIM card slot

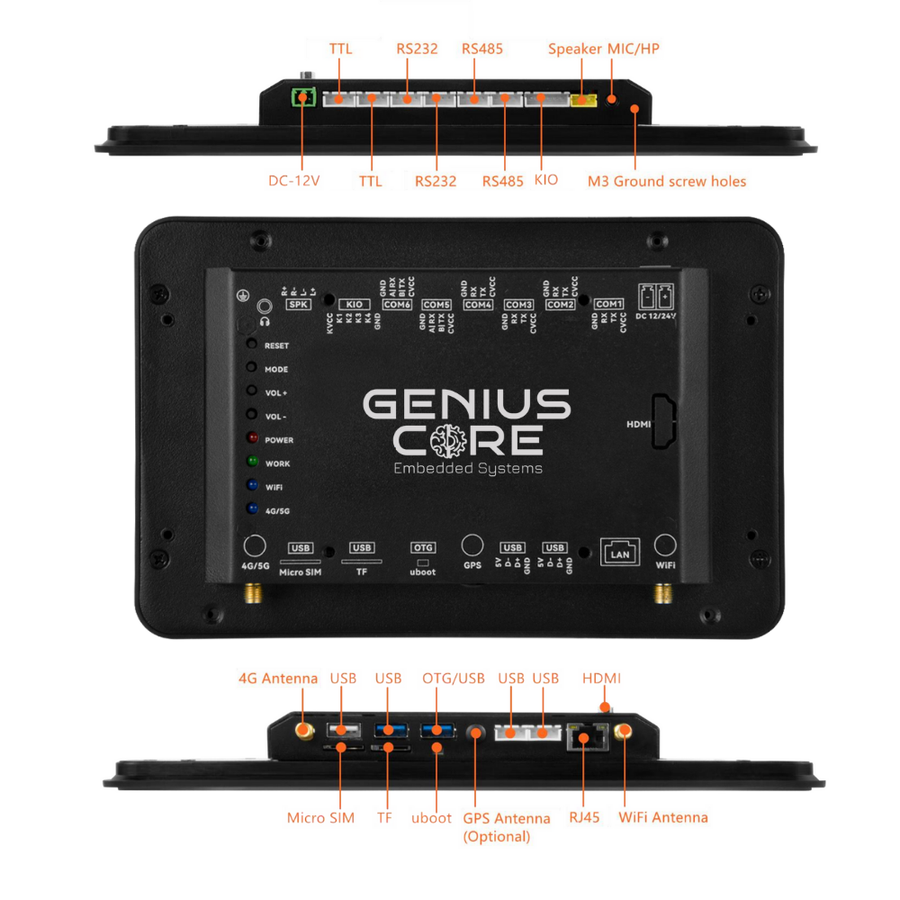

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485 (COM6 Can be replaced by Relay)

- CAN (Optional): COM6 can be configured as CAN

- USB: 1*USB3.0 , 3*USB2.0 , 1*USB3.0 OTG

- GPIO: 5-way GPIO Signal

- HDMI: No Support

- GPS (Optional): EC800M，Supports dual positioning of Beidou and GPS

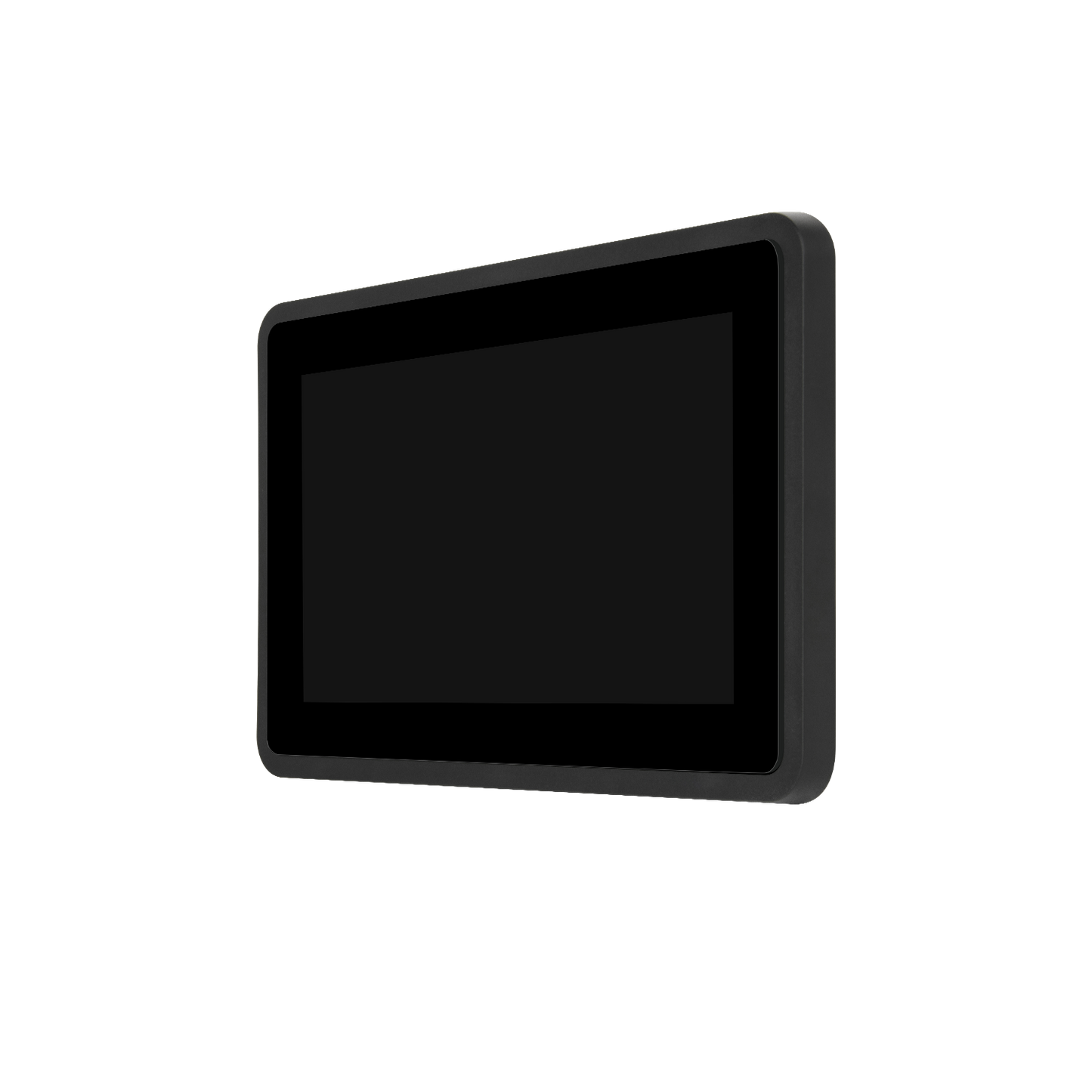

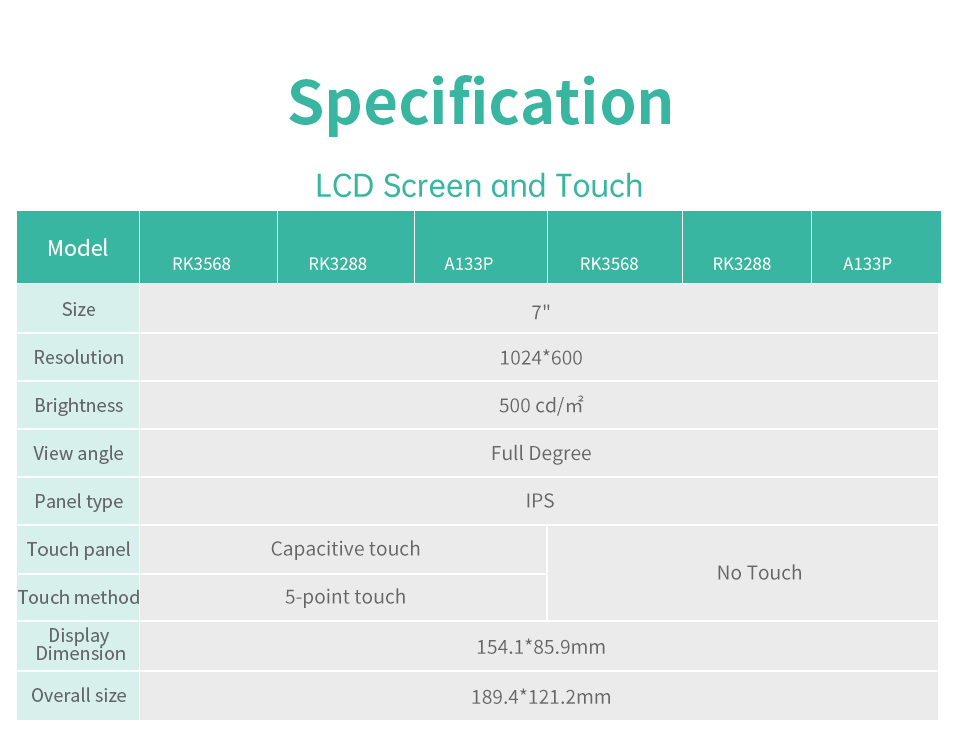

- Screen: 7" inch, 1024*600 Pixel, IPS Capacitive LCD Panel, IP65

- Glass Thickness: 1.8mm

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

- Buttons: Reset button, back button, volume + and volume -, burn button

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier: 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

- Power: DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

- Working Voltage: 9-24V, typical value 12V

- Working Temperature:-10°C-60°C  Storage Temperature: -20°C-70°C

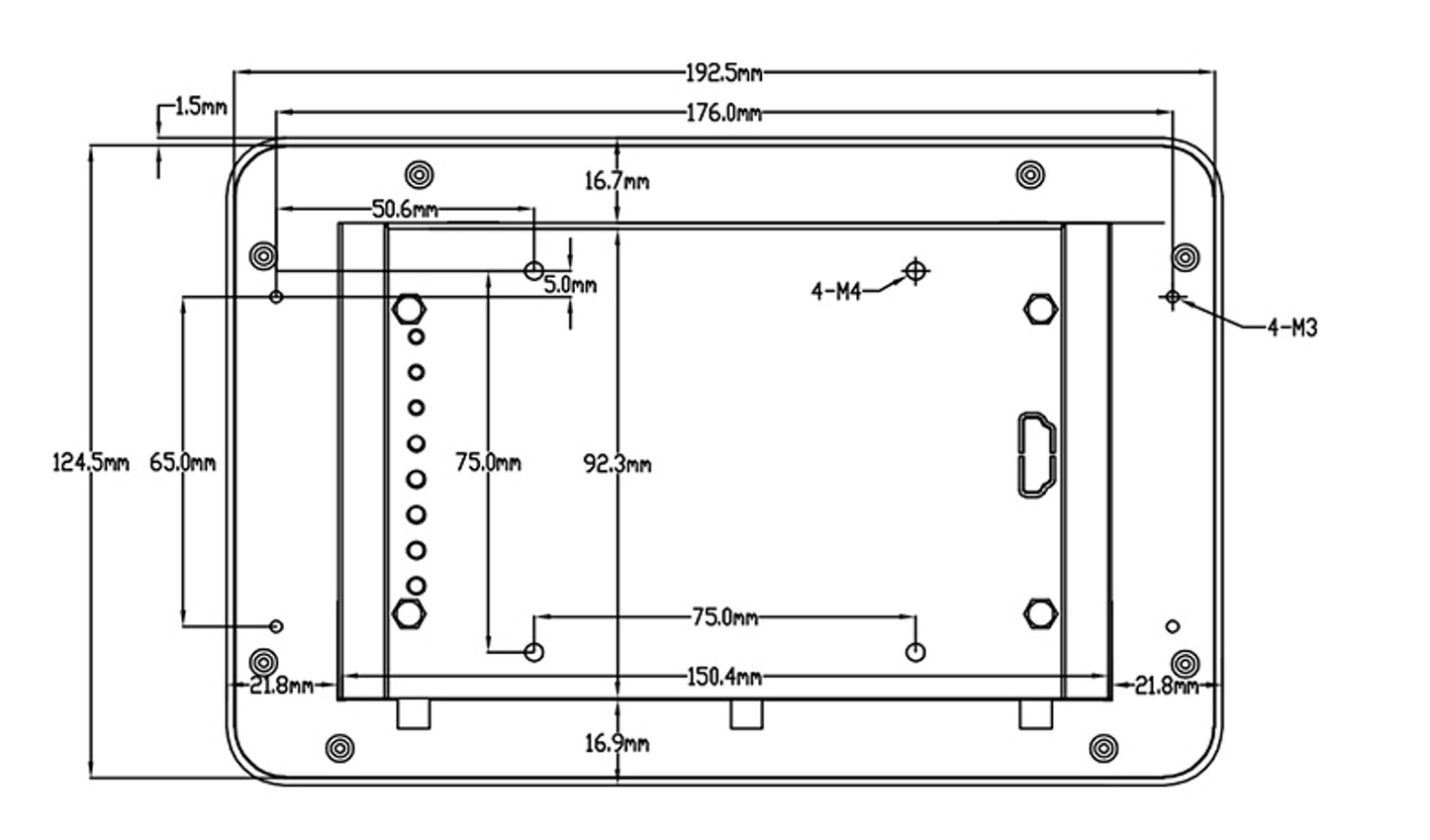

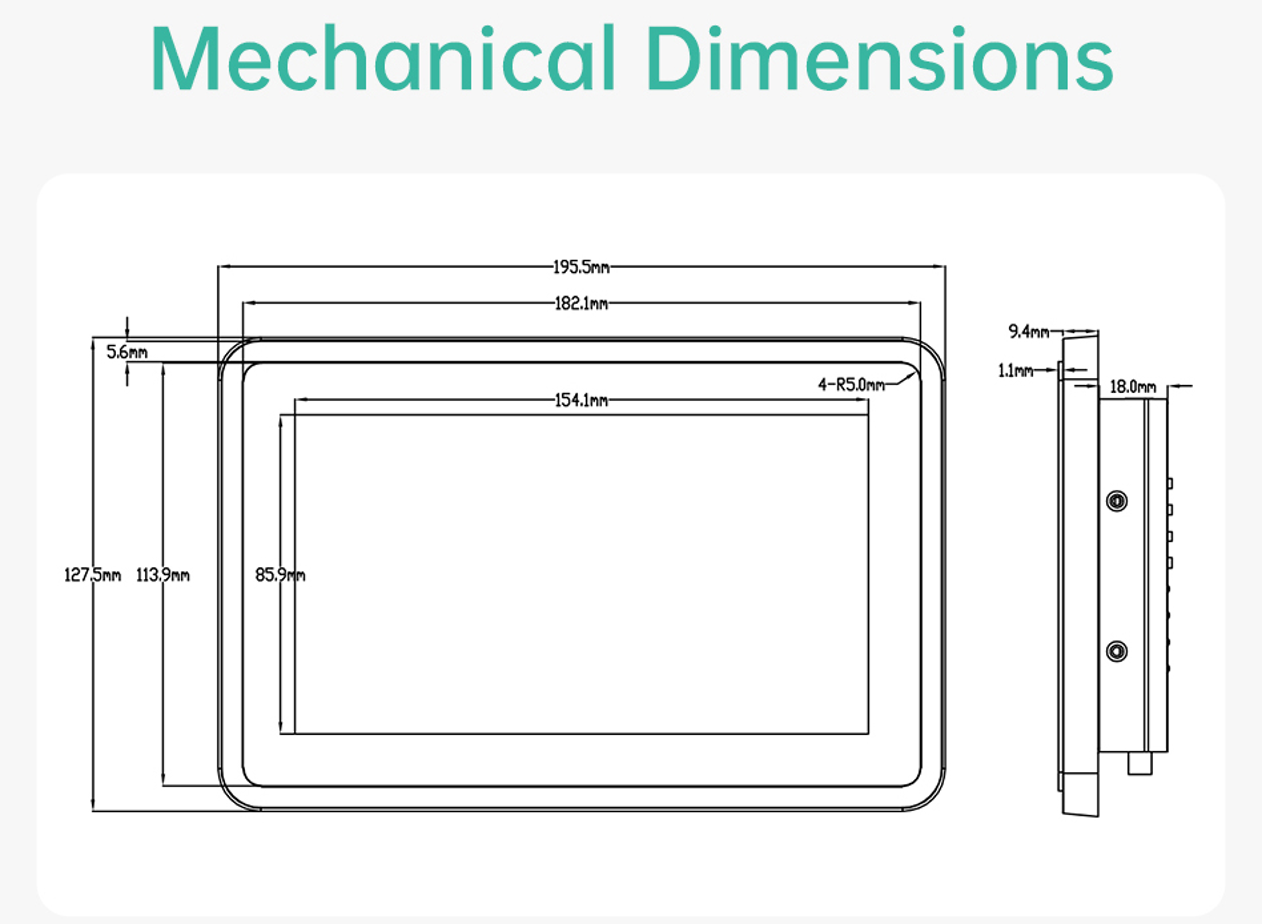

- Display Area: 154.1 * 85.9 mm

- Overall Dimension: 195.5 * 127.5 mm

- Weight: 0.8 kg, Package Weight: 0.95 kg

Unlock Seamless Connectivity and Control with the Genova FlexCOM Control Hub Plastic

The GeniusCore Control Hub Plastic Frame - 7-Inch A133P Model is designed for industrial and IoT applications, offering robust functionality in a lightweight and durable build. Powered by the Allwinner A133P 4-Core A53 processor clocked up to 1.8GHz and equipped with the GE8300 GPU, this model provides efficient performance for various monitoring and control tasks. Available in 1GB+8GB, 2GB+16GB, and 4GB+32GB configurations, it meets different operational needs with ease.

Featuring a 7-inch 800x1280 IPS display with 5-point capacitive touch, this model provides clear visuals and smooth interaction. The IP65-rated plastic frame ensures protection against dust and water, making it suitable for challenging environments. Equipped with 100Mbps Ethernet, optional COM and Uart6 serial ports, and various I/O options, it integrates seamlessly into existing systems. While HDMI support is unavailable, this model includes 2 USB sockets, 2 USB hosts, and 1 USB OTG socket for flexible peripheral connections.

Running on Android 10 (with optional Ubuntu 18.04/Linux QT), the A133P model supports versatile software environments. Optional 4G/5G, single-frequency WiFi 6 (with optional dual-frequency), and GPS with dual positioning provide additional connectivity, enhancing its suitability for remote monitoring and IoT applications. With DC12V ± 5%/DC24V ± 5% power input and a 3-year warranty, the GeniusCore ControlHUB A133P Model is a reliable choice for industrial automation and infrastructure management.
