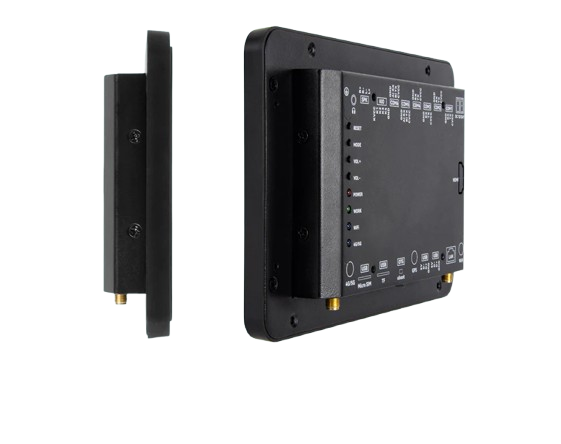

10.1 İnç RK3288 Android Endüstriyel HMI Panel PC – IPS LCD, Dayanıklı ABS Gövde

GeniusCore Embedded Systems "ControlHUB Series" Plastic Frame Multiport Panel PC

10.1" inch IPS Screen, All in One HMI Android Panel PC, RK3288 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485

Model: GFCX-A101M3288-2G16

ControlHUB Plastic RK3288 Standard Configuration:

- CPU: RK3288 2GB RAM 16GB ROM

- GPU: Mali-T764

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G Optional)

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

- External Storage: Support TF Card/OTG

- TF Card: Self-elastic TF Card Socket, Supports Up to 256GB TF Card

- Ethernet: 1000Mbps

- Wifi: default Single-frequency (WIfi 6 dual frequency optional)

- 4G/5G Optional: EC800M/EC600/EC20，RG200U(5G)

- 1-way Micro SIM card slot

- HDMI 2.0 Built in

- GPS (Optional): EC800M，Supports dual positioning of Beidou and GPS

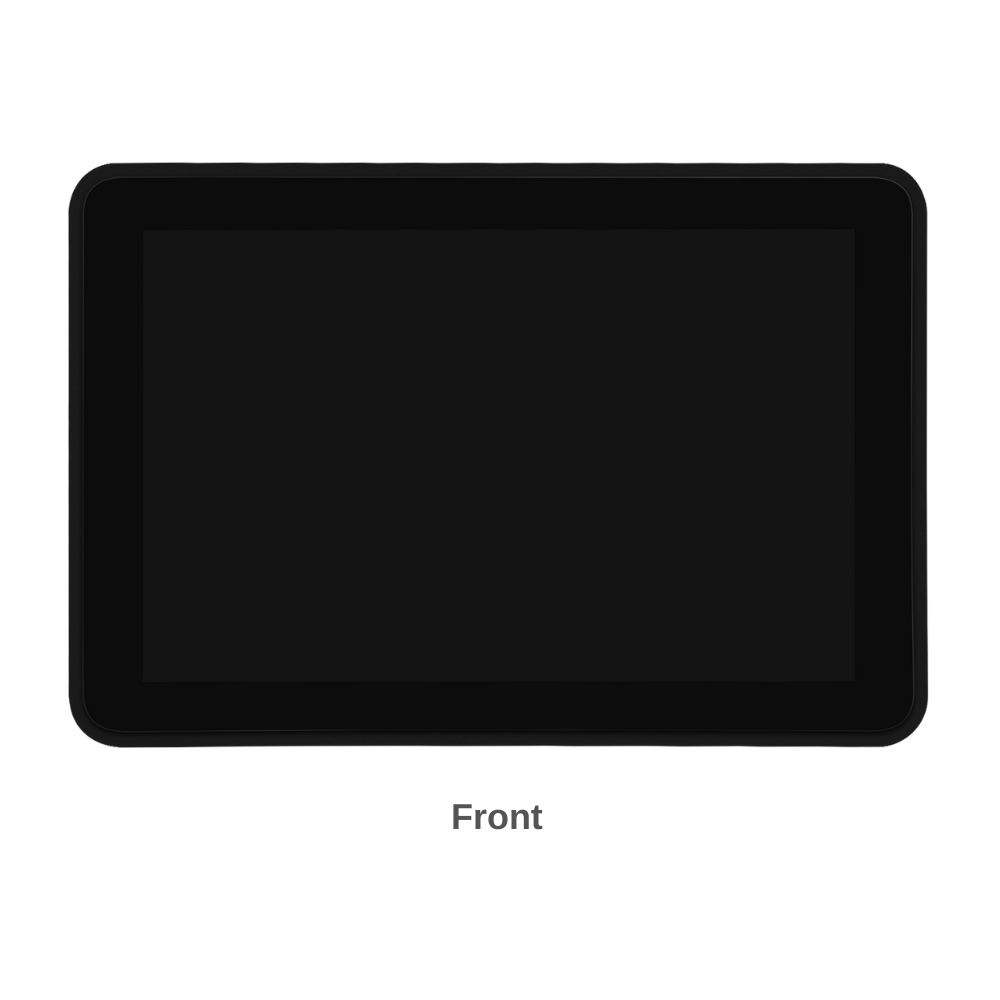

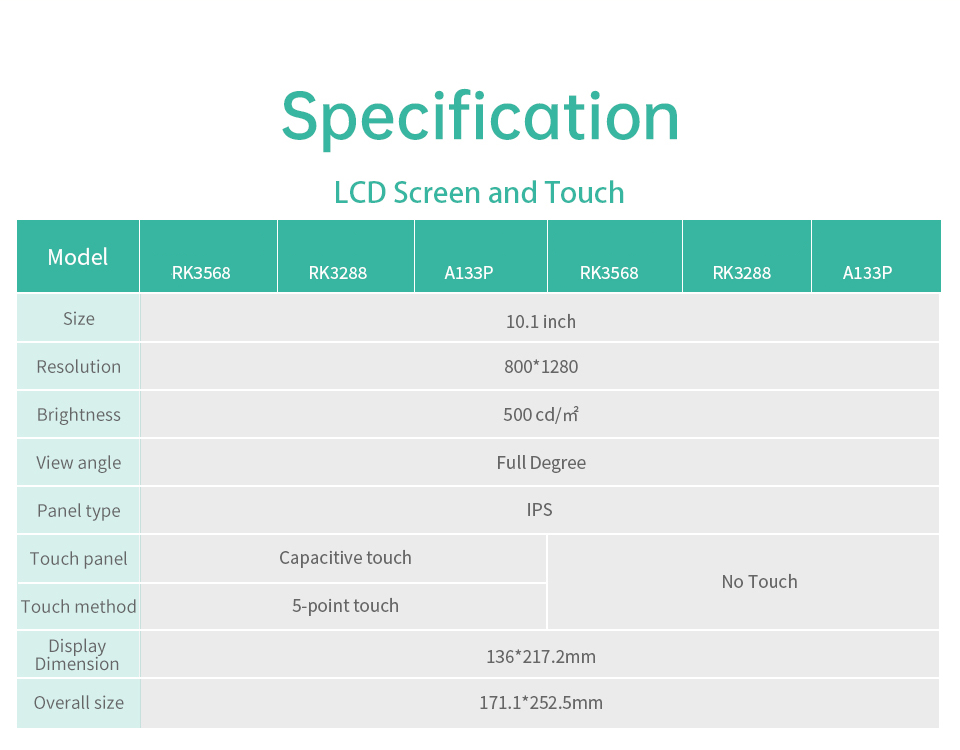

- Screen: 10.1 Inch, 800*1280 Pixel, IPS Capacitive LCD Panel, display scale 5:8

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

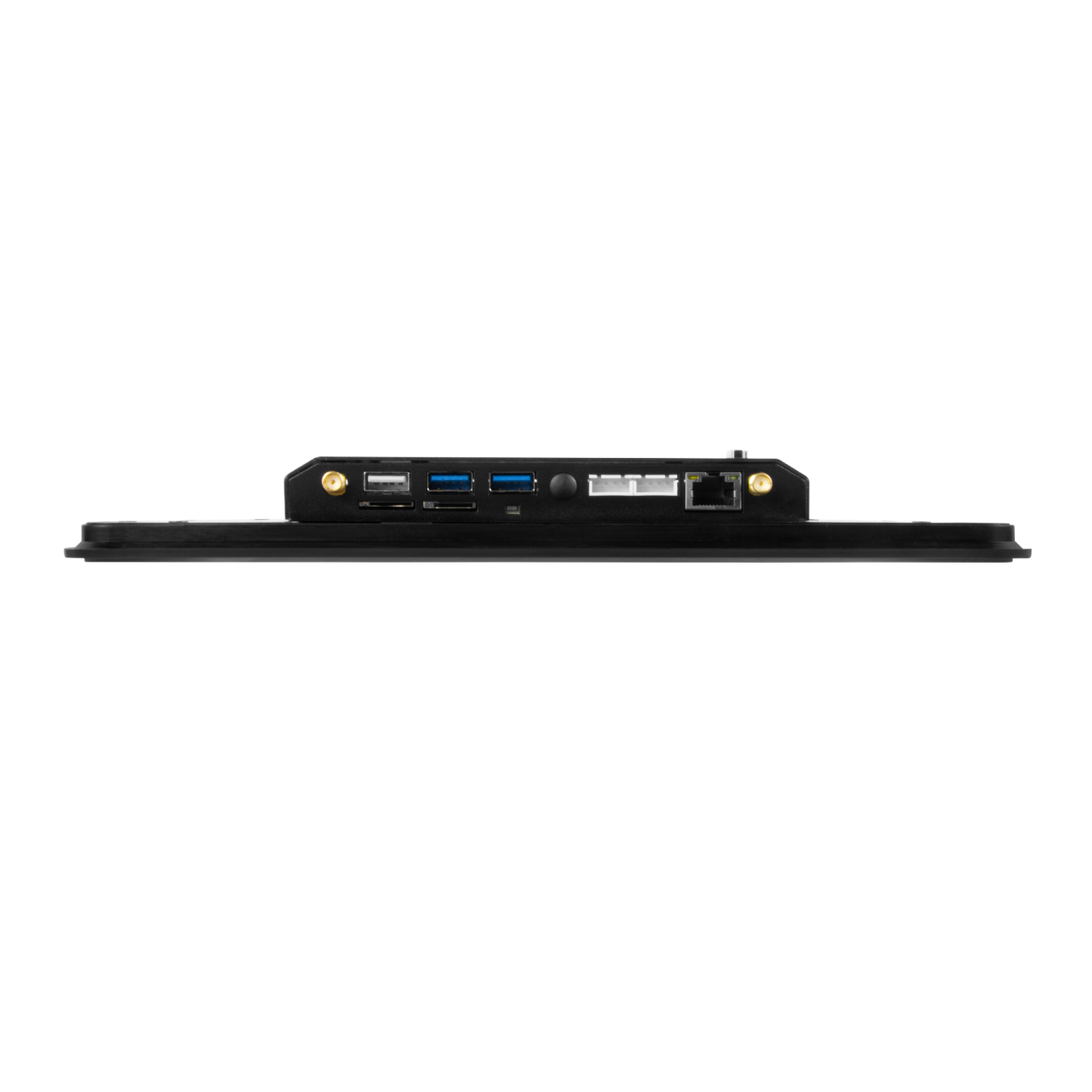

- USB: 2-way USB 2.0 socket,1-way USB OTG socket, 2-way USB hosts

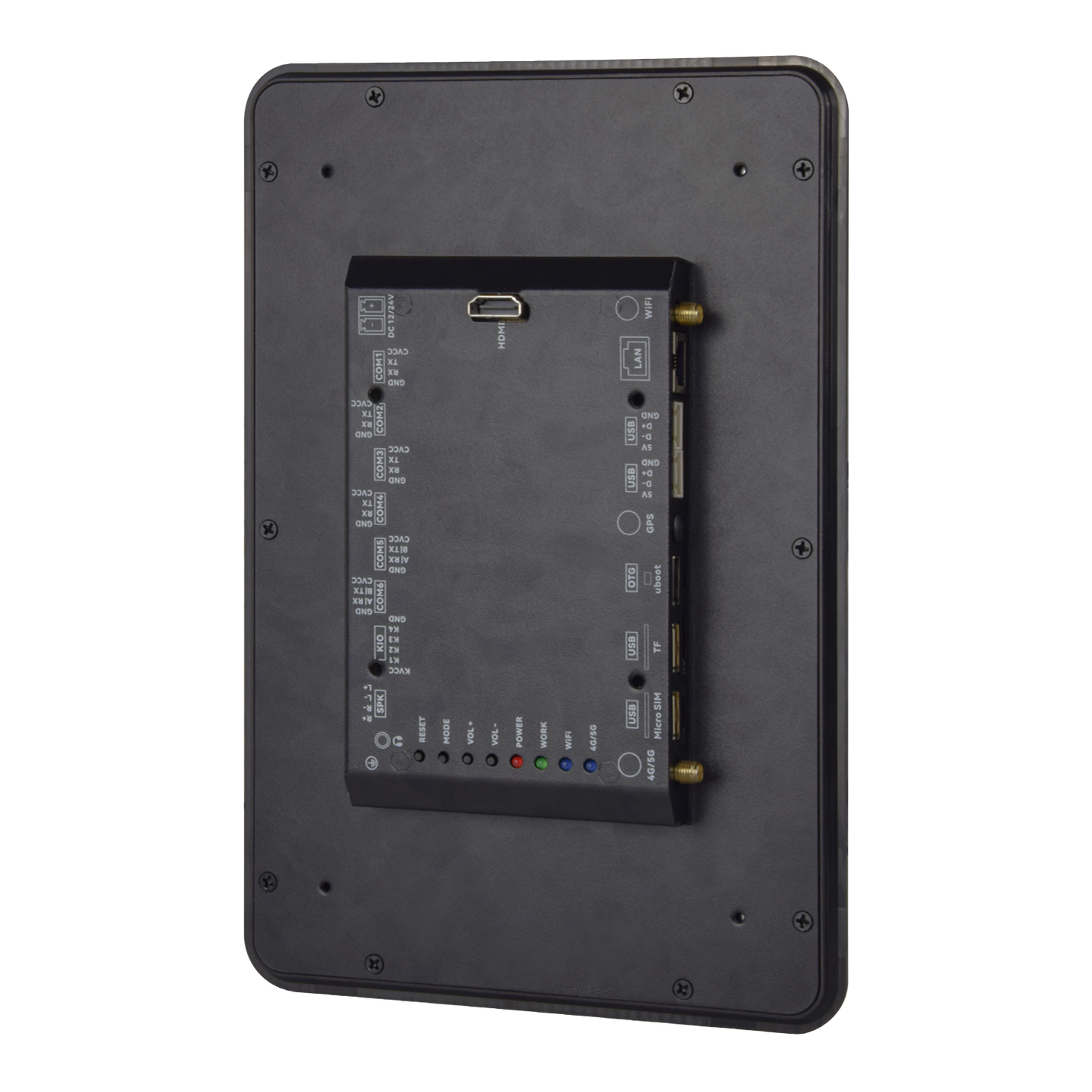

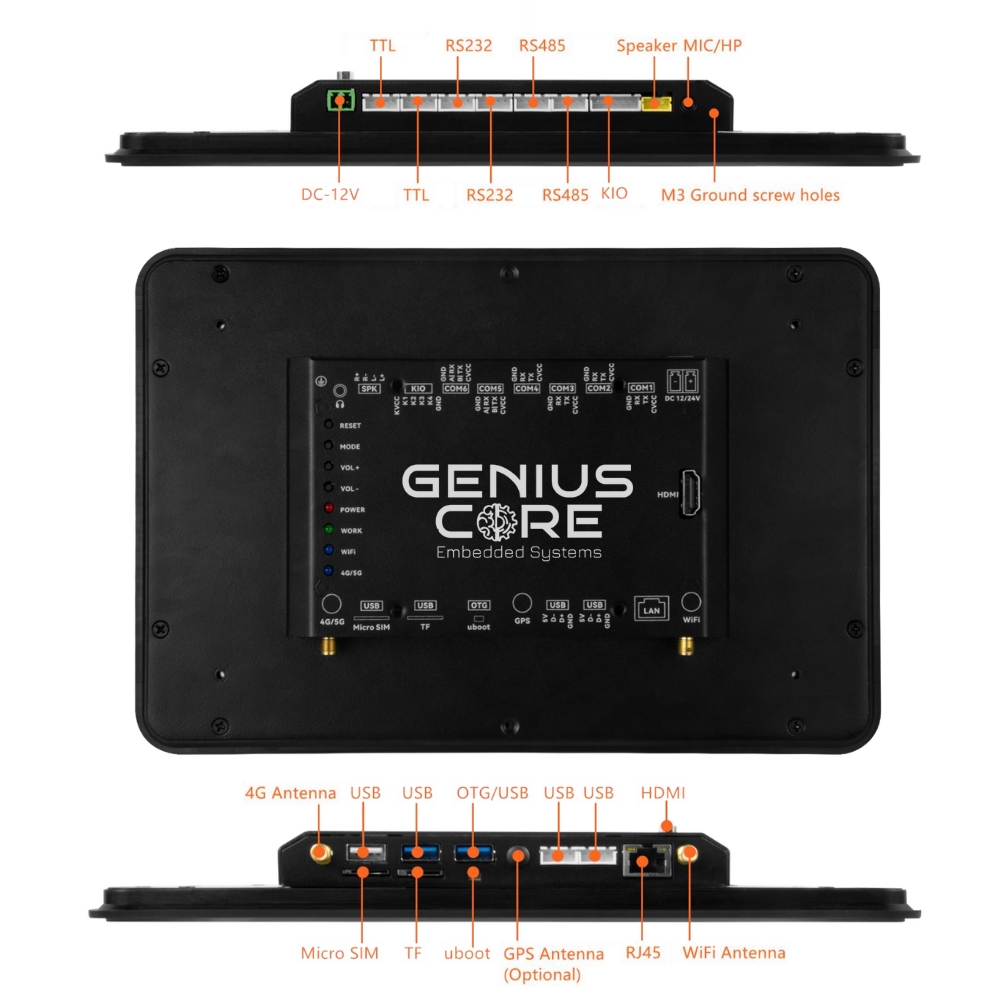

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485

- 5-way GPIO Signal

- Reset button, back button, volume + and volume -, burn button

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

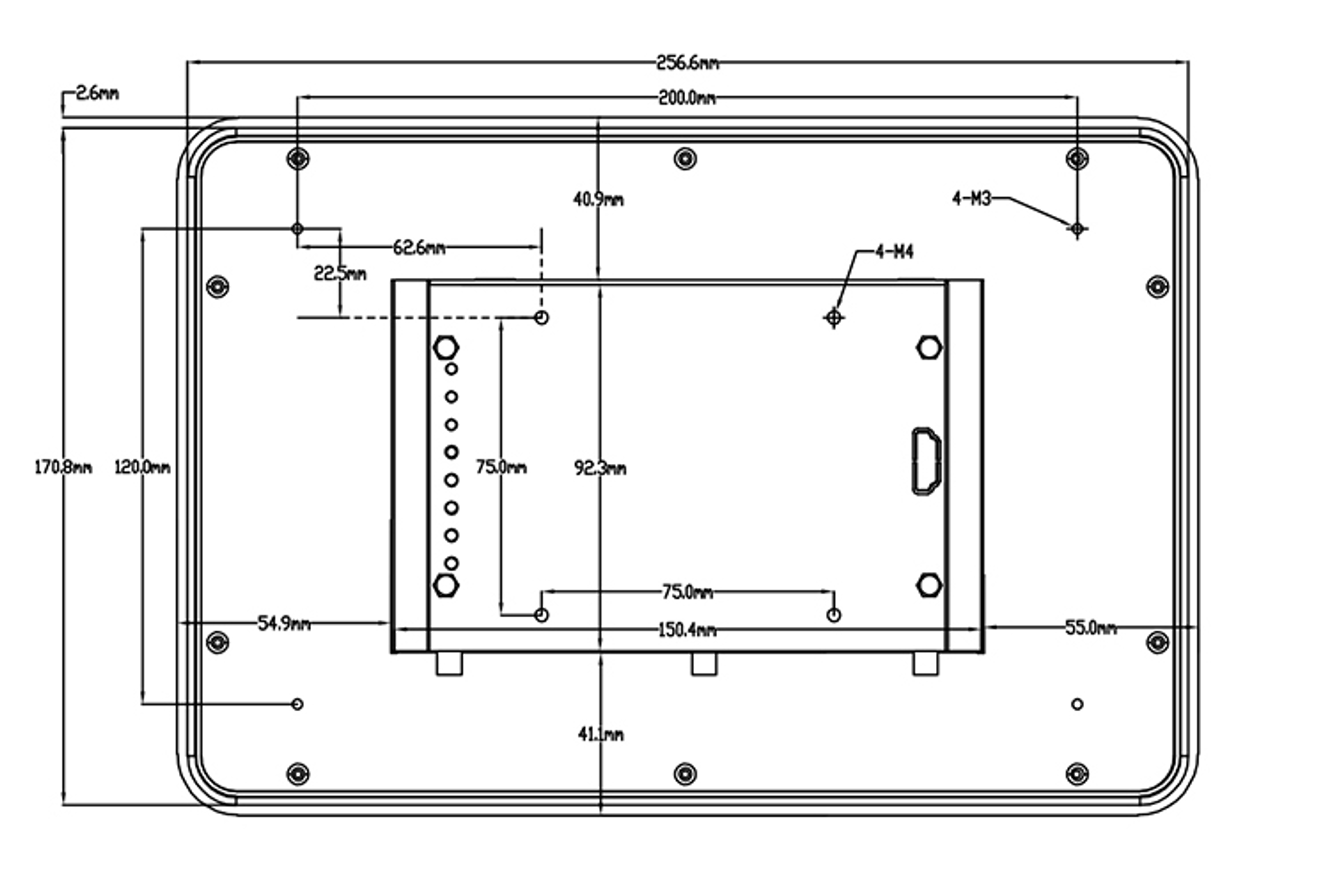

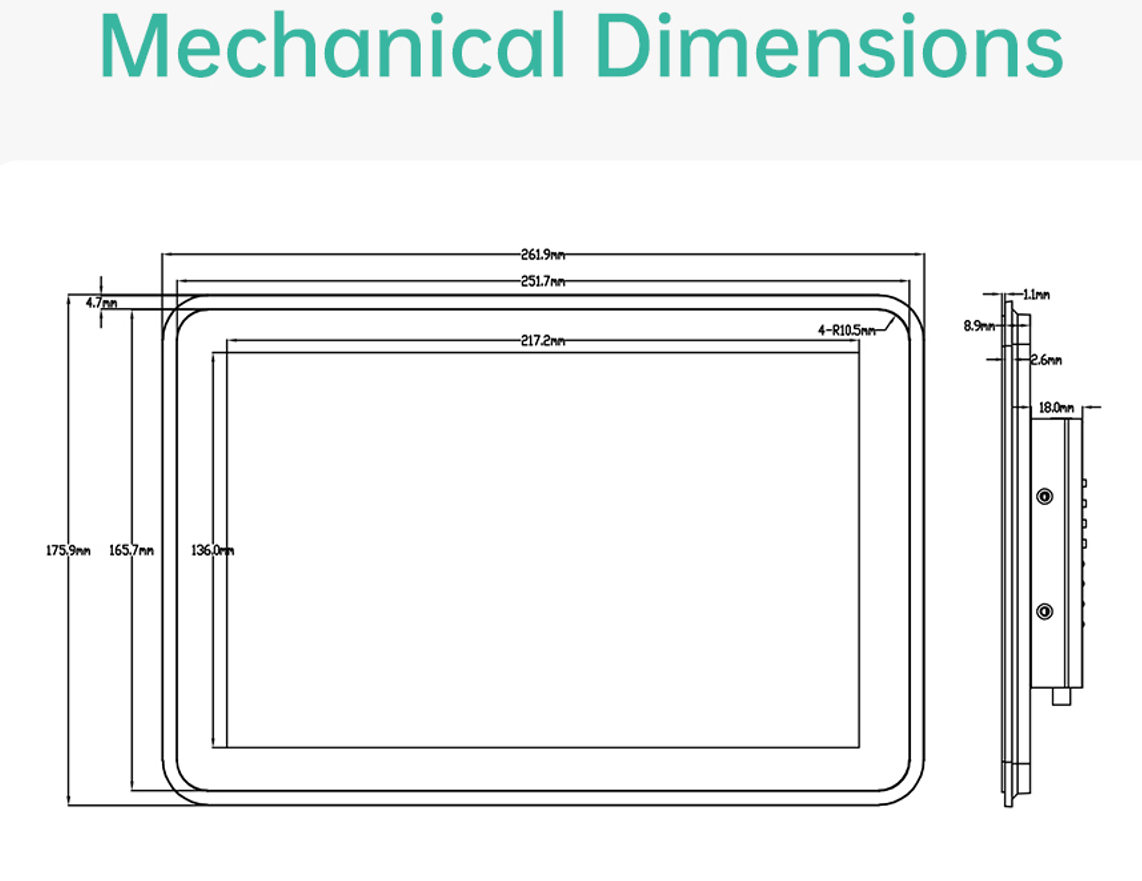

- Display Dimension: 136*217.2mm

- Overall Dimension:  171.1*252.5mm

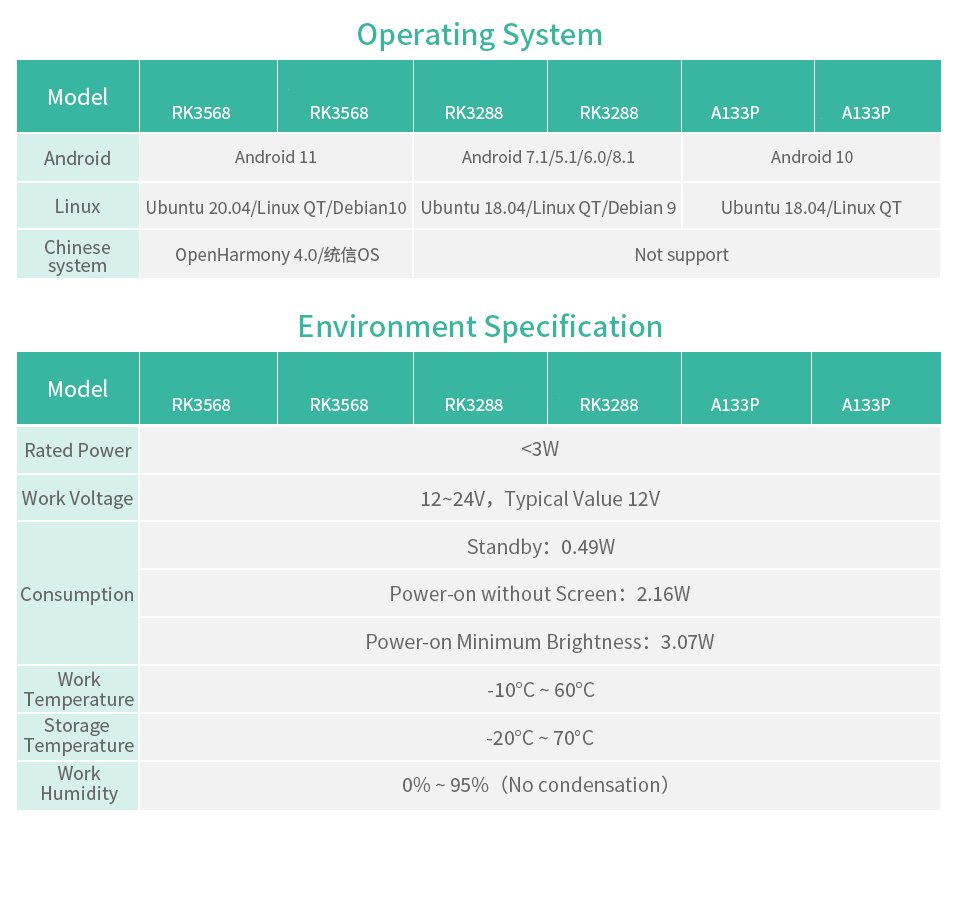

- Operating System: Android 7.1 / 5.1 / 6.0 / 8.1 / Ubuntu 18.04 / Linux QT / Debian 9

- Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

Optimized for High-Speed Data Processing in Industrial Environments

GeniusCore Control Hub Plastic Frame - 10.1 Inch Rockchip RK3288 Model is built for high-speed processing and seamless integration, making it ideal for intensive industrial and IoT applications. Powered by the Rockchip RK3288 4-Core A17 processor clocked up to 1.8GHz and Mali-T764 GPU, this model is engineered for efficient data handling. Available in 2GB+16GB and 4GB+32GB memory and storage configurations, it supports various operational needs.

The 10.1-inch 800x1280 IPS display with 5-point capacitive touch provides a larger, clearer viewing area, essential for detailed monitoring and real-time control. The IP65-rated plastic frame ensures durability, while 1000Mbps Ethernet and HDMI 2.0 enable high-speed connectivity and flexible display options. While access control is not supported, configurable 6 COM serial ports expand its integration capabilities.

Supporting Android 7.1/5.1/6.0/8.1 (with optional Ubuntu 18.04/Debian 9), this model adapts to various software environments. Additional features like optional 4G/5G, single-frequency WiFi 6 (optional dual-frequency), and GPS with dual positioning make it suitable for mobile and IoT applications. With power input flexibility and a 3-year warranty, the RK3288 Model in the ControlHUB 10.1-inch Series is perfect for automation, fleet management, and smart infrastructure.
