10.1 İnç A133P Android Endüstriyel HMI Panel PC – IPS LCD, Dayanıklı ABS Gövde

GeniusCore Embedded Systems "ControlHUB Series" Plastic Frame Multiport Panel PC

10.1" inch IPS Screen, All in One HMI Android Panel PC, A133P 1G RAM 8G ROM, Built in GPIO, Configurable 6COM 2*TTL, 2*RS232, 2*RS485, Optional Relay

Model: GFCX-A101M133P-1G08

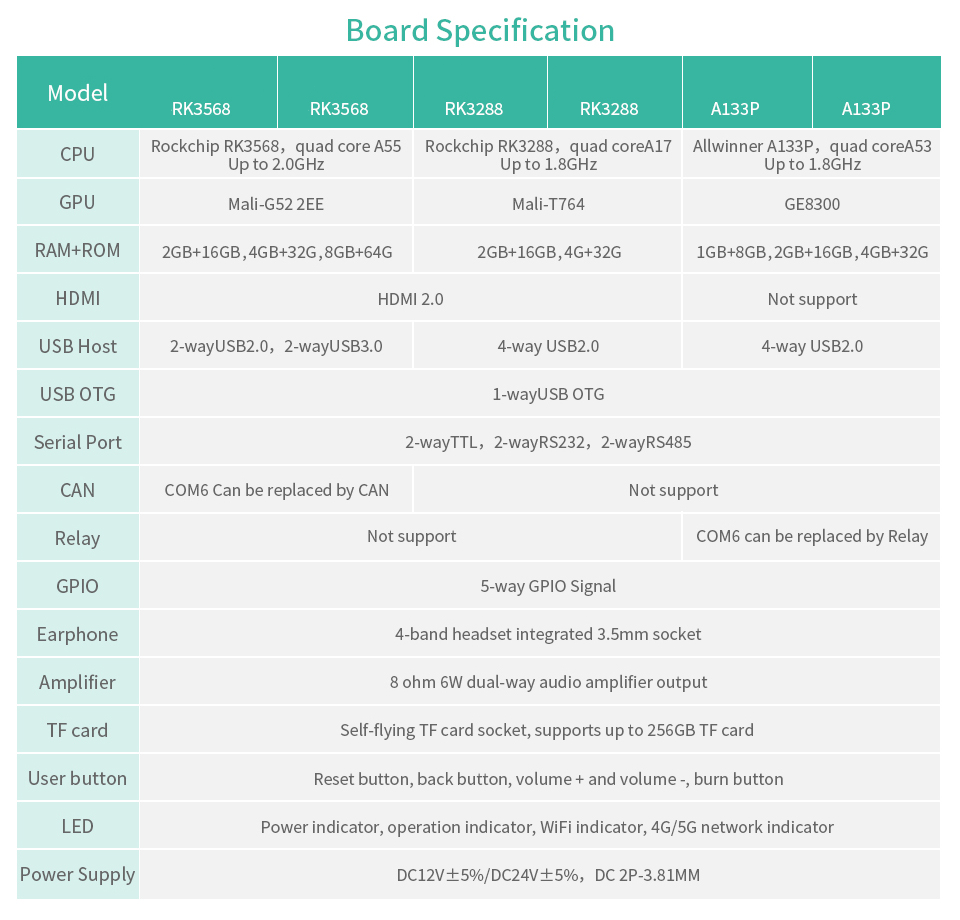

ControlHUB Plastic Frame Allwinner A133P Standard Configuration:

- CPU and GPU: Allwinner A133P A53, Up to 1.8GHz, GE8300

- RAM and ROM Options: 1GB + 8GB, 2GB+16GB,  4GB + 32GB

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

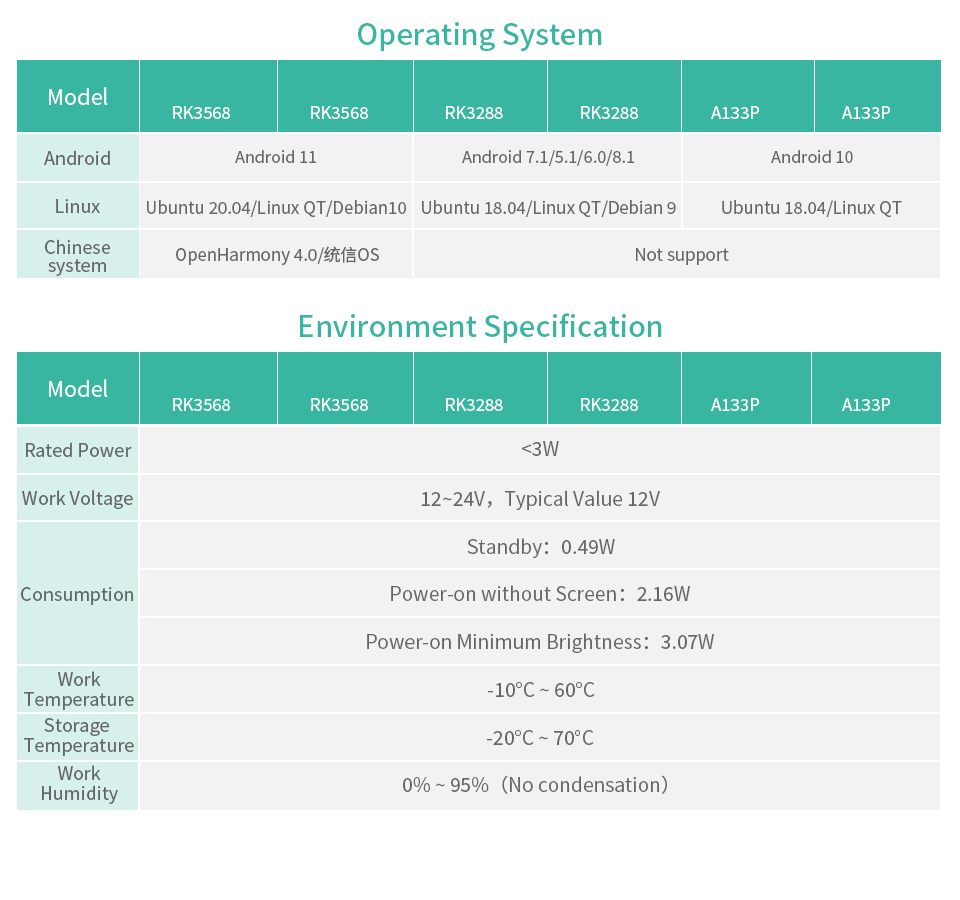

- Operating System: Android 10 / Ubuntu 18.04 / Linux QT

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G, 8G+64G Optional)

- External Storage: Self-ejecting TF Card Up to 256GB

- Ethernet: 100Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6 BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20，RG200U(5G)

- 1-way Micro SIM card slot

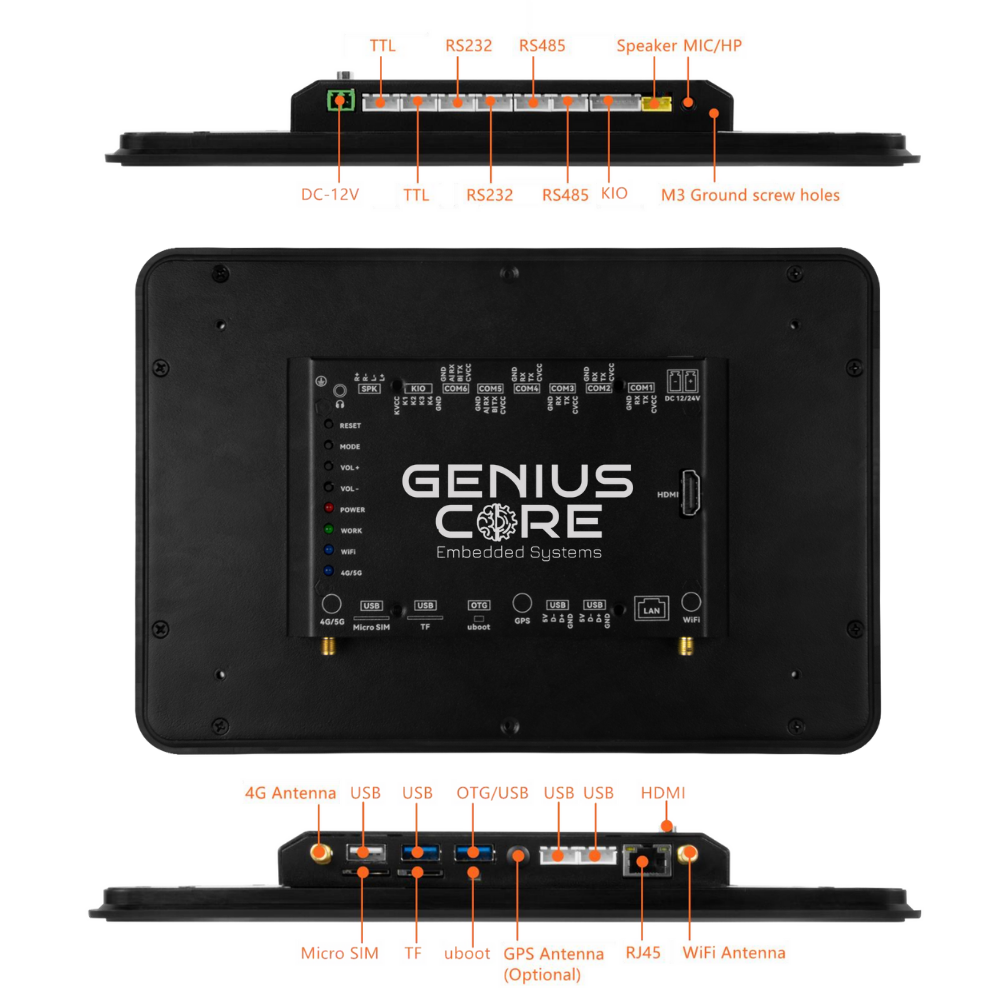

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485 (COM6 Can be replaced by Relay)

- CAN (Optional): COM6 can be configured as CAN

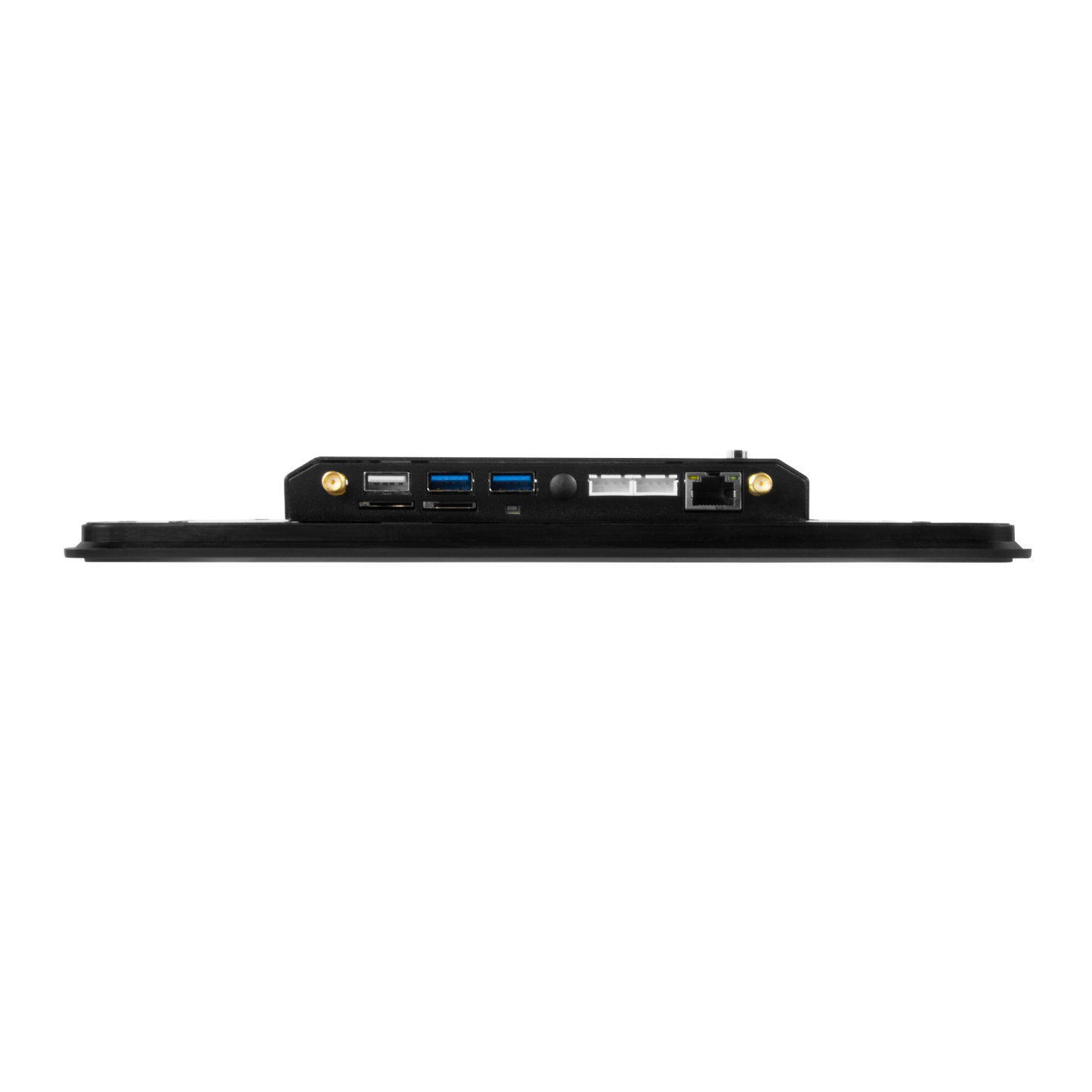

- USB: 1*USB3.0 , 3*USB2.0 , 1*USB3.0 OTG

- GPIO: 5-way GPIO Signal

- HDMI: No Support

- GPS (Optional): EC800M，Supports dual positioning of Beidou and GPS

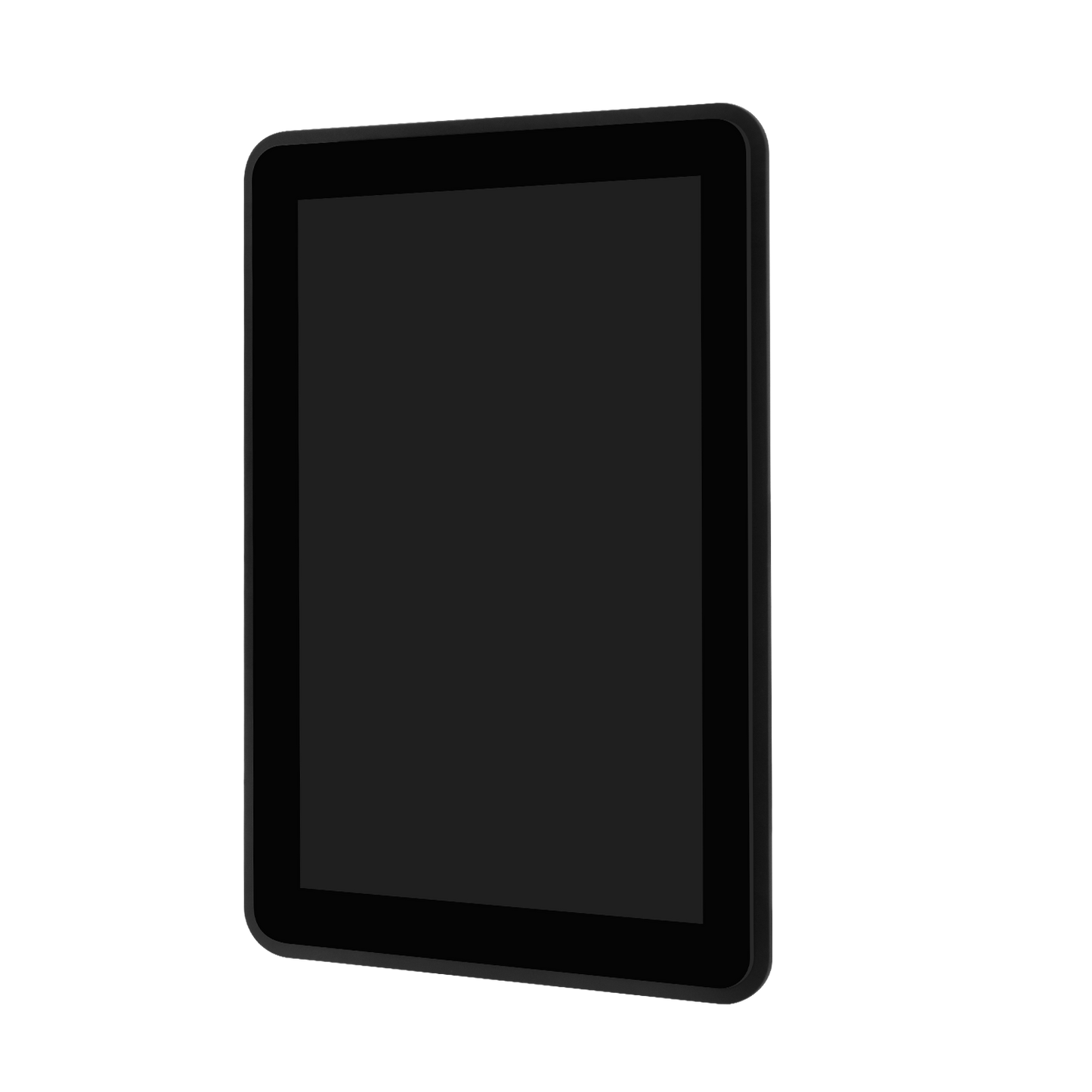

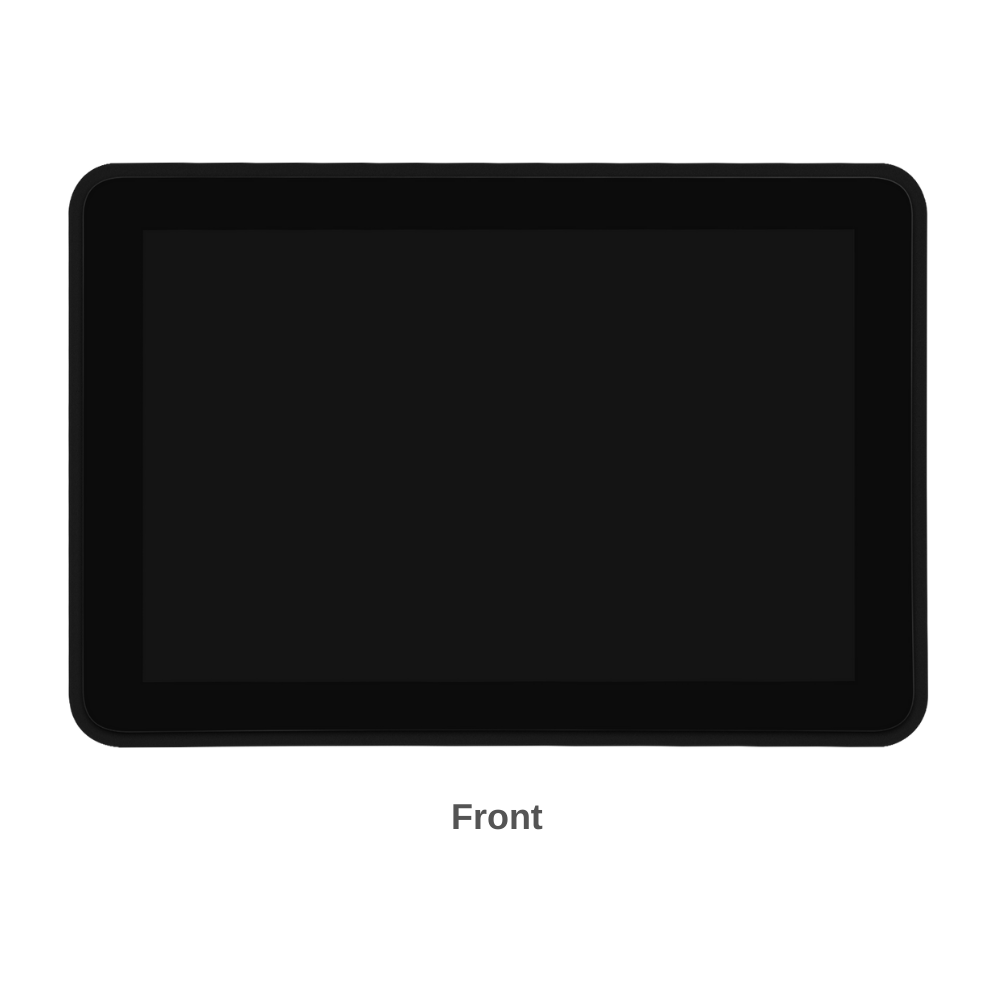

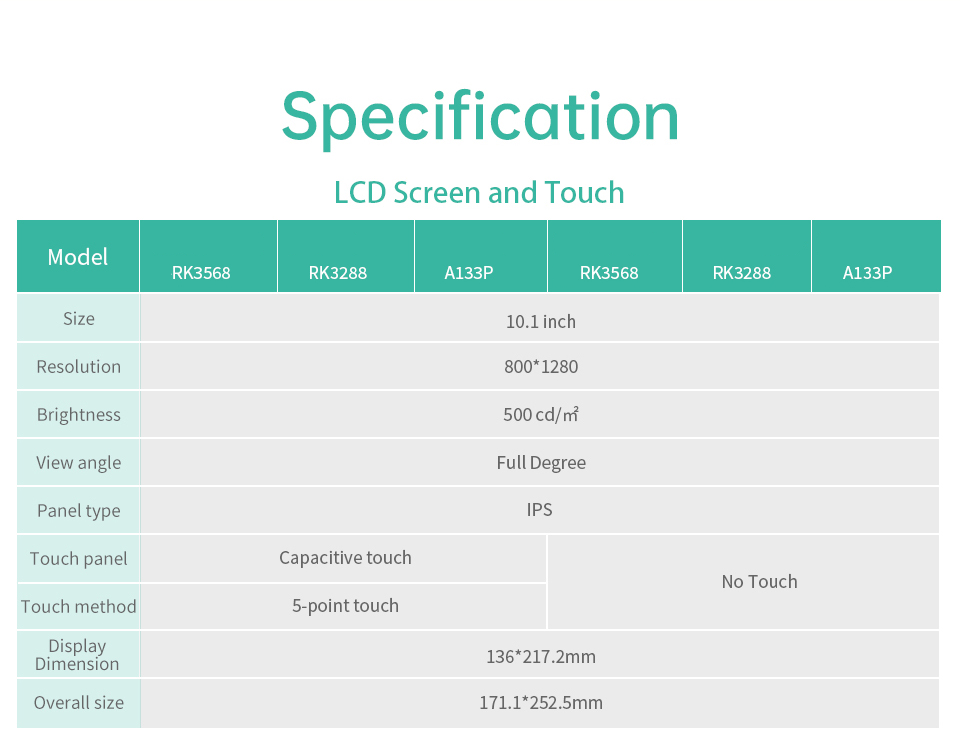

- Screen: 10.1" inch, 800*1280 Pixel, IPS Capacitive LCD Panel, display scale 5:8, IP65

- Glass Thickness: 1.8mm

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

- Buttons: Reset button, back button, volume + and volume -, burn button

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier: 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

- Power: DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

- Working Voltage: 9-24V, typical value 12V

- Working Temperature:-10°C-60°C  Storage Temperature: -20°C-70°C

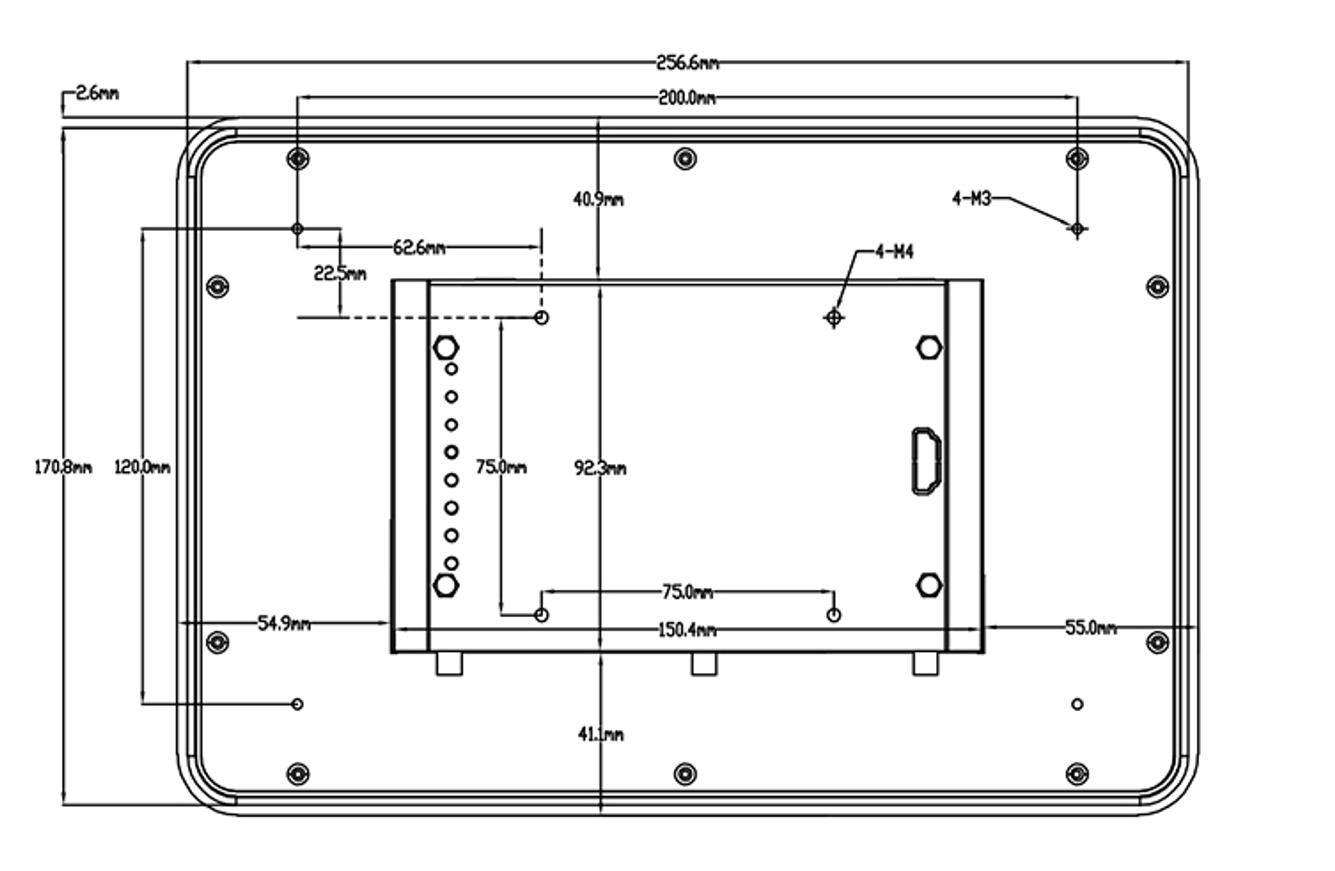

- Display Area: 217.2 * 136 mm

- Overall Dimension: 261.9 * 175.9 mm

- Weight: 1.50 kg, Package Weight: 1.80 kg

Unlock Seamless Connectivity and Control with the GeniusCore ControlHUB Series

The GeniusCore ControlHUB Plastic Frame - 10.1-Inch A133P Model is designed to meet the demands of industrial and IoT applications, offering a larger display and robust connectivity options. Equipped with the Allwinner A133P 4-Core A53 processor clocked up to 1.8GHz and GE8300 GPU, this model provides efficient performance for real-time monitoring and data processing. Available in 1GB+8GB, 2GB+16GB, and 4GB+32GB configurations, it suits a range of operational needs.

With a 10.1-inch 800x1280 IPS display featuring 5-point capacitive touch, the A133P model offers an expansive viewing area with sharp visuals and responsive interaction. Built with an IP65-rated plastic frame, it withstands dust and water, making it a durable option for harsh environments. Although HDMI is not supported, it includes 100Mbps Ethernet and optional COM and Uart6 serial ports for reliable connectivity.

Running Android 10 (with optional Ubuntu 18.04/Linux QT), it supports flexible software integration. Connectivity options such as optional 4G/5G, single-frequency WiFi 6 (with optional dual-frequency), and GPS with dual positioning (Beidou and GPS) make it suitable for remote and mobile applications. Powered by DC12V ± 5%/DC24V ± 5% and backed by a 3-year warranty, the A133P 10.1-inch model is an excellent solution for industrial automation, infrastructure management, and fleet control.
