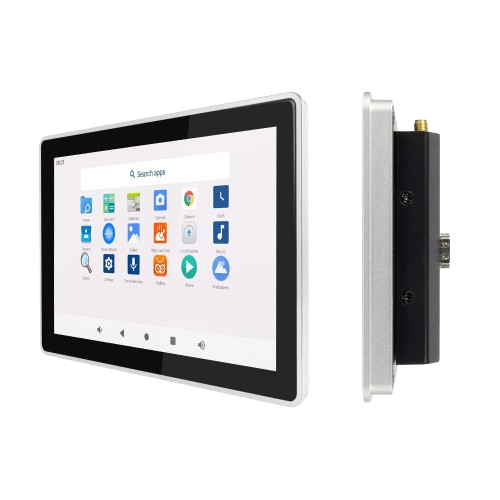

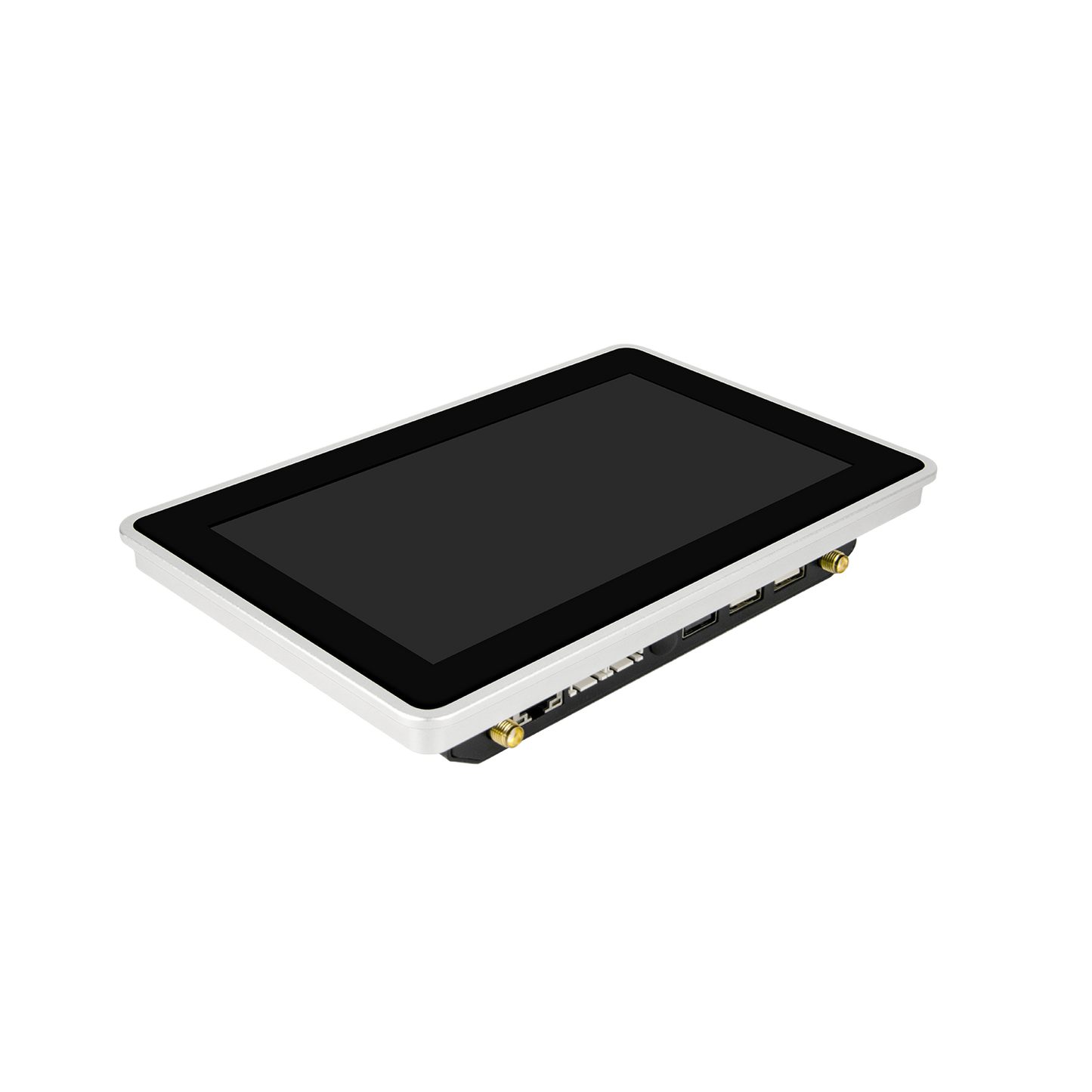

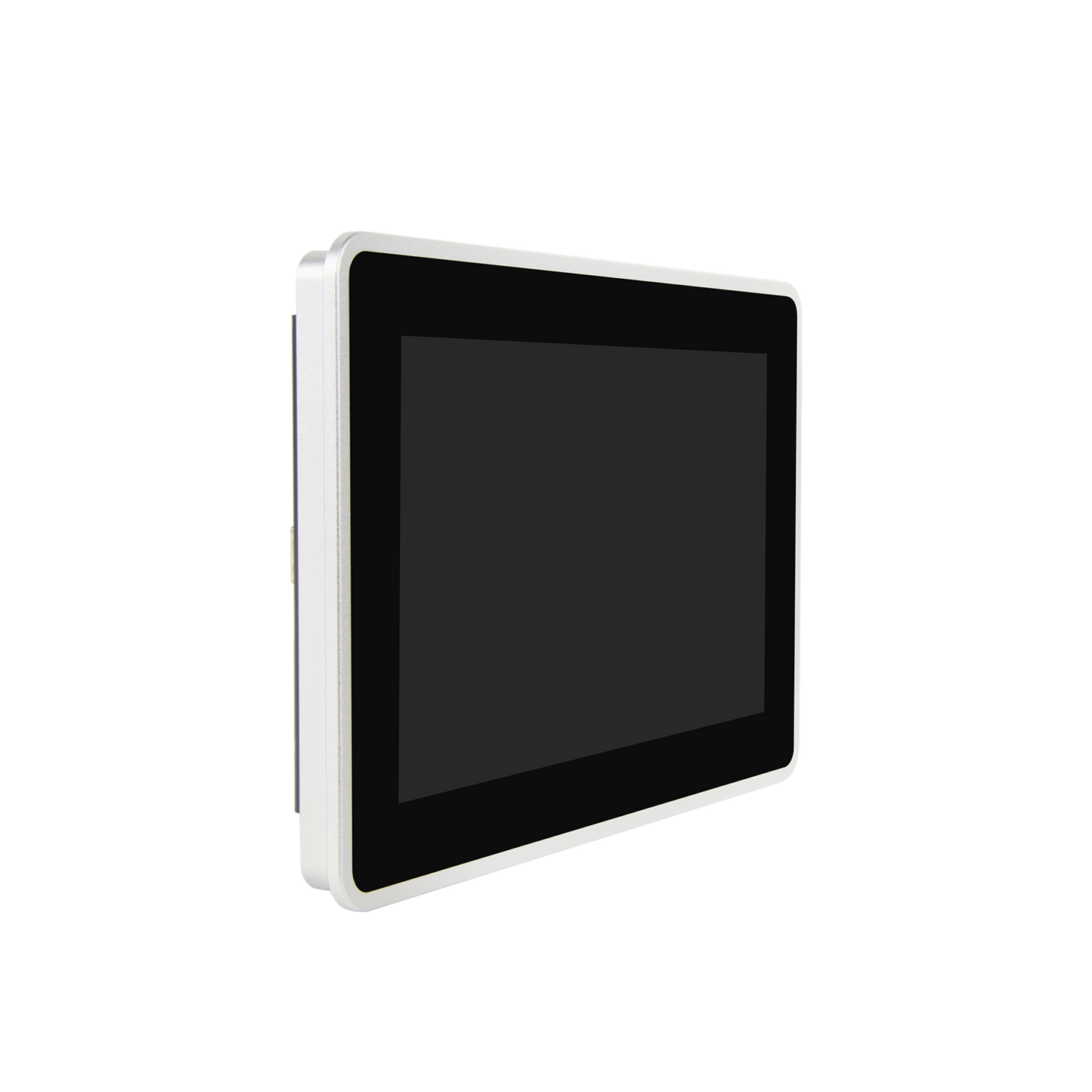

7 İnç RK3568 İşlemcili Android Endüstriyel HMI Panel PC – IPS Ekran, Alüminyum Gövde

GeniusCore Embedded Systems "ControlHUB Series" Aluminum Frame Multiport Panel PC

7" inch IPS Screen, All in One HMI Android Panel PC, RK3568 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485, Optional CAN Port

Model: GFCX-A070L3568-2G16

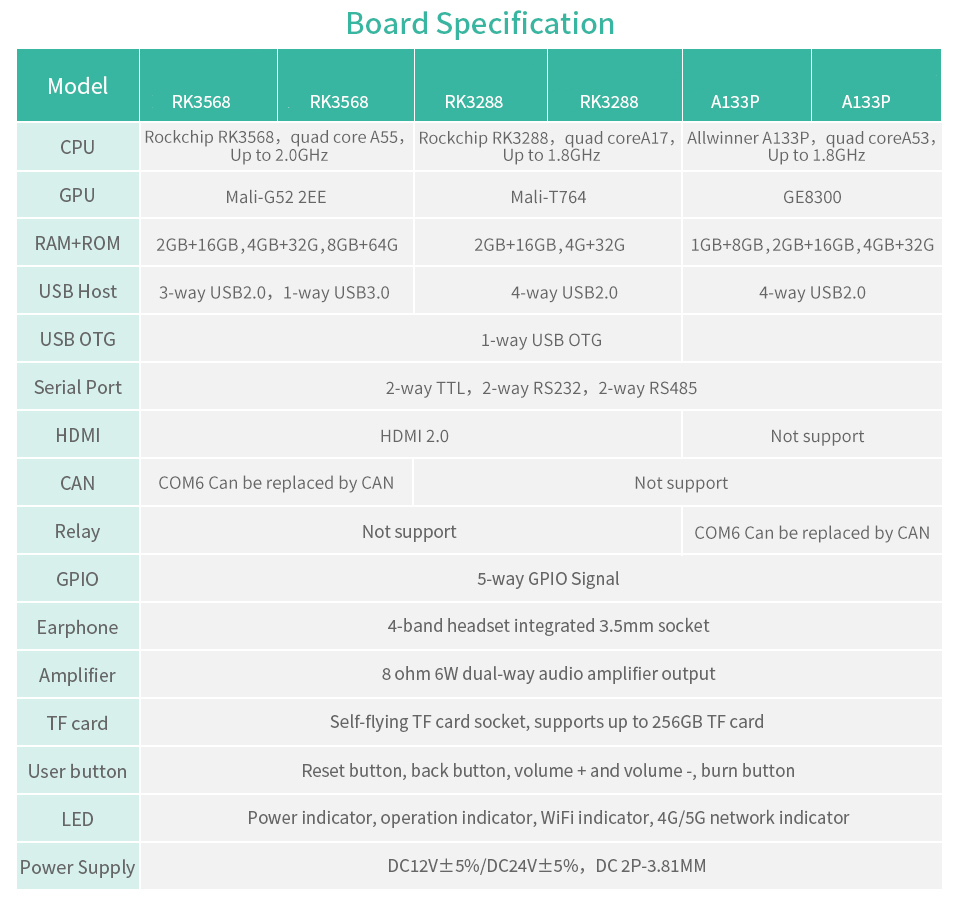

ControlHUB Aluminum Frame RK3568 Standard Configuration:

- CPU: RK3568 Quadcore A55, 2GB RAM 16GB ROM Quad Core A17, Up to 1.8GHz

- GPU: Mali-G52 2EE

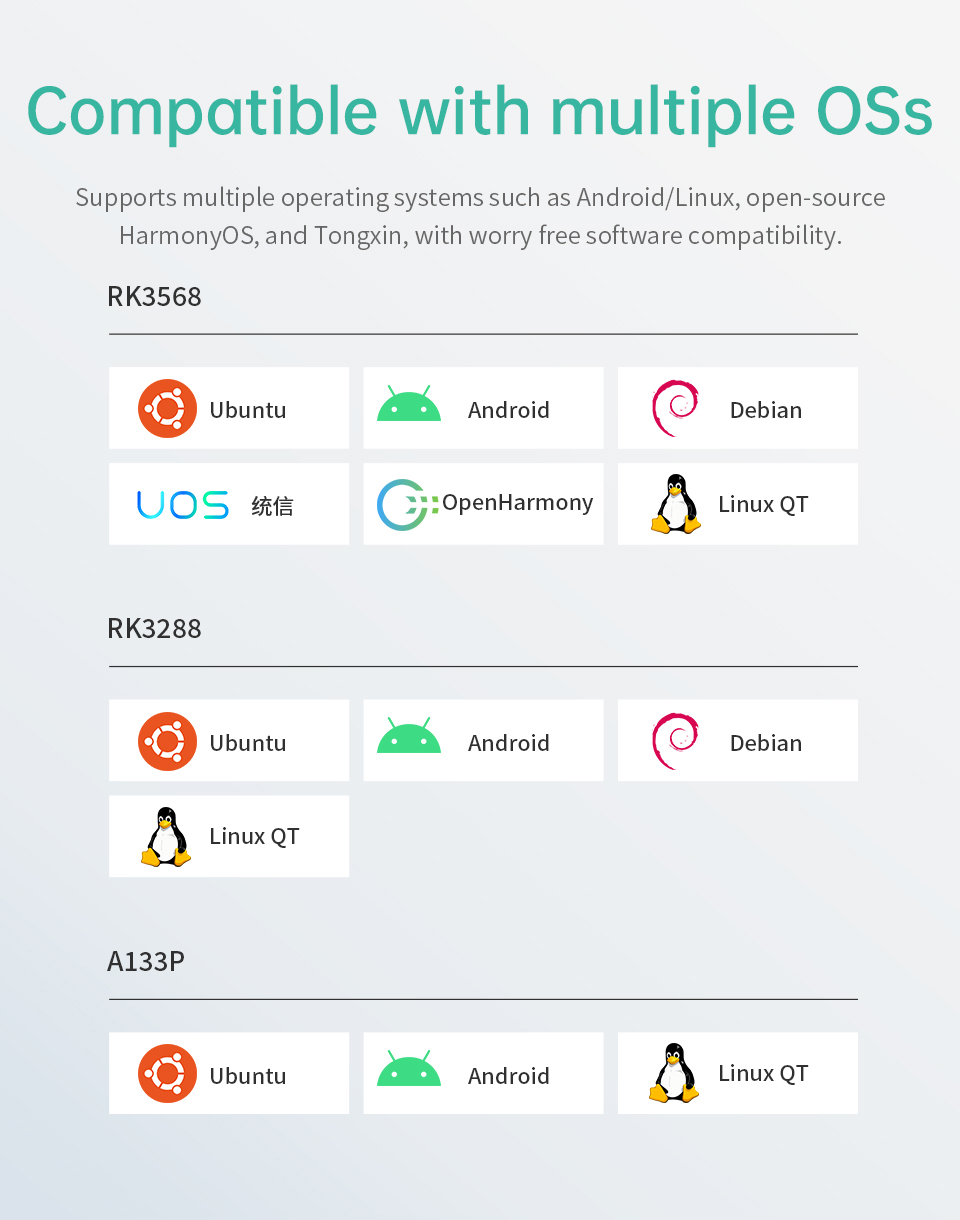

- Operating System: Android 11/12 / Ubuntu 20.04 / Linux QT / Debian 10

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G, 8G+64G Optional)

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

- External Storage: Self-ejecting TF Card Up to 256GB

- Ethernet: 1000Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6 BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20，RG200U(5G)

- 1-way Micro SIM card slot

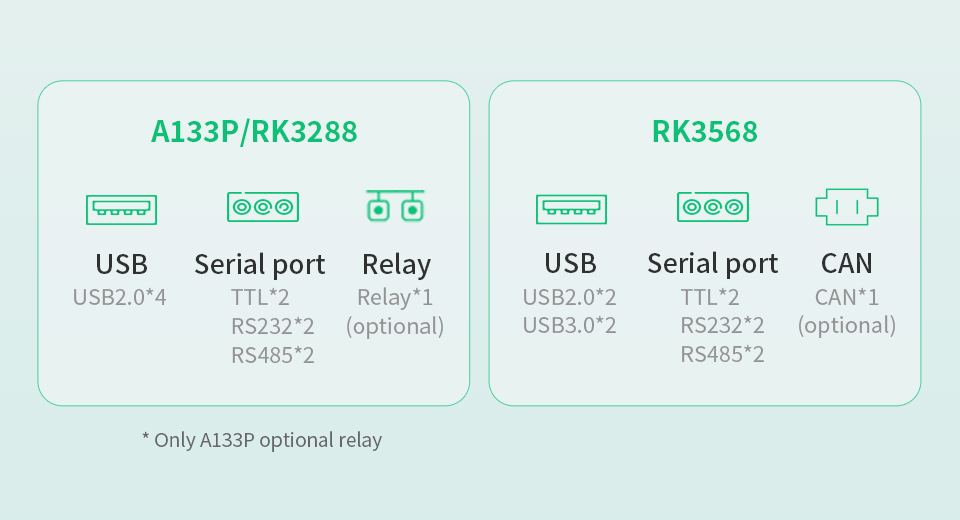

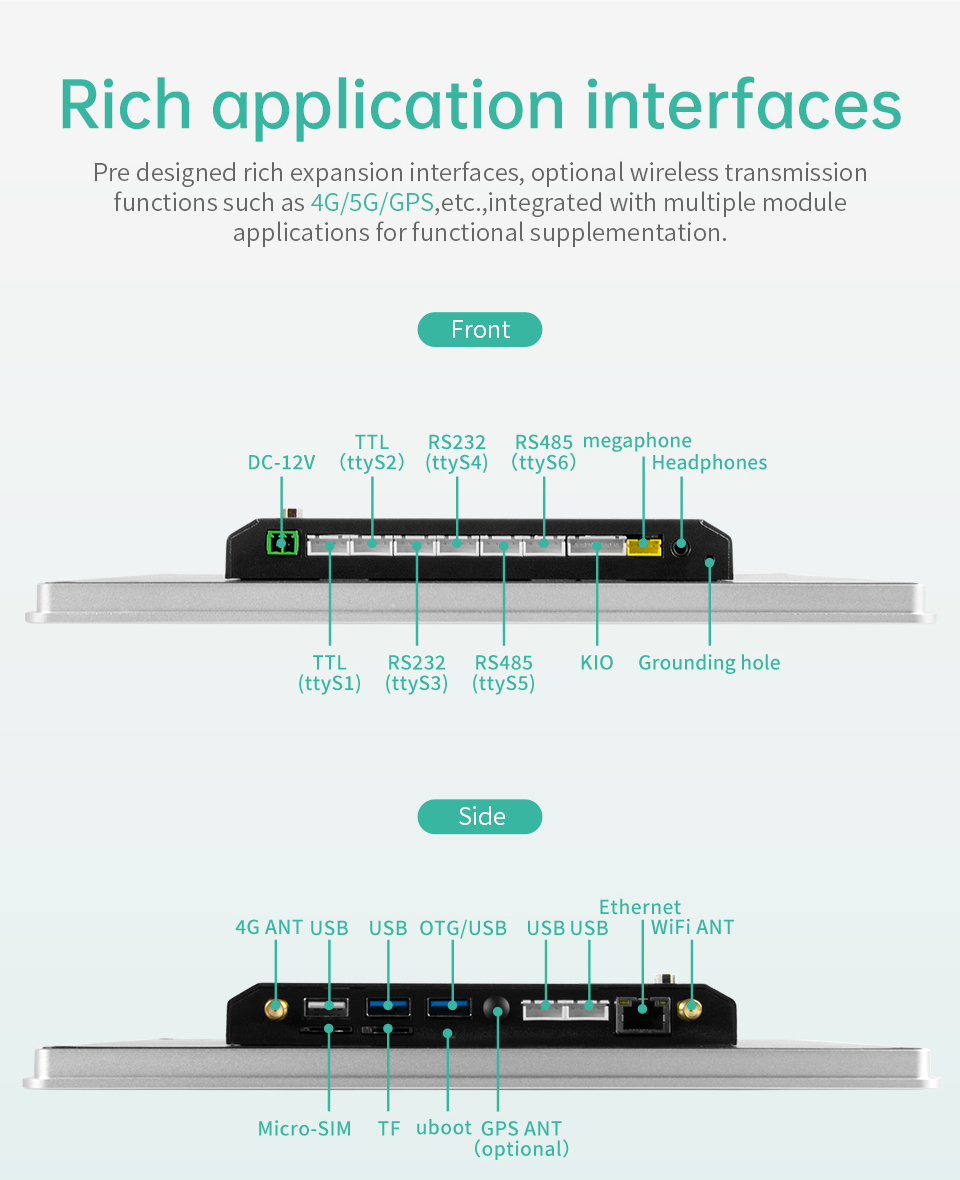

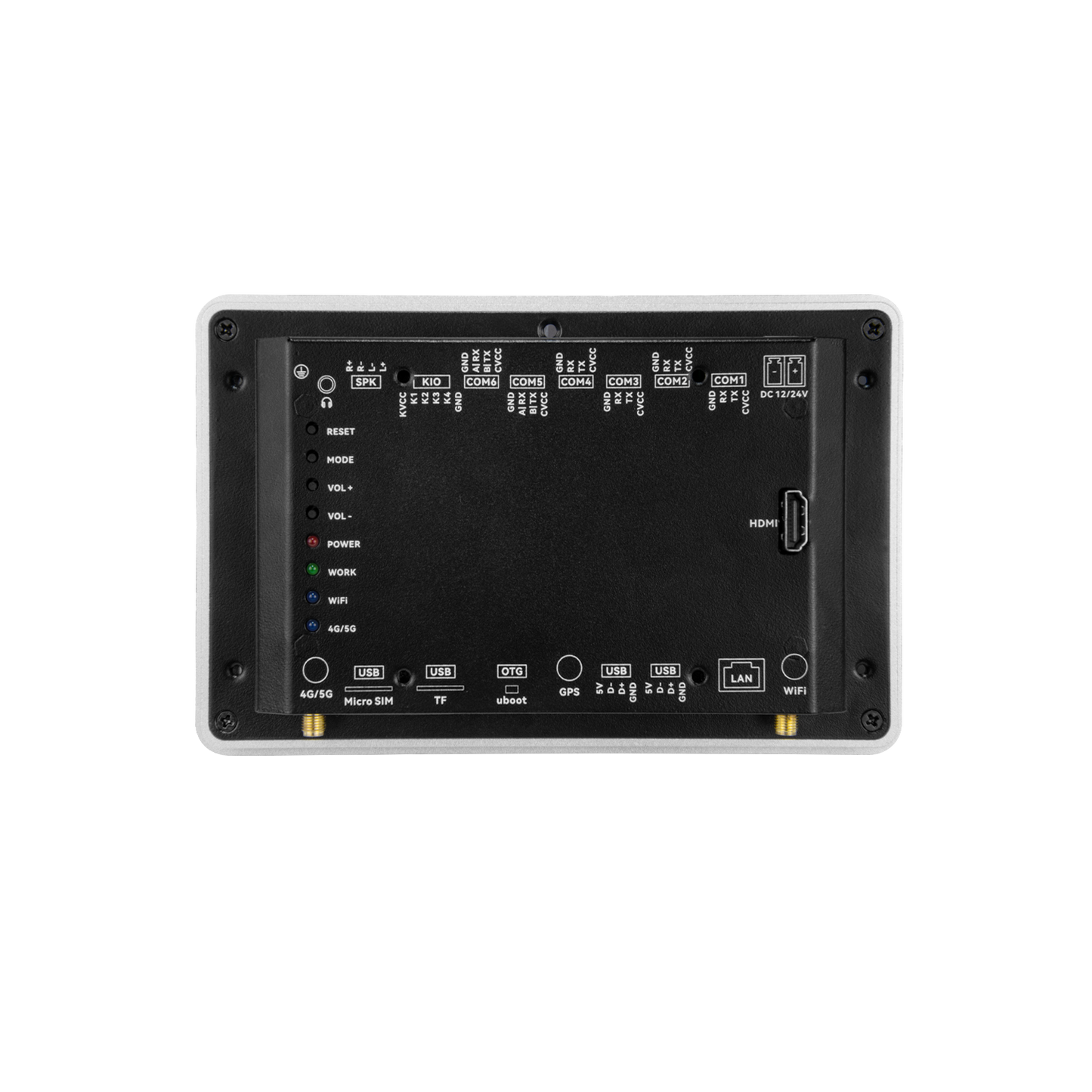

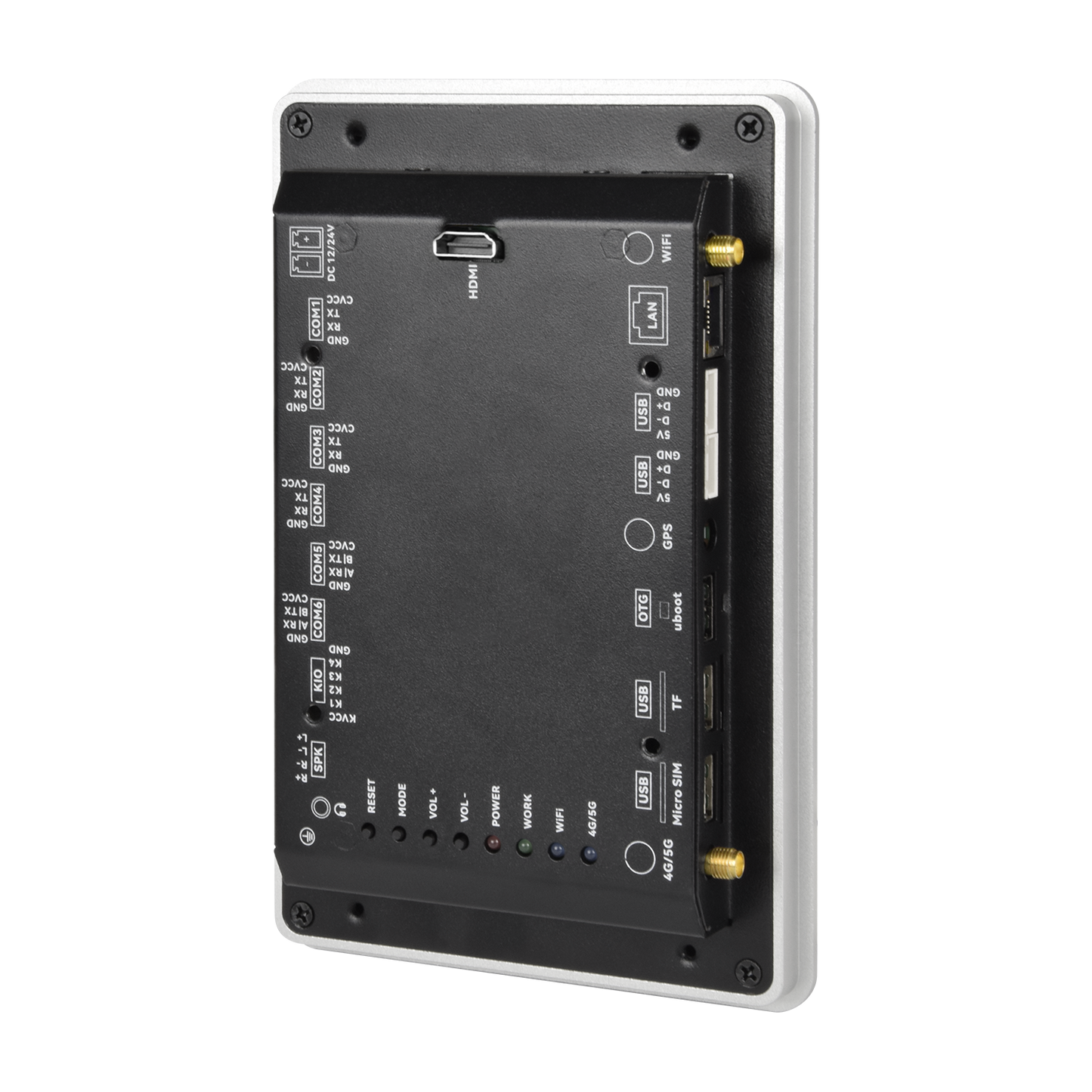

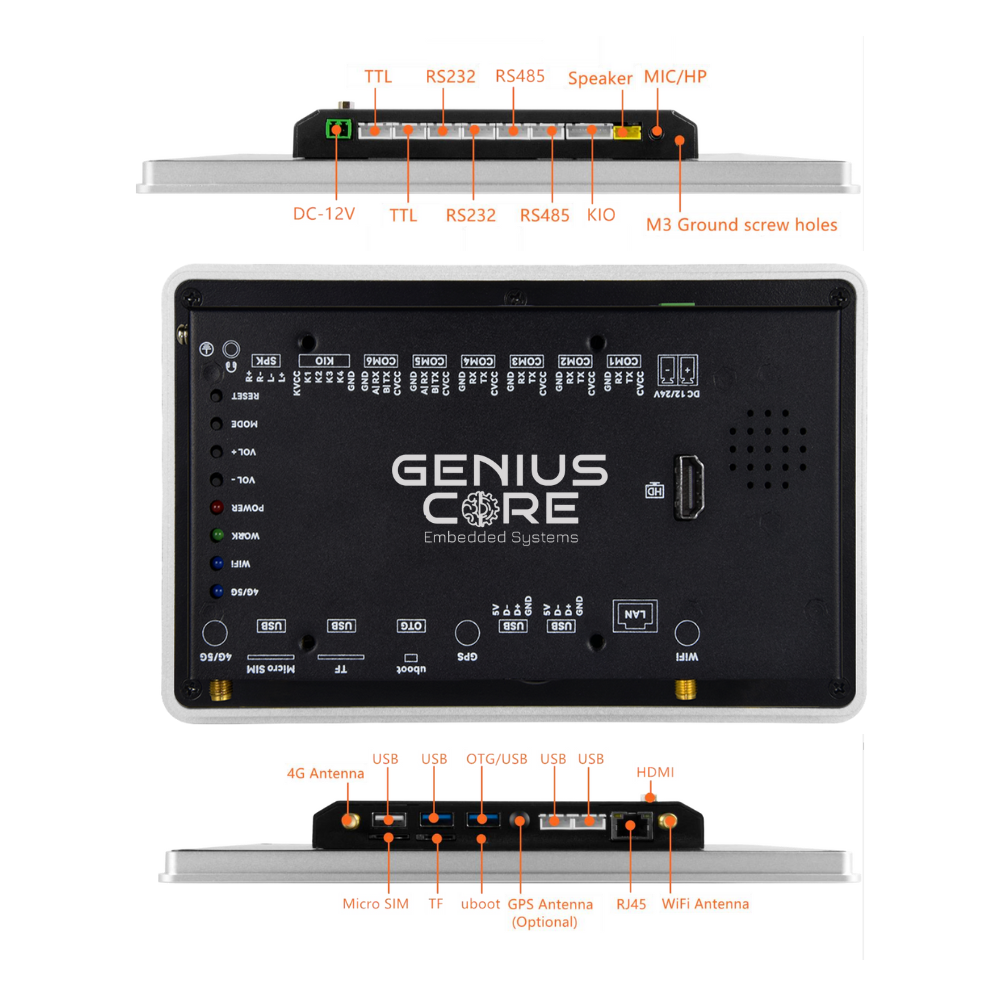

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485

- CAN (Optional): COM6 can be configured as CAN

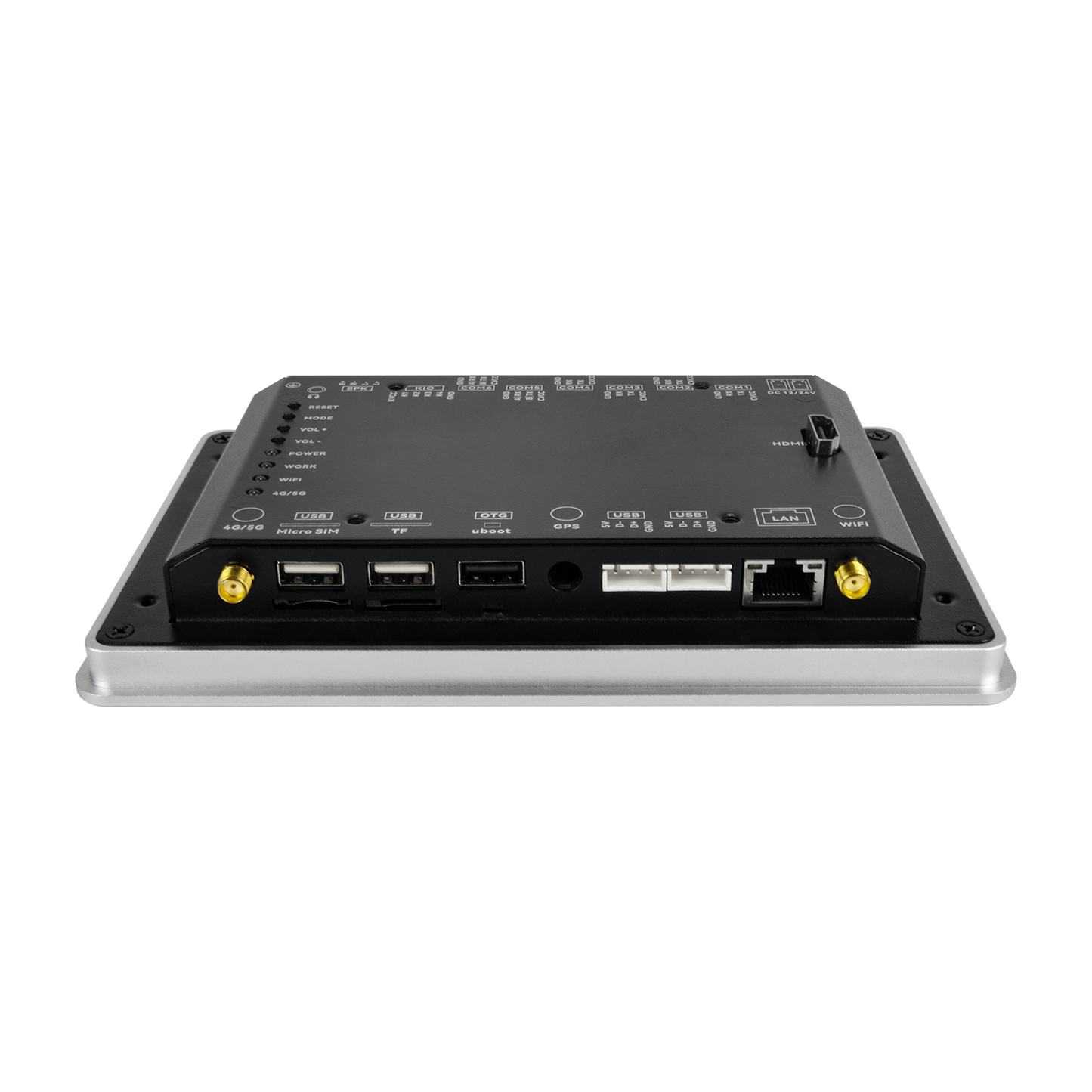

- USB: 1*USB3.0 , 3*USB2.0 , 1*USB3.0 OTG

- GPIO: 4-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

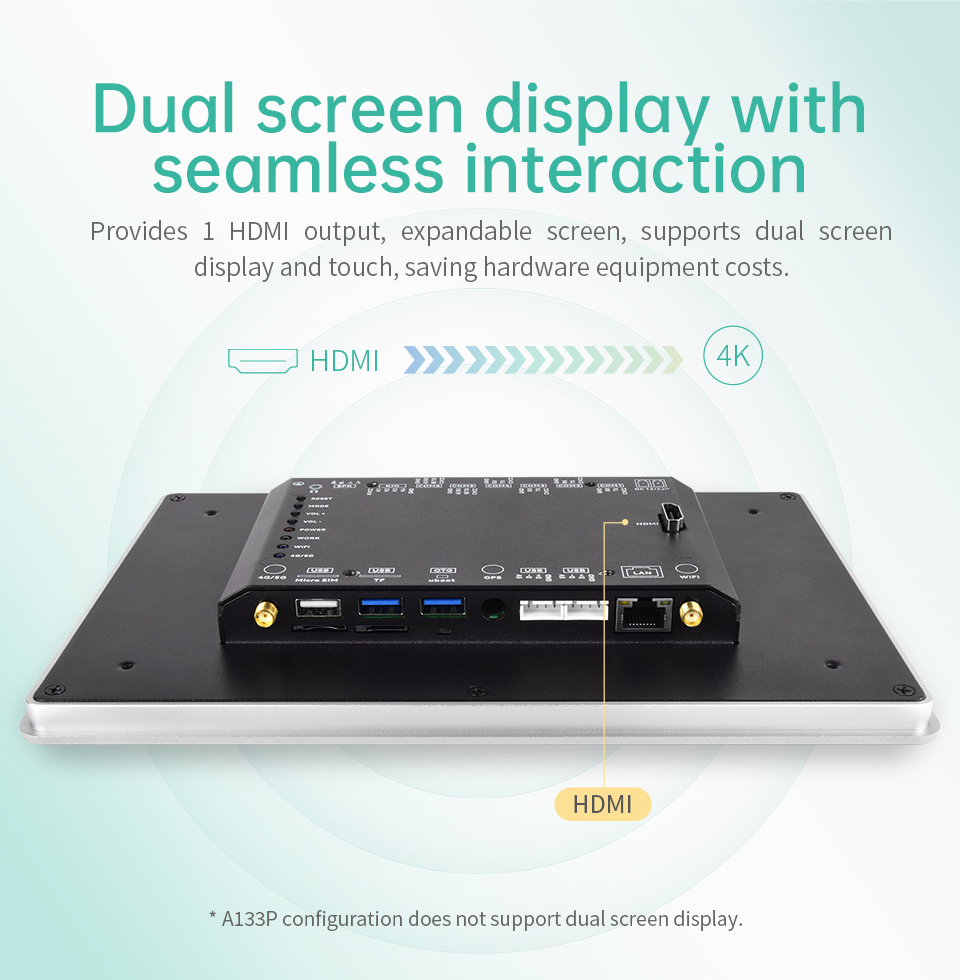

- HDMI 2.0 Built in, up to 4K resolution, supports Dual screen display

- GPS (Optional): EC800M，Supports dual positioning of Beidou and GPS

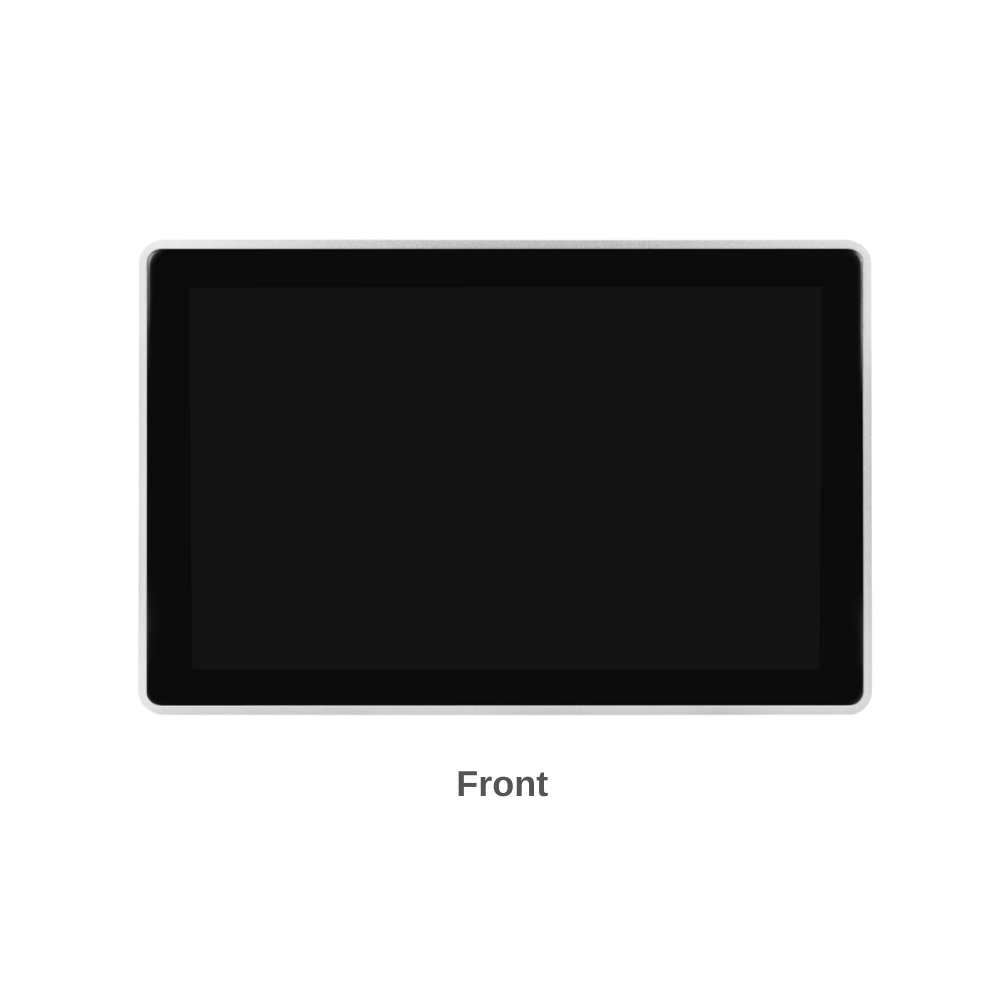

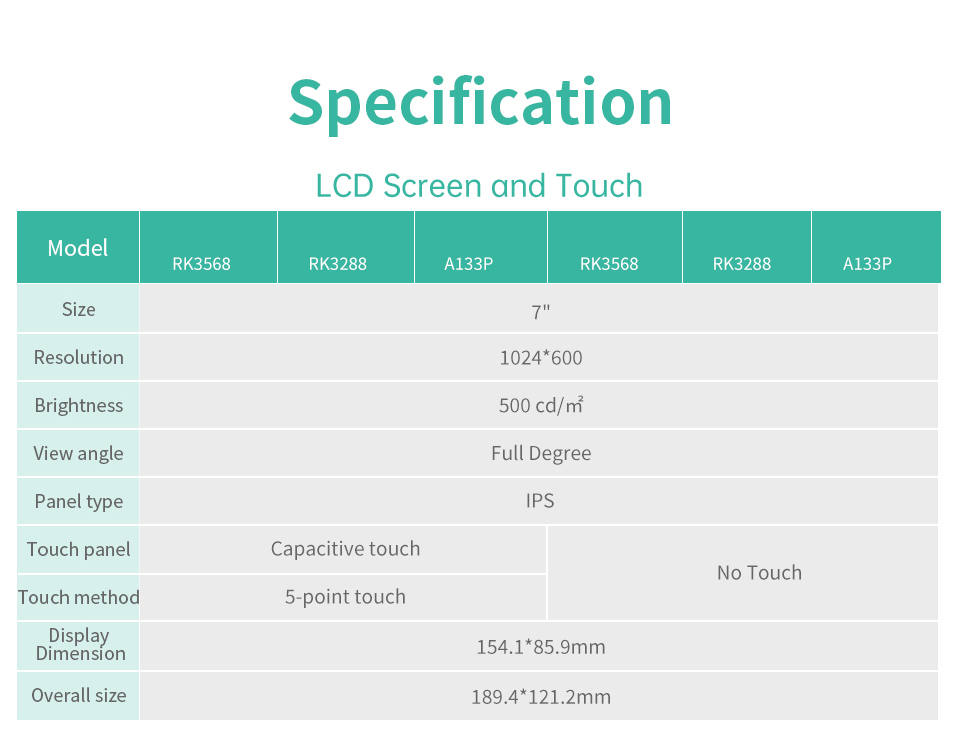

- Screen: 7" inch, 1024*600 Pixel, IPS Capacitive LCD Panel, display scale 5:8

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

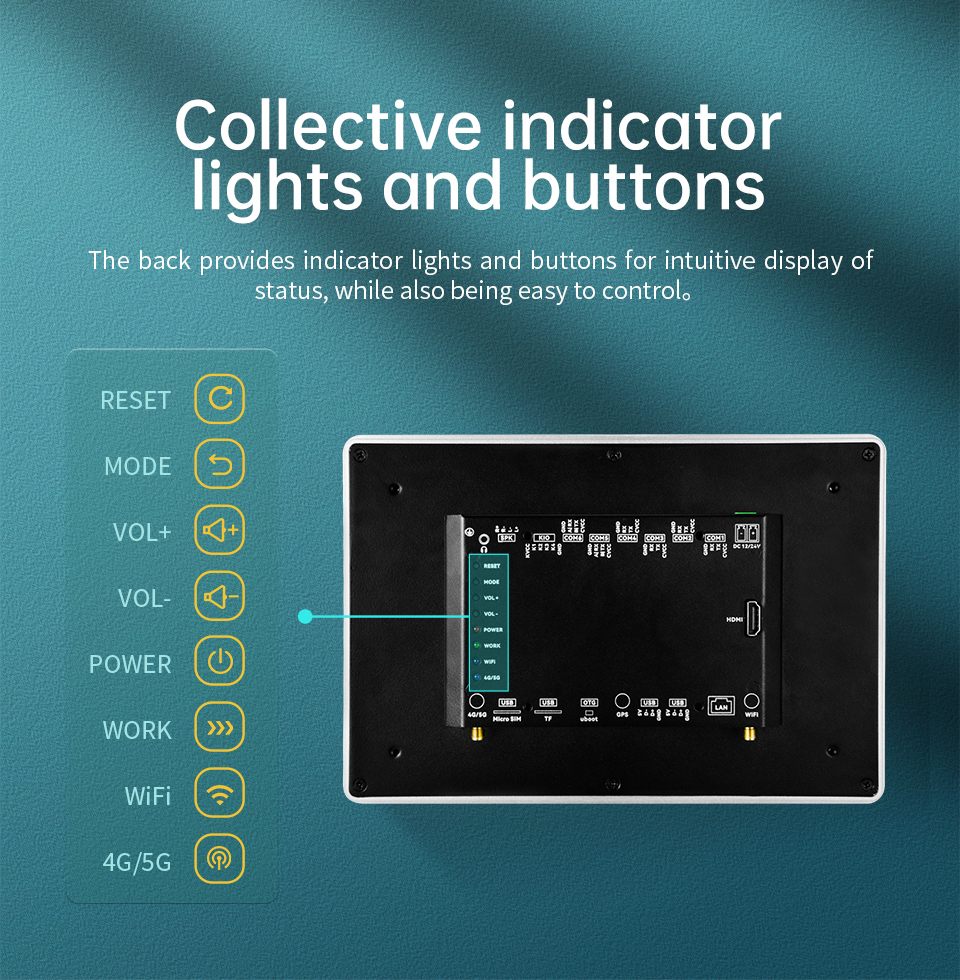

- Buttons: Reset button, back button, volume + and volume -, burn button

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier: 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

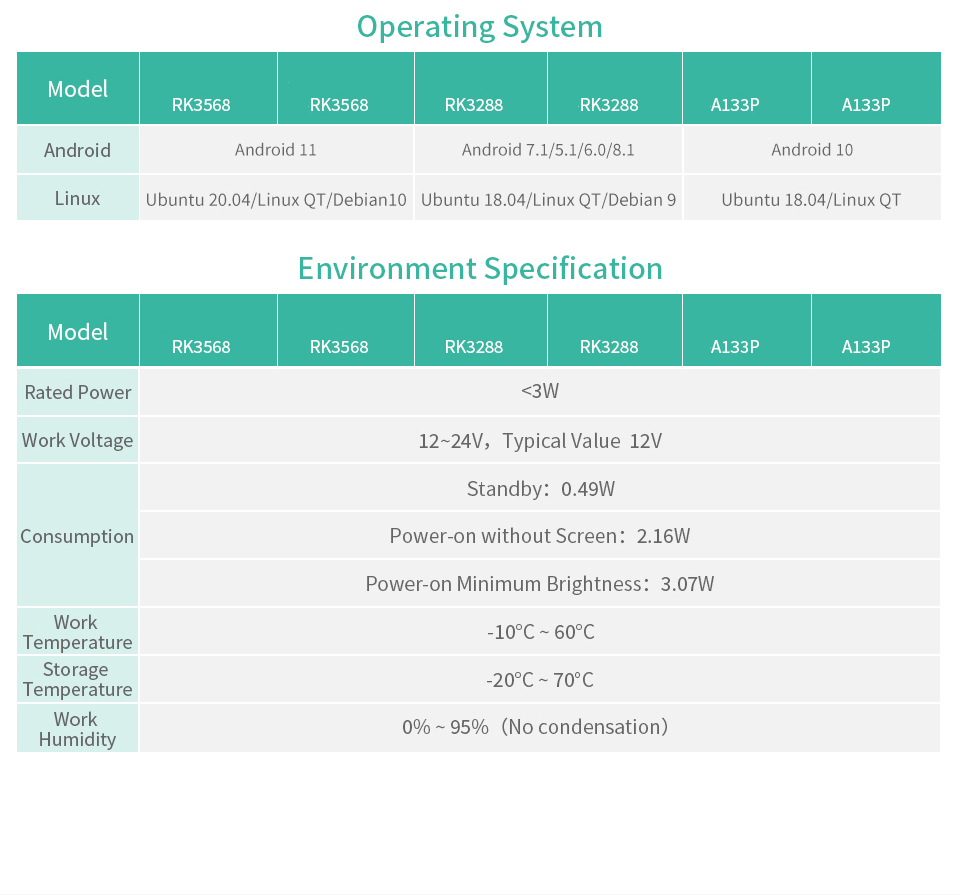

- Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

- Working Voltage: 9-24V, typical value 12V

- Working Temparature: Temperature Working Temperature:-10°C-60°C Storage Temperature: -20°C-70°C

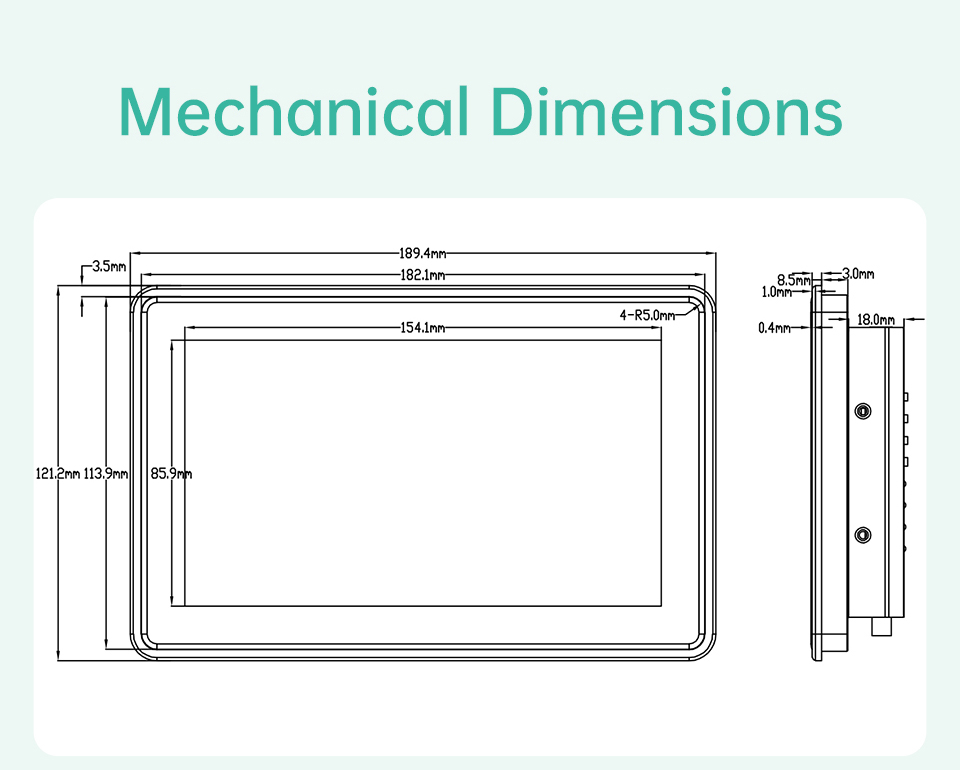

- Display Area: 85.9*154.1mm

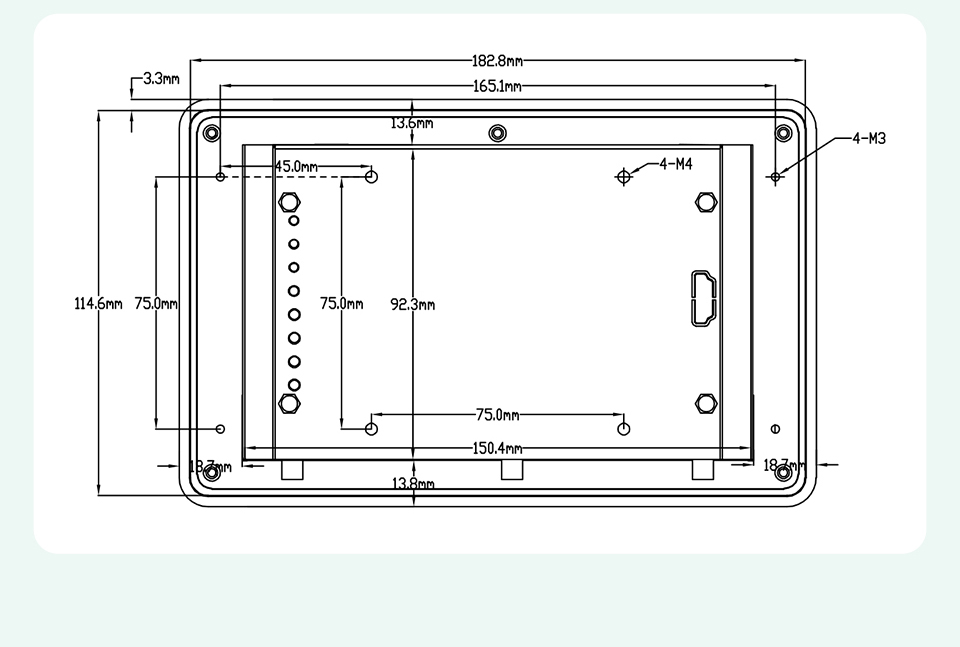

- Overall Dimension: 121.2*189.4mm

- Outer packaging size 233 * 160 * 52mm

- Weight: 1.50 kg, Package Weight: 1.80 kg

Empowering Advanced Control and Connectivity with the Genova Control Hub Aluminum

The Genova Control Hub Aluminum - Rockchip RK3568 Model is built for advanced industrial applications requiring high performance and flexibility. Powered by the Rockchip RK3568 4-Core A55 processor, clocked up to 2.0GHz, and the Mali-G52 2EE GPU, this model delivers exceptional processing capability for demanding tasks. It offers 2GB+16GB, 4GB+32GB, and 8GB+64GB memory and storage options to handle intensive data operations.

This model includes 1000Mbps Ethernet and HDMI 2.0 for enhanced networking and display capabilities, making it suitable for complex, interconnected systems. CANBUS support (optional), along with optional COM and Uart6 serial ports, ensures compatibility with various industrial protocols.

Operating on Android 11 (with optional Ubuntu 20.04/Debian 11), this model is highly adaptable across different software environments. Connectivity features such as optional 4G/5G, single-frequency WiFi 6 (with optional dual frequency), and GPS with dual positioning (Beidou and GPS) make it a robust choice for IoT and fleet management applications. The IP65-rated aluminum frame adds durability, protecting the device from dust and water in harsh conditions.

The 7-inch 800x1280 IPS display provides vibrant visuals, and the 5-point capacitive touch screen ensures precise interactions. With flexible power input (DC12V ± 5%/DC24V ± 5%), this model performs consistently across diverse power environments. Supported by a 3-year warranty, the RK3568 model offers reliable performance for industrial automation, infrastructure management, and real-time data analysis applications.
