7 İnç RK3288 İşlemcili Android Endüstriyel HMI Panel PC – IPS Ekran, Alüminyum Gövde

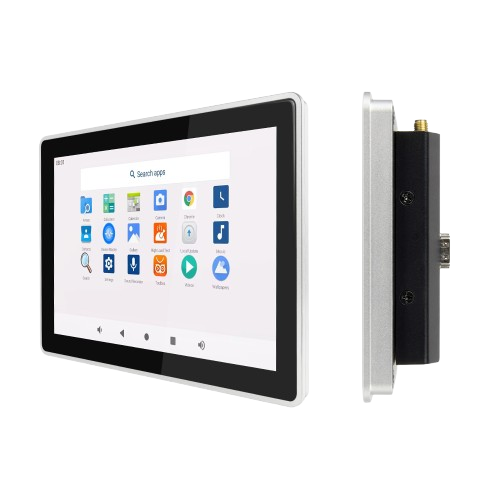

GeniusCore Embedded Systems "ControlHUB Series" Aluminum Frame Multiport Panel PC

7" inch IPS Screen, All in One HMI Android Panel PC, RK3288 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485

Model: GFCX-A070L3288-2G16

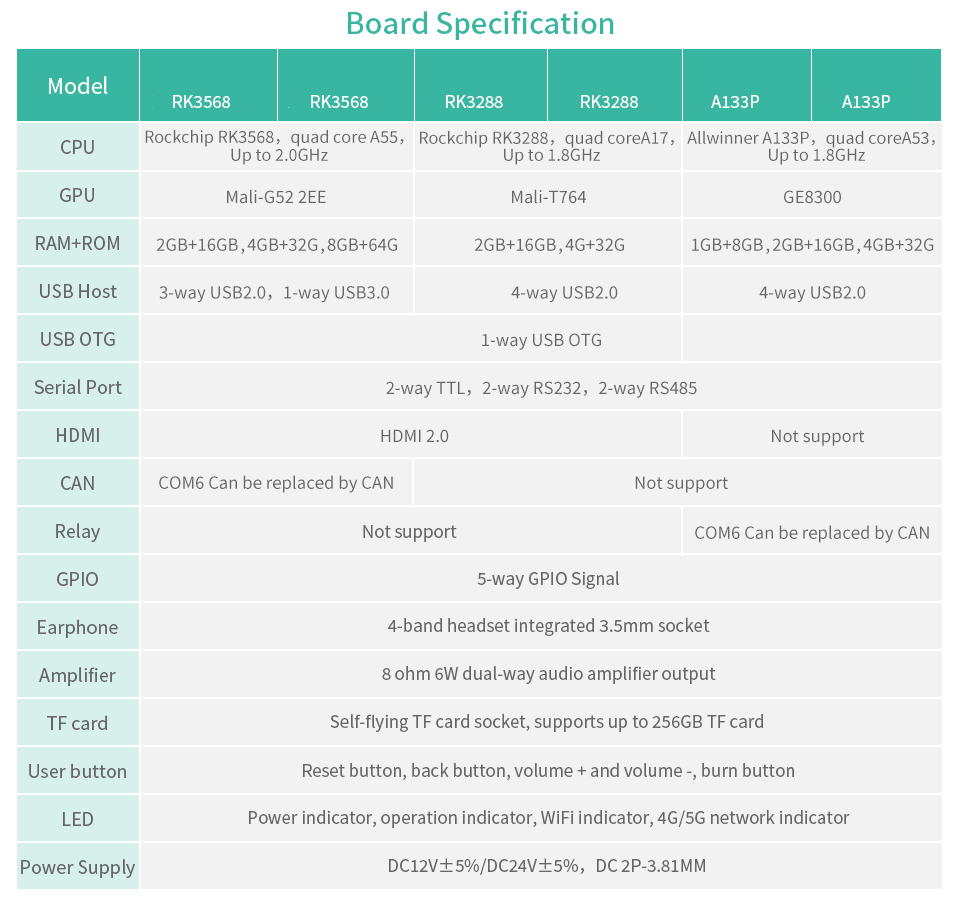

ControlHUB Aluminum Frame RK3288 Standard Configuration:

- CPU: RK3288 2GB RAM 16GB ROM Quad Core A17, Up to 1.8GHz

- GPU: Mali-T764

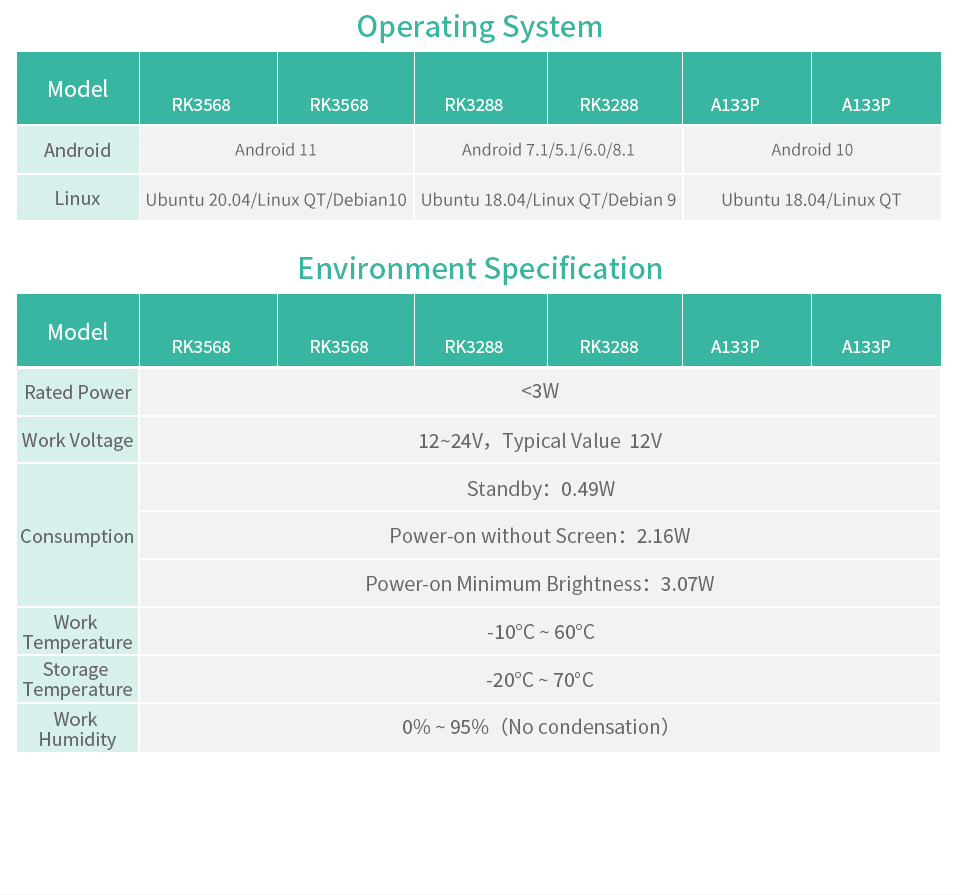

- Operating System: Android 7.1 / 5.1 / 6.0 / 8.1 / Ubuntu 18.04 / Linux QT / Debian 9

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G Optional)

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

- External Storage: Support TF Card Up to 256GB /OTG

- Ethernet: 1000Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20，RG200U(5G)

- 1-way Micro SIM card slot

- GPIO: 5-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

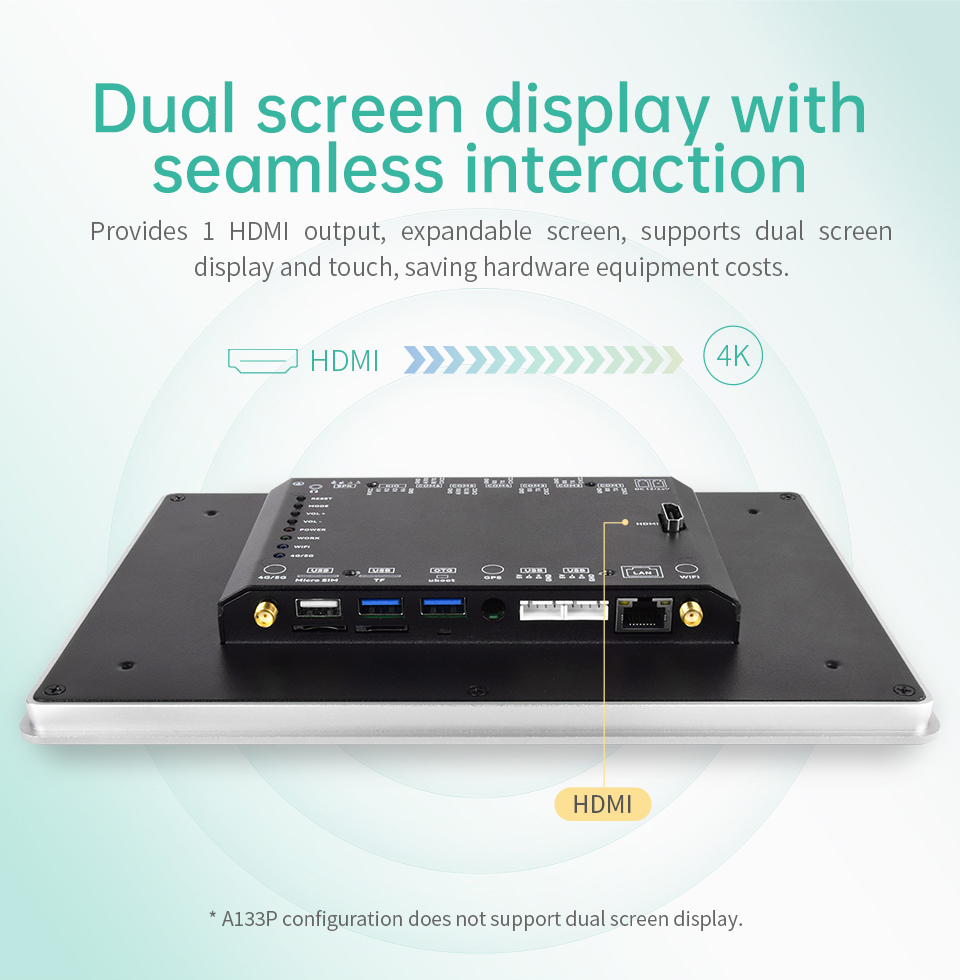

- HDMI 2.0 Built in

- GPS (Optional): EC800M，Supports dual positioning of Beidou and GPS

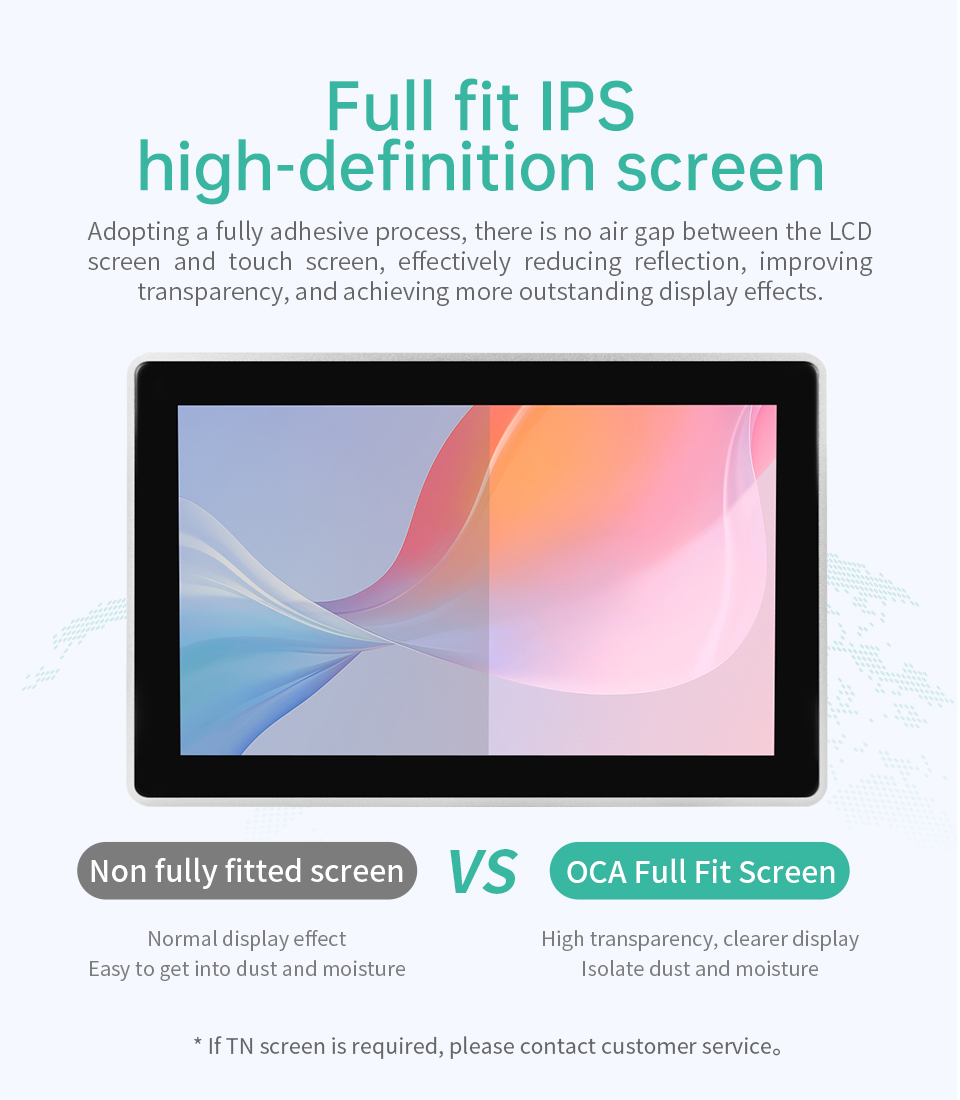

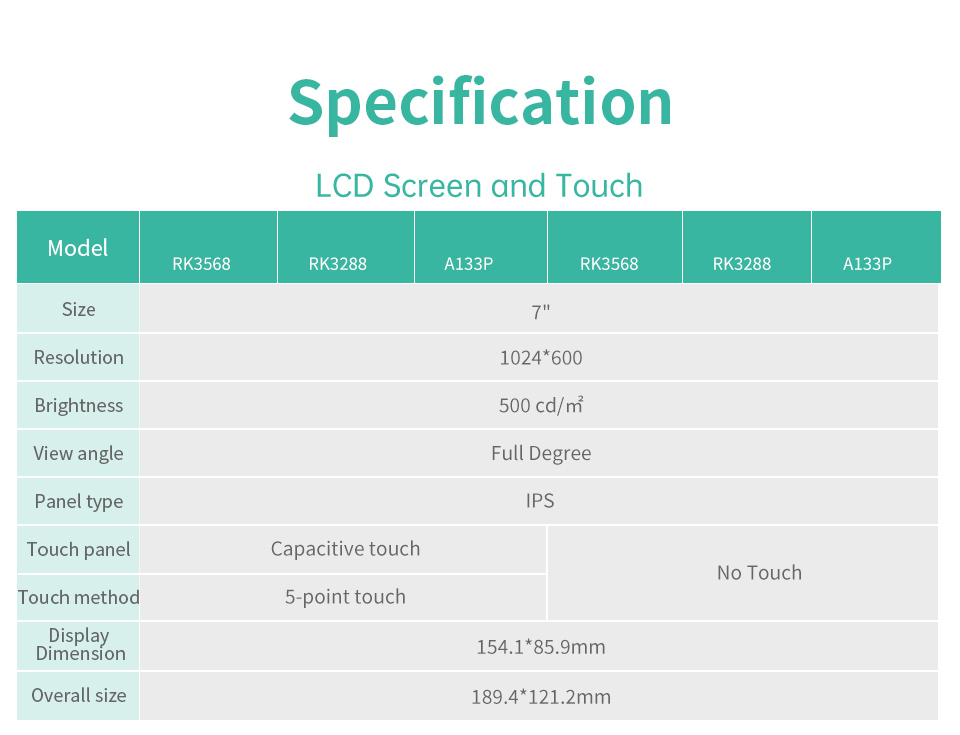

- Screen: 7 Inch, 1024*600 Pixel, IPS Capacitive LCD Panel, display scale 16:9

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

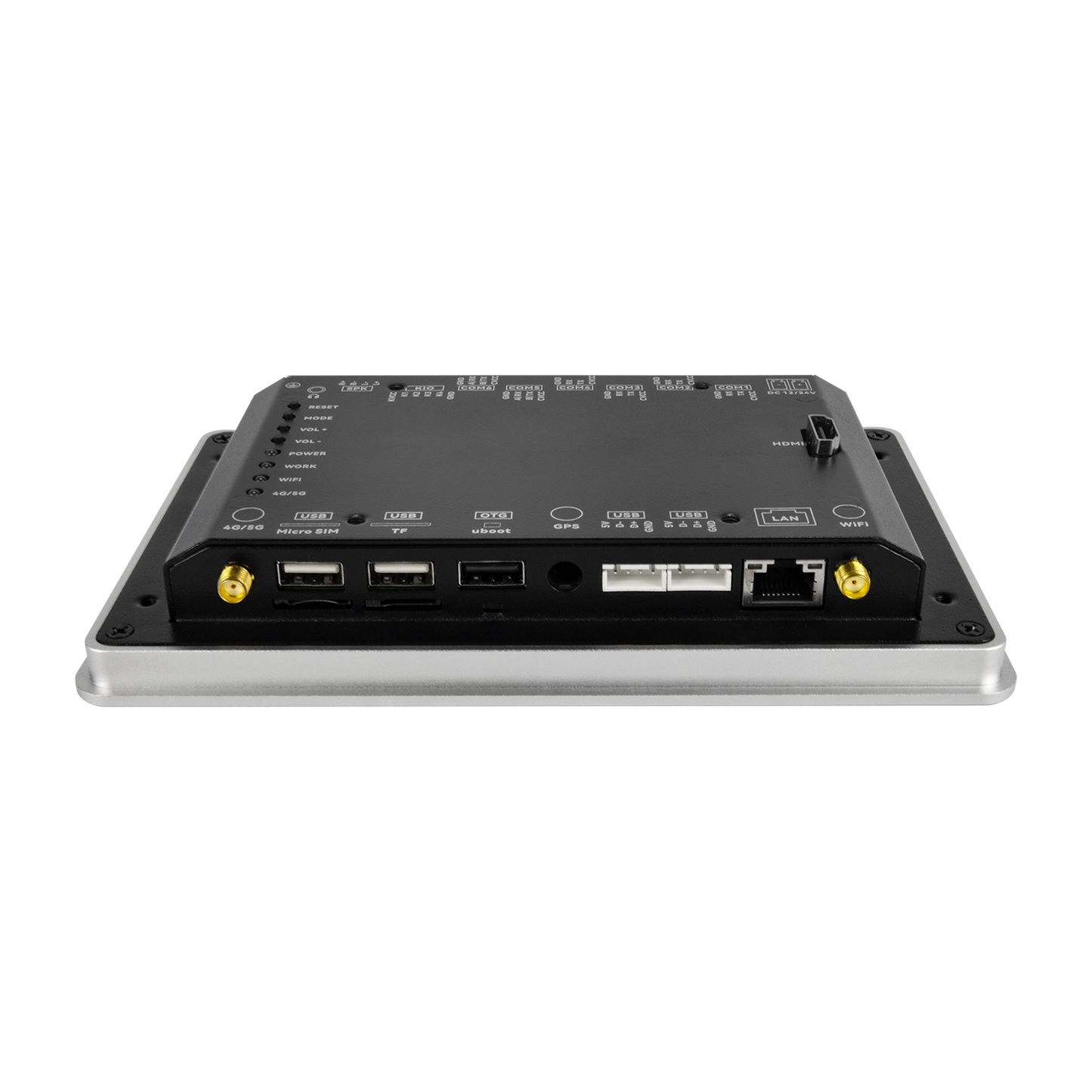

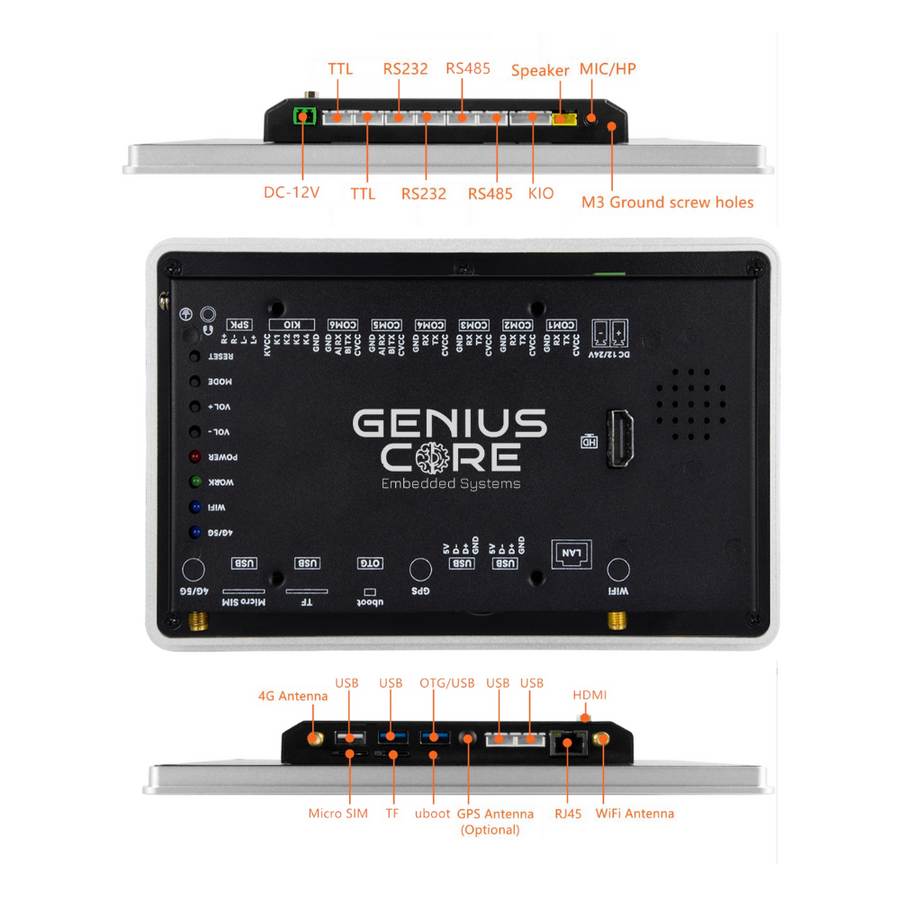

- USB: 2-way USB 2.0 socket,1-way USB OTG socket, 2-way USB hosts

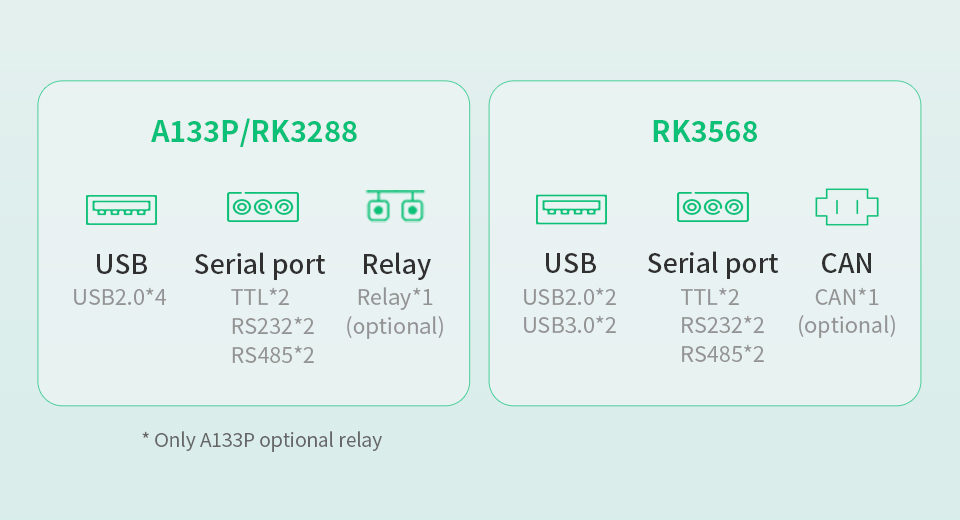

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485

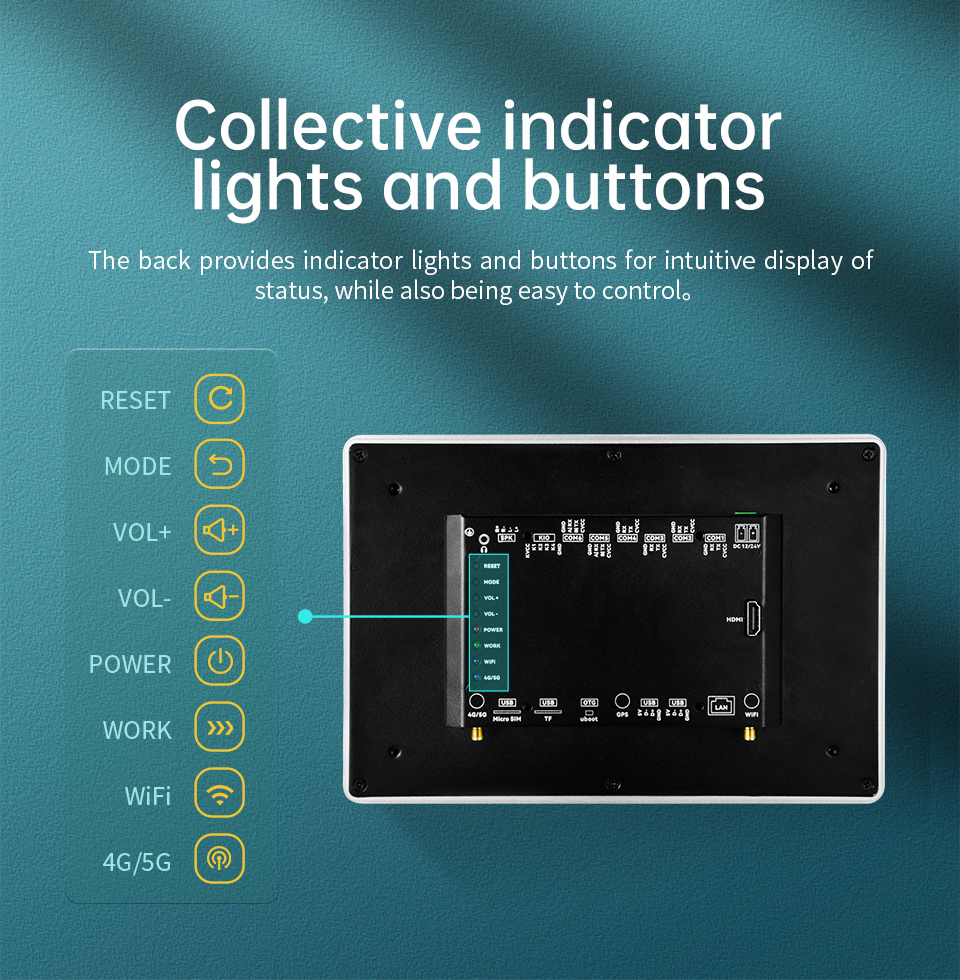

- Reset button, back button, volume + and volume -, burn button

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

- Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

- Working Voltage: 9-24V, typical value 12V

- Working Temperature:-10°C-60°C

- Storage Temperature: -20°C-70°C

- Display Dimension: 154.1*85.9mm

- Overall Dimension:  189.4*121.2mm

- Outer packaging size 233 * 160 * 52mm

- Weight: 0.78 kg, Package Weight: 0.90 kg

Empowering Advanced Control and Connectivity with the GeniusCore  ControlHUB Series

GeniusCore ControlHUB Aluminum Frame - Rockchip RK3288 Model provides a powerful solution for complex industrial applications. Driven by the Rockchip RK3288 4-Core A17 processor, clocked up to 1.8GHz, and the Mali-T764 GPU, this model is designed for high-speed processing in data-intensive environments. Available in 2GB+16GB and 4GB+32GB configurations, it supports extensive data handling.

This model features 1000Mbps Ethernet and HDMI 2.0 for enhanced connectivity, making it ideal for high-speed networking and display integration. Although access control is not supported, it maintains comprehensive peripheral connectivity through 2 USB 2.0 sockets, 1 USB OTG socket, and 2 USB hosts. Configurable 6 COM serial ports support expands its application range.

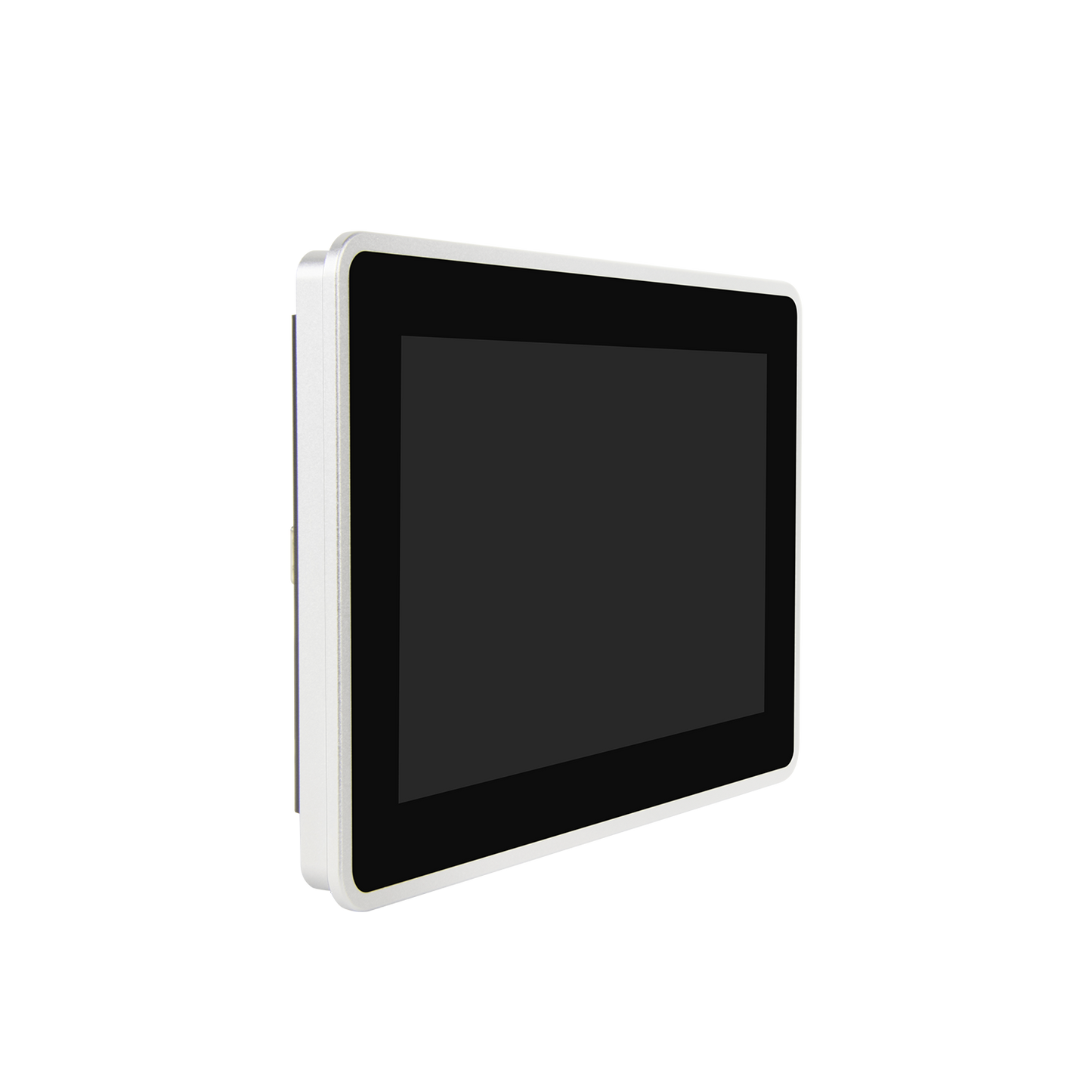

The RK3288 Model runs Android 7.1/5.1/6.0/8.1 (with optional Ubuntu 18.04/Debian 9), allowing for broad software compatibility. With optional 4G/5G, single-frequency WiFi 6 (dual-frequency available), and GPS with Beidou and GPS dual positioning, it’s suitable for remote access and IoT applications. The IP65-rated aluminum frame provides durability, protecting the device against dust and water ingress.

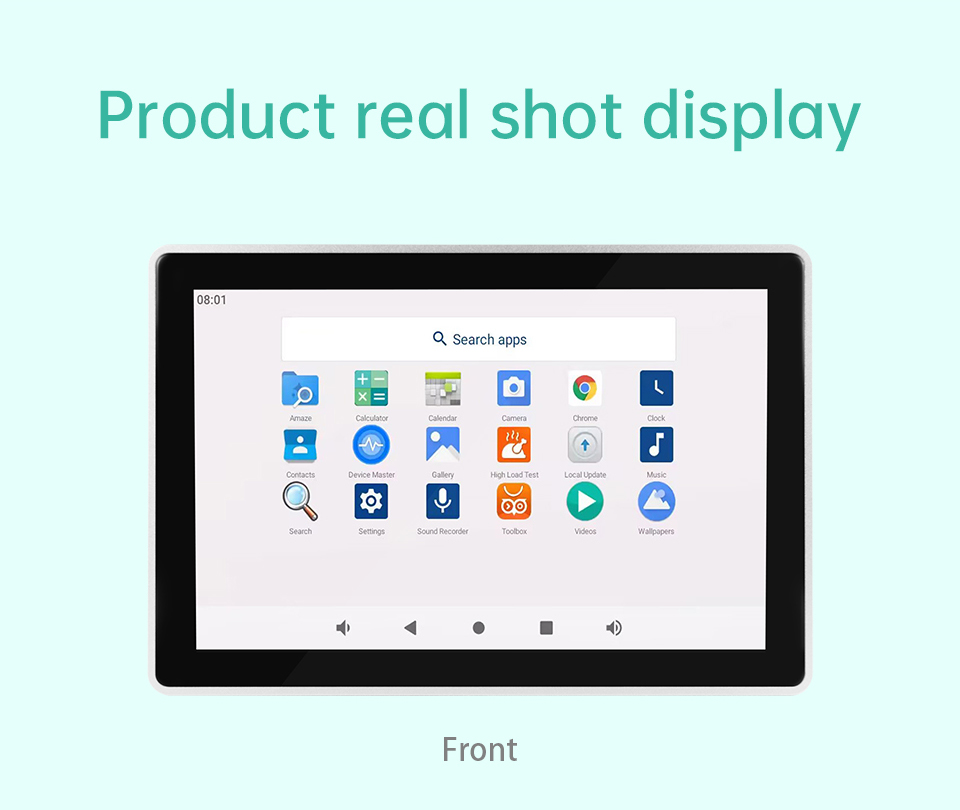

Equipped with a 7-inch 800x1280 IPS screen and 5-point capacitive touch functionality, this model ensures high-definition visuals and responsive touch interactions. With a wide power input range (DC12V ± 5%/DC24V ± 5%), it adapts well to different power environments. Backed by a 3-year warranty, the RK3288 model is a reliable choice for automation, infrastructure management, and industrial IoT applications.
