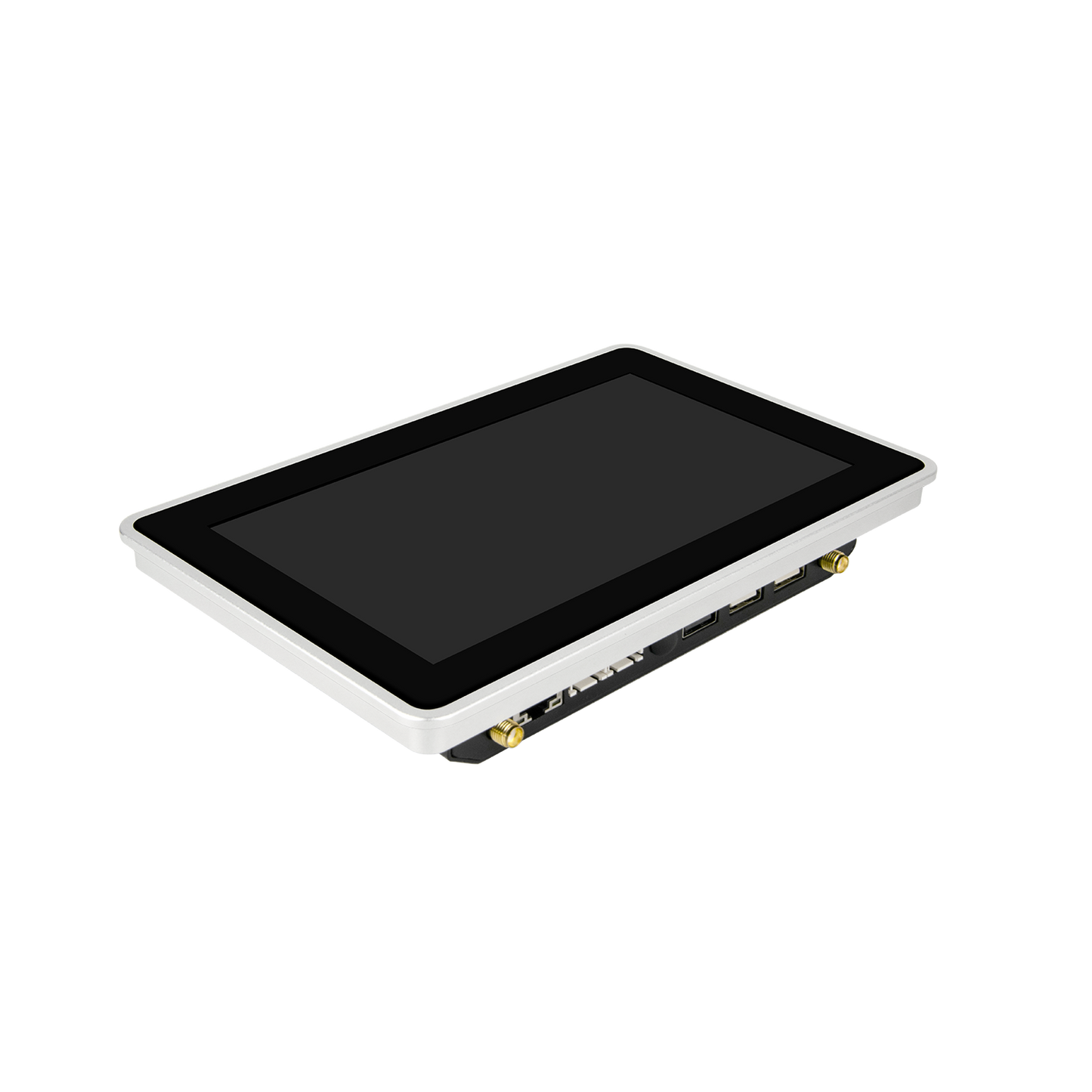

7 İnç A133P İşlemcili Android Endüstriyel HMI Panel PC – IPS Ekran, Alüminyum Gövde

GeniusCore Embedded Systems "ControlHUB Series" Aluminum Frame Multiport Panel PC

7" inch IPS Screen, All in One HMI Android Panel PC, A133P 1G RAM 8G ROM, Built in GPIO, Configurable 6COM TTL RS232 RS485, Optional Relay

Model: GFCX-A070L133P-1G08

ControlHUB Aluminum A133P Standard Configuration:

- CPU: Allwinner A133P Quad Cortex-A53, Clocked Up to 1.8GHz

- GPU: GE8300

- Line Output: Support standard left and right channel line output (pin header)

- Capacitive Touch Panel

- Memory: Default 1GB (2GB/4GB Optional)

- Storage: Default 8GB EMMC NAND Chips, Expandable Up to 128GB

- External Storage: Support TF Card/U Disk/UART/OTG

- AI Chips (optional): Supports Megvii face chip and provides algorithm hardware authorization

- Ethernet: 10/100M Auto-adaptive Ethernet RJ45 Interface + 2 Chips PoE PD Socket

- Wifi Module: Internal XR829 Module, Support IEEE 802.11 b/g/b + HS/BT v4.2, default Single-frequency 2.4GHz WiFi Module.

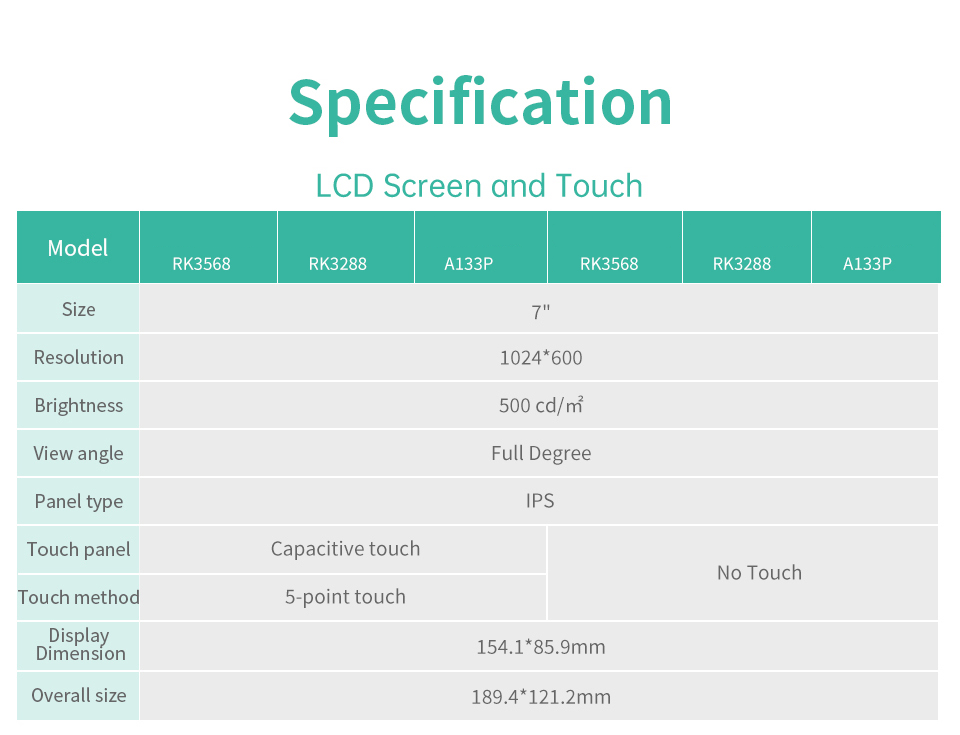

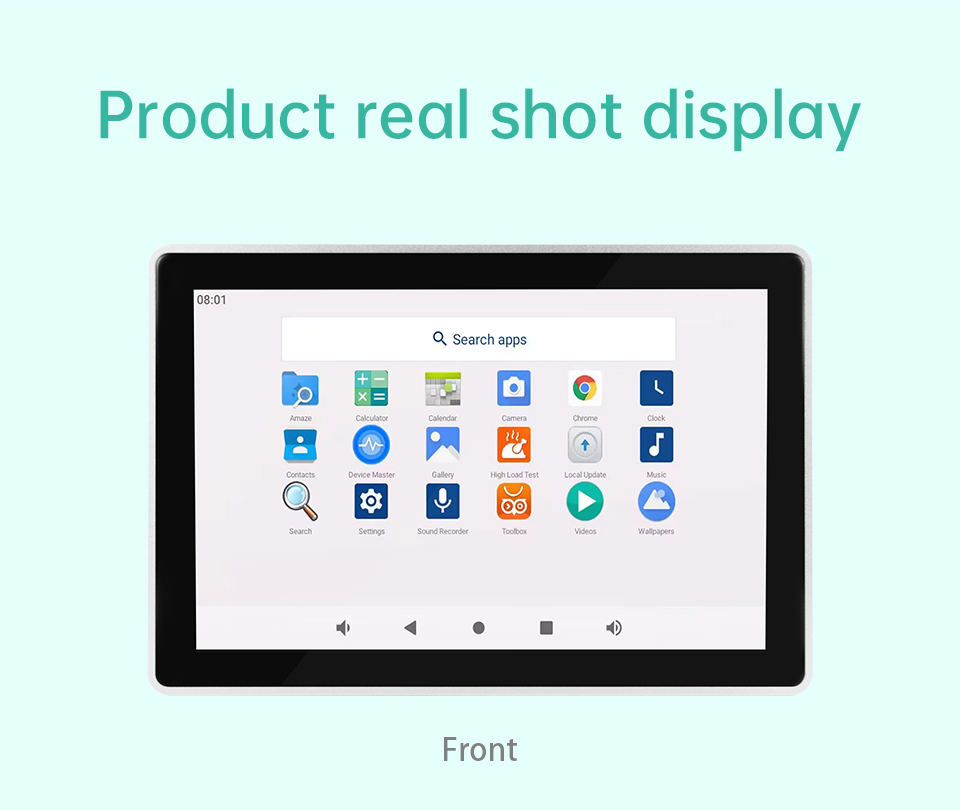

- Screen: 7 Inch, 1024*600 Pixel, IPS Capacitive LCD Panel

- Brightness: 500 cd/m2

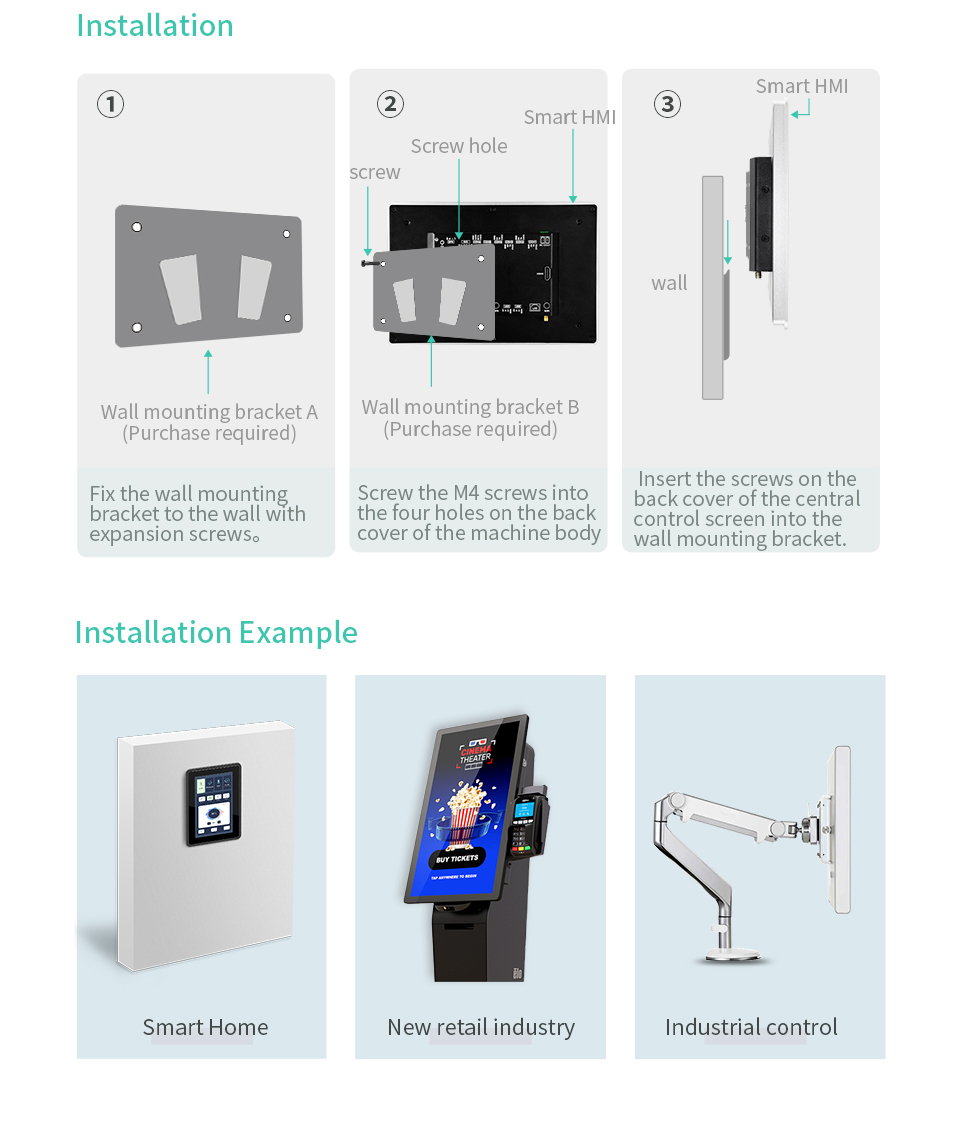

- Install Angle: Support 0°, 90°, 180° and 270° Multi-Angle Display Installing

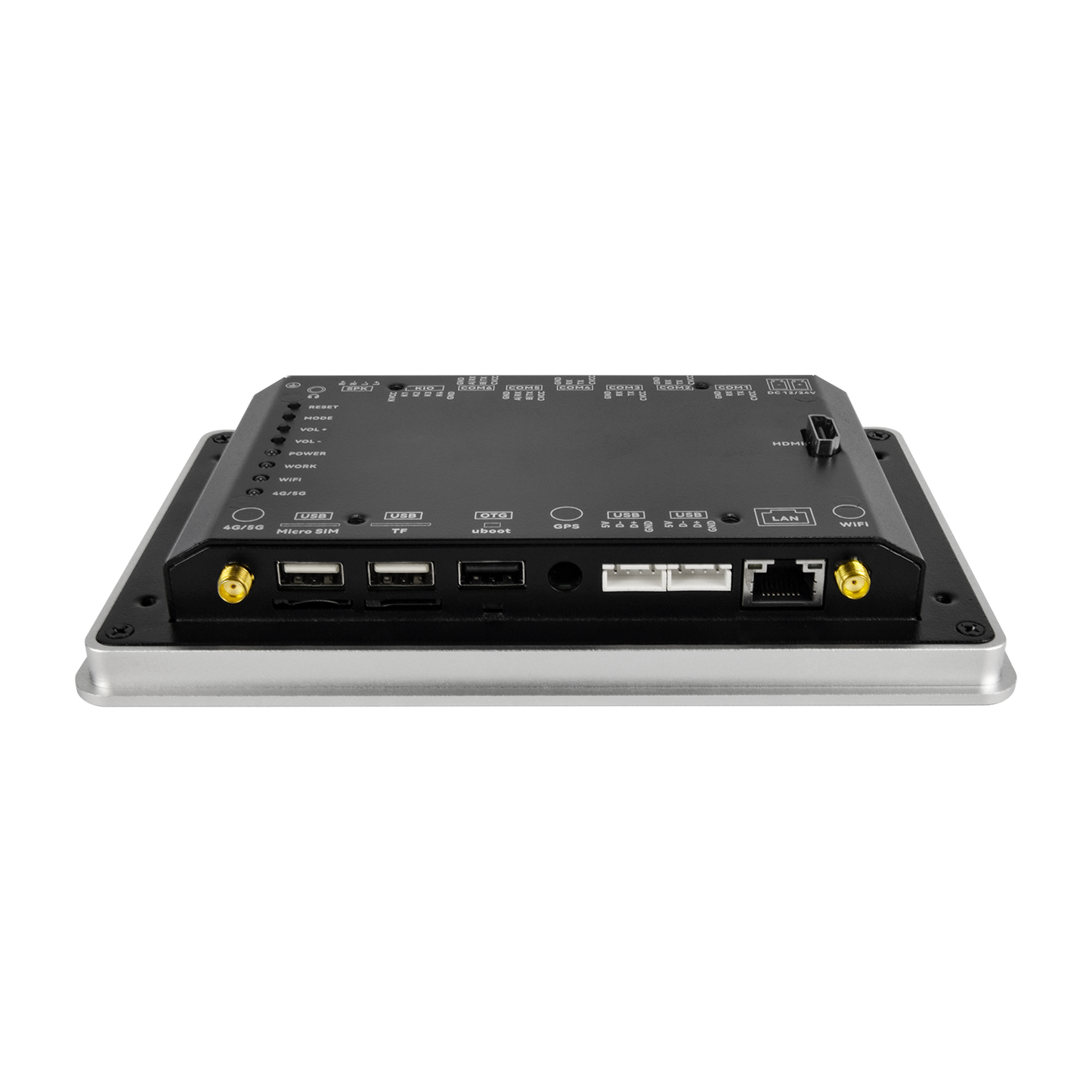

- USB: 1*External USB 2.0 Socket, 1*External USB-OTG Socket, Support USB Camera Within 2M Pixels

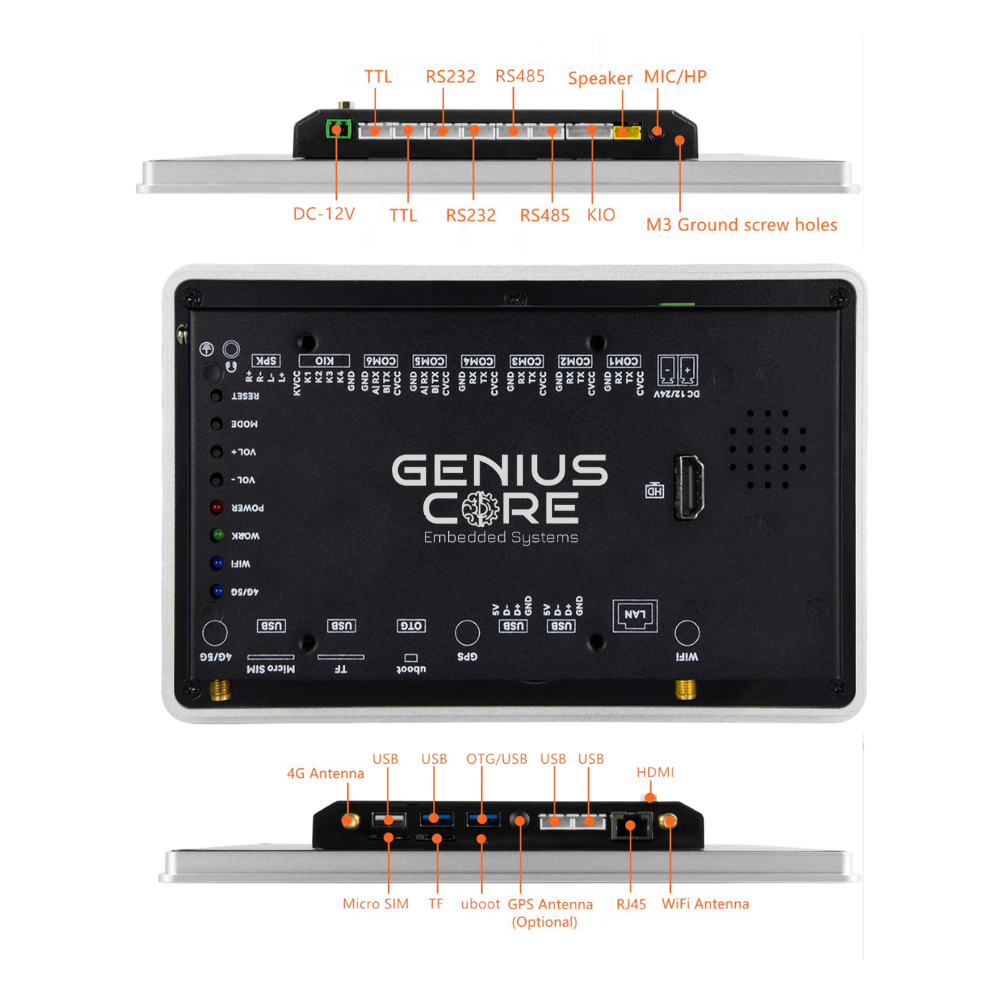

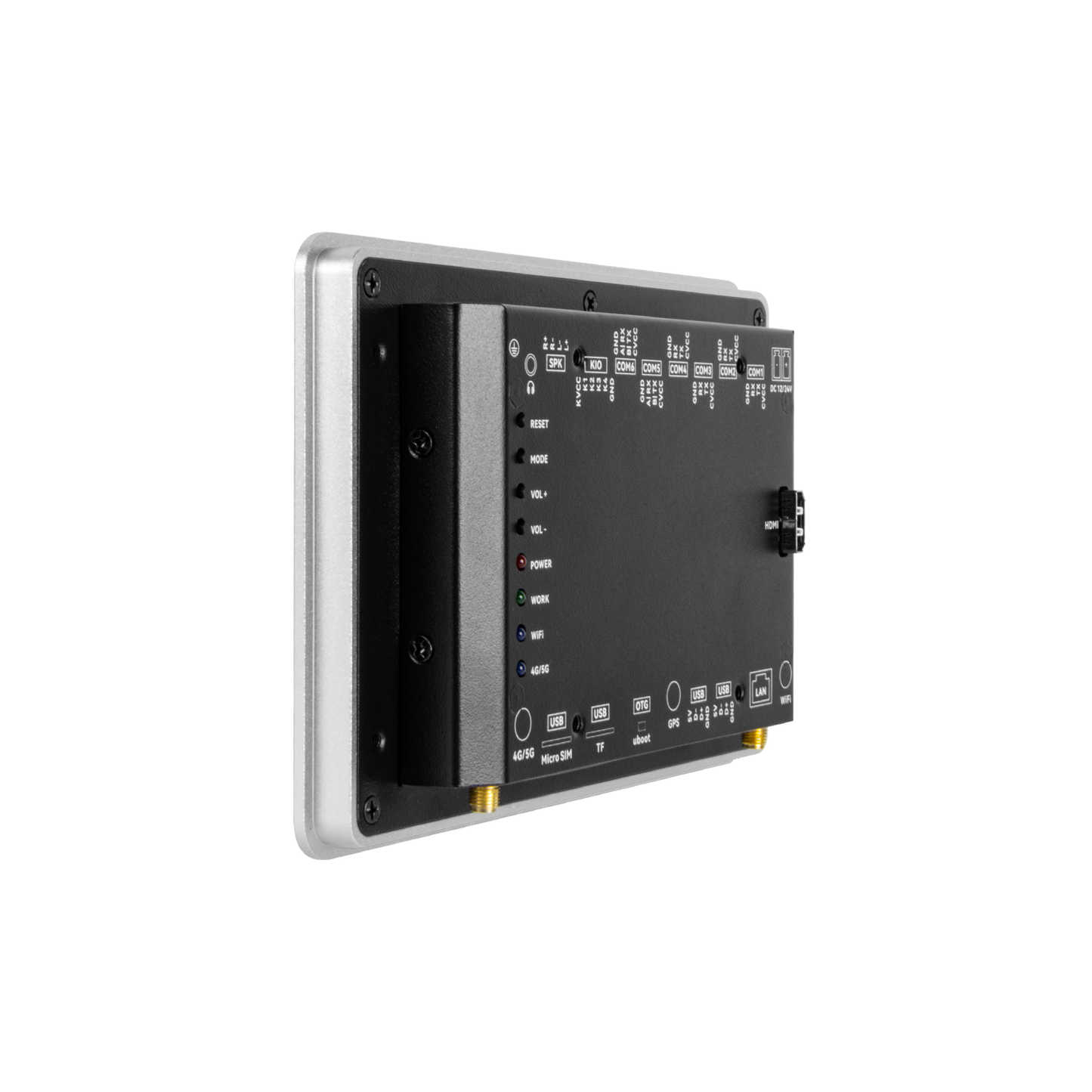

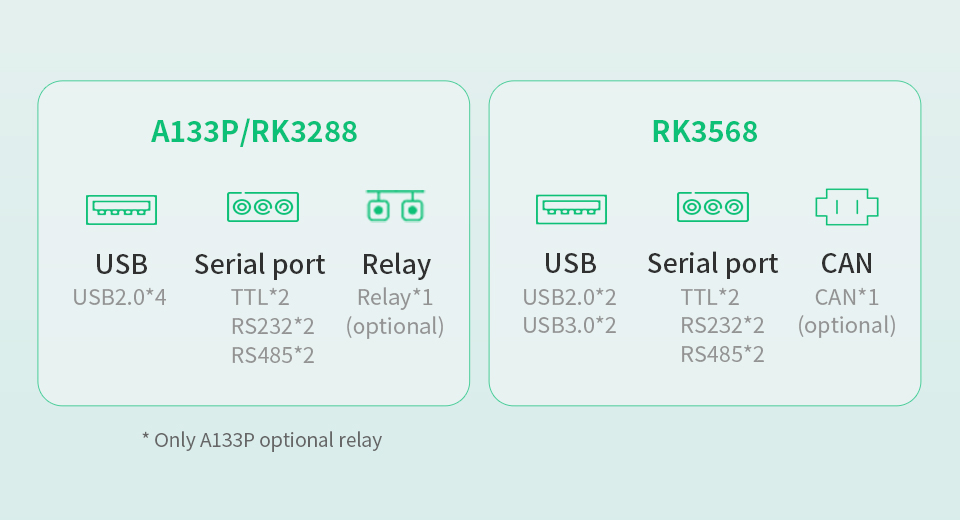

- Serial Interface: 2 COM Ports: Default: RS232, Optional Configurable TTL/RS232/RS485 (Data Serial Port and Debugging Serial Port)

- 3-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

- Relay (Optional): Single Pole Double Throw Access Control Relay Signal

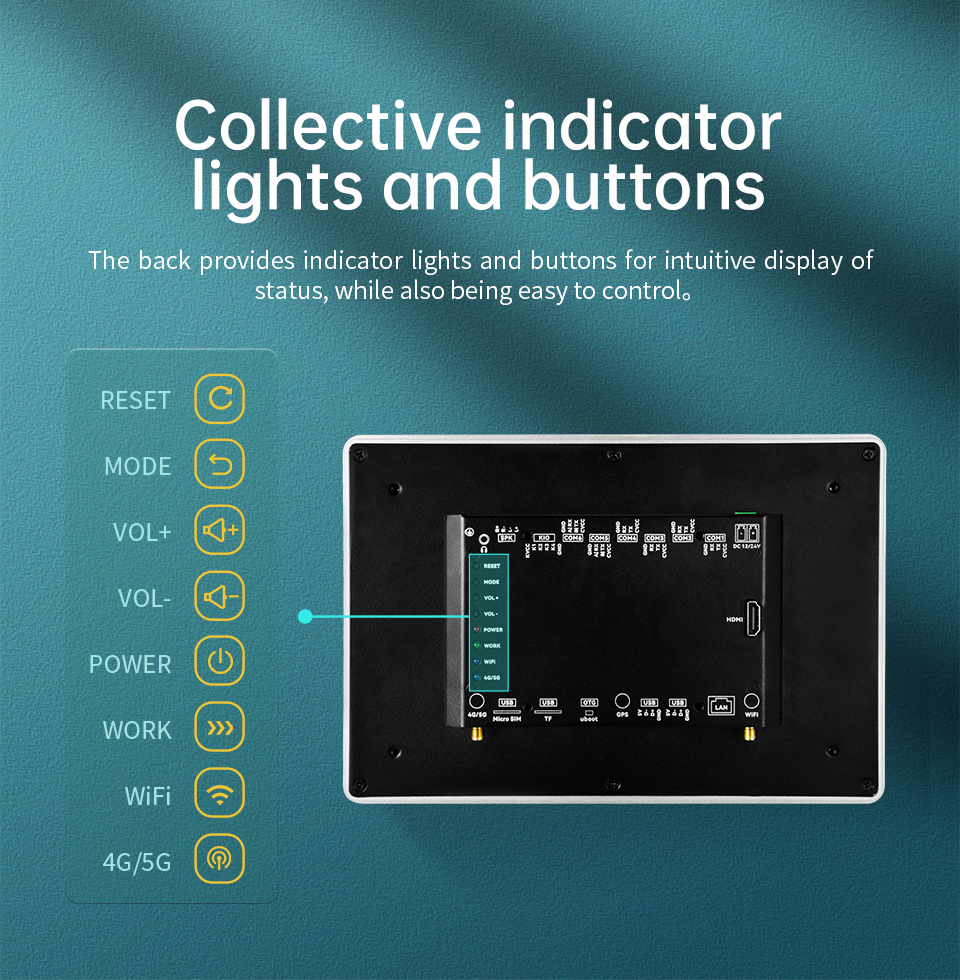

- Reset and Burn Button

- TF Card: Self-elastic TF Card Socket, Supports Up to 256GB TF Card

- Amplifier 80•6W Dual-channel Audio Amplifier Output

- Mic 1-channel Single-ended MIC Input (Pin Header Interface)

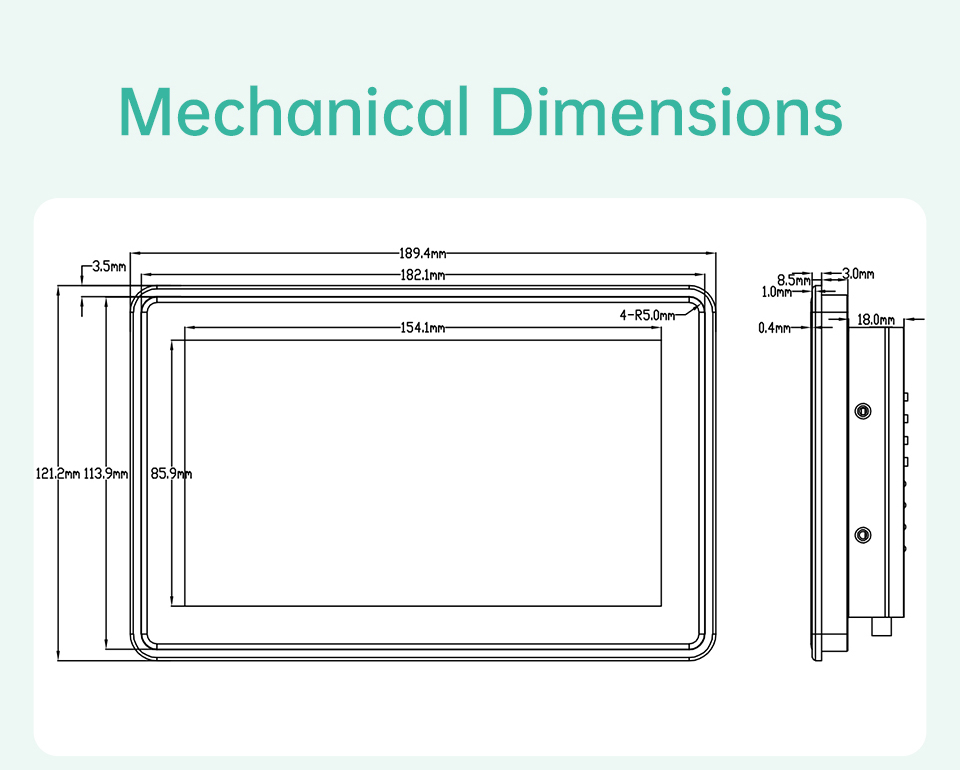

- Overall Dimension: L*W*H 189.4*121.2mm

- Display Dimension:154.1*85.9mm

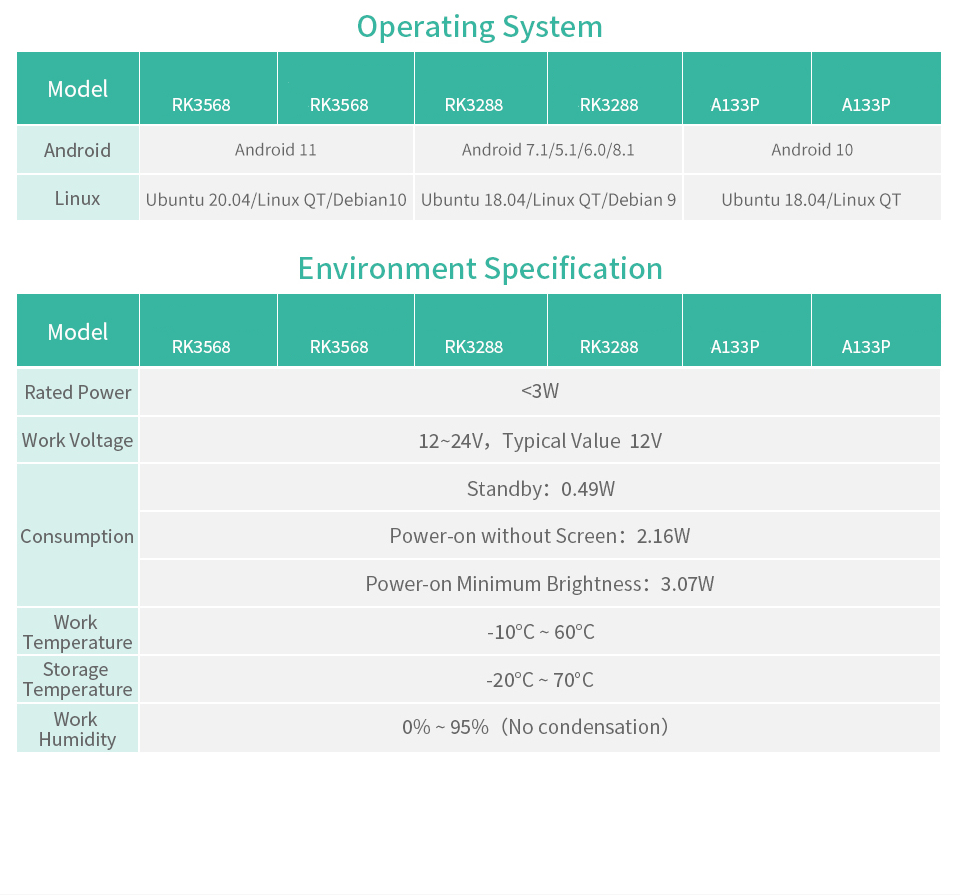

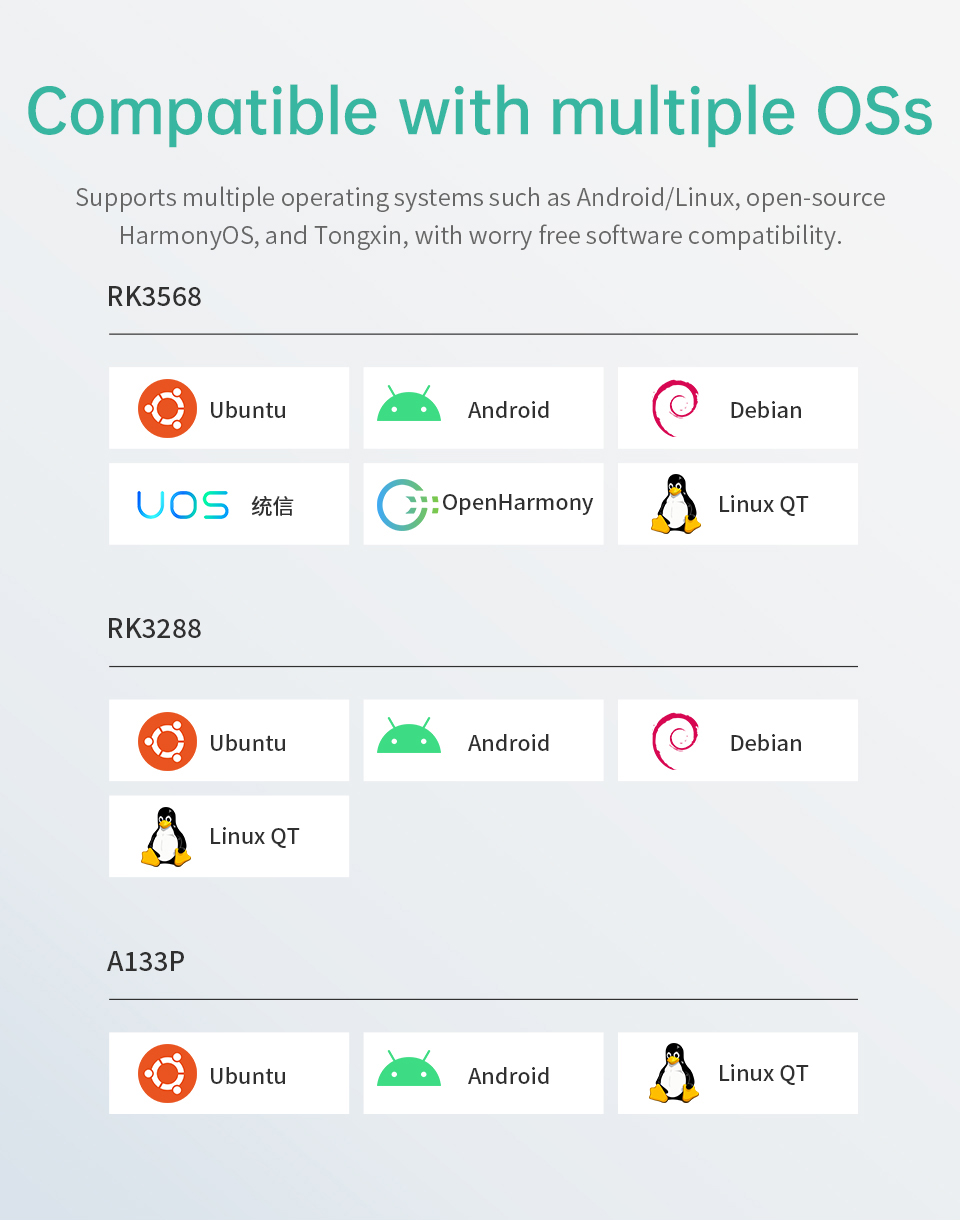

- Operating System: Default Android 10.0, Linux QT Optional

Empowering Advanced Control and Connectivity with the GeniusCore's ControlHub Aluminum Frame Multiport Panel PC

GeniusCore Control Hub Aluminum - A133P Model is engineered to enhance industrial and IoT environments with advanced control and connectivity. Powered by the Allwinner A133P 4-Core A53 processor, clocked up to 1.8GHz, and the GE8300 GPU, this model offers robust performance tailored for real-time monitoring and data-intensive tasks. Available in 1GB+8GB, 2GB+16GB, and 4GB+32GB configurations, it provides flexibility to meet various operational needs.

Built with an IP65-rated aluminum frame, this panel PC resists dust and water ingress, ensuring durability in demanding environments. Connectivity options include 100Mbps Ethernet and optional serial ports (COM and Uart6), facilitating seamless integration with external devices. Although HDMI is not supported, this model includes 2 USB 2.0 sockets, 1 USB OTG socket, and 2 USB hosts for peripheral connections.

Running on Android 10 (with optional support for Ubuntu 18.04/Linux QT), it adapts easily to different software requirements. Additional features such as optional 4G/5G, single-frequency WiFi 6 (with dual-frequency as an option), and GPS with dual positioning (Beidou and GPS) extend its capabilities, making it ideal for applications like fleet management and remote monitoring.

With flexible power input options of DC12V ± 5%/DC24V ± 5%, a 7-inch 800x1280 IPS screen, and 5-point capacitive touch functionality, the Genova FlexCOM L1 A133P Model is a versatile tool for industrial automation, smart infrastructure management, and more. Backed by a 3-year warranty, it guarantees long-term reliability and performance.
