10.1 İnç RK3288 İşlemcili Android Endüstriyel HMI Panel PC – IPS Ekran, Alüminyum Gövde

GeniusCore Embedded Systems "ControlHUB Series" Aluminum Frame Multiport Panel PC

10.1" inch IPS Screen, All in One HMI Android Panel PC, RK3288 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485

Model: GFCX-A101L3288-2G16

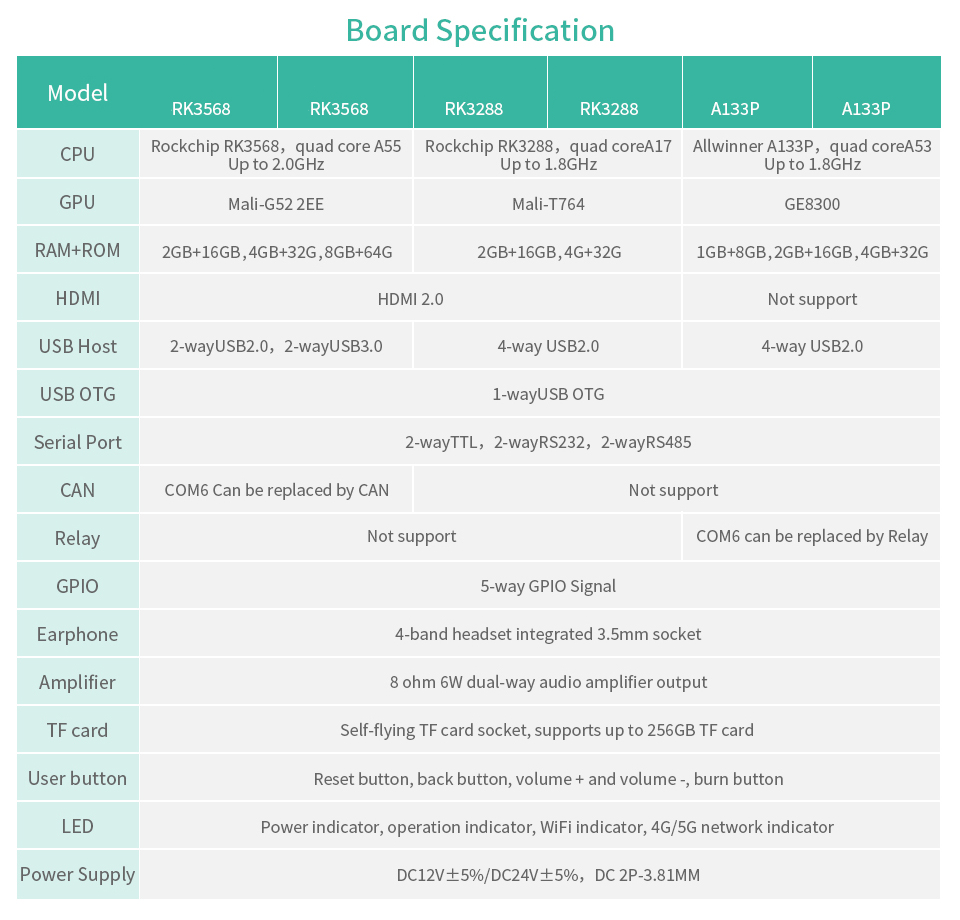

ControlHUB Aluminum RK3288 Standard Configuration:

- CPU: RK3288 2GB RAM 16GB ROM Quad Core A17, Up to 1.8GHz

- GPU: Mali-T764

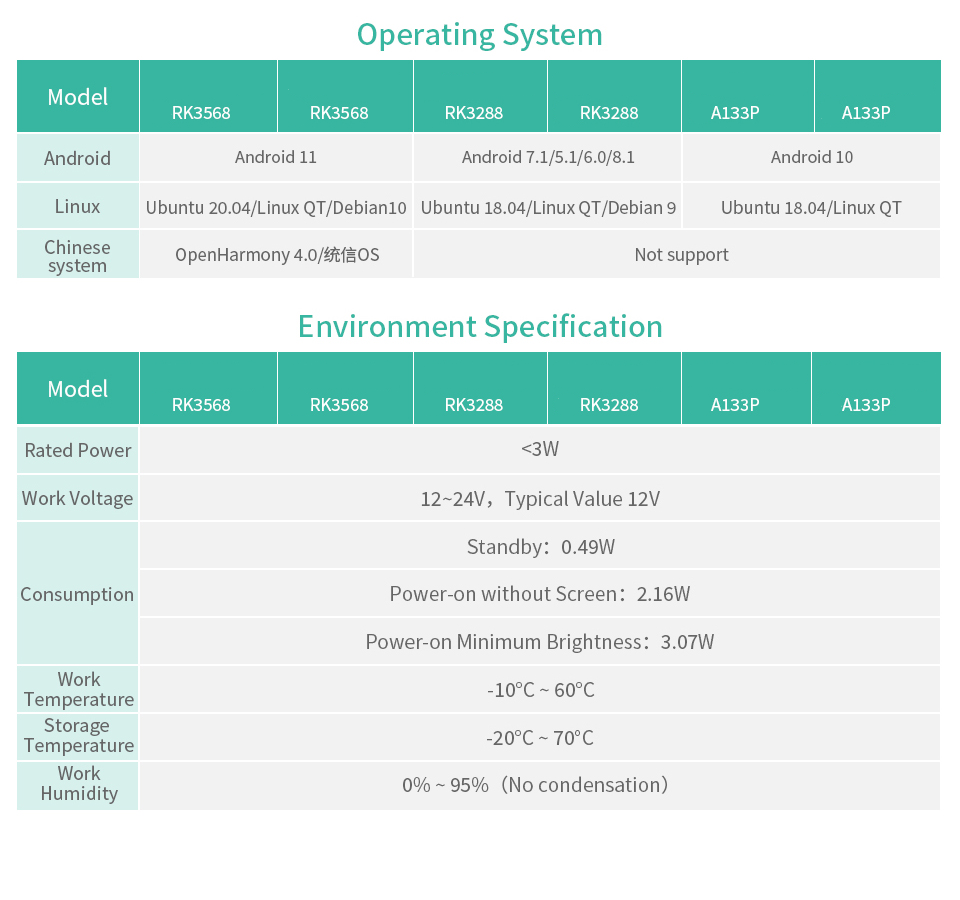

- Operating System: Android 7.1 / 5.1 / 6.0 / 8.1 / Ubuntu 18.04 / Linux QT / Debian 9

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G Optional)

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

- External Storage: Support TF Card Up to 256GB /OTG

- Ethernet: 1000Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20，RG200U(5G)

- 1-way Micro SIM card slot

- GPIO: 5-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

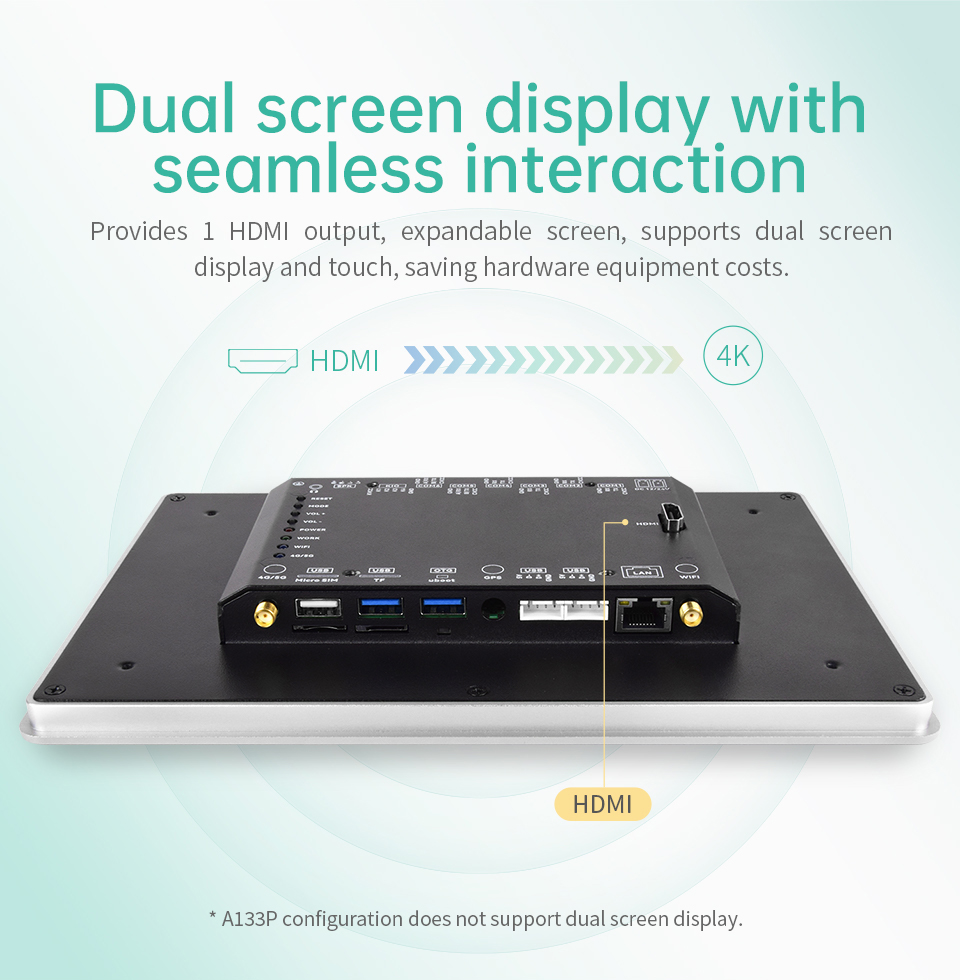

- HDMI 2.0 Built in, supports Dual screen display

- GPS (Optional): EC800M，Supports dual positioning of Beidou and GPS

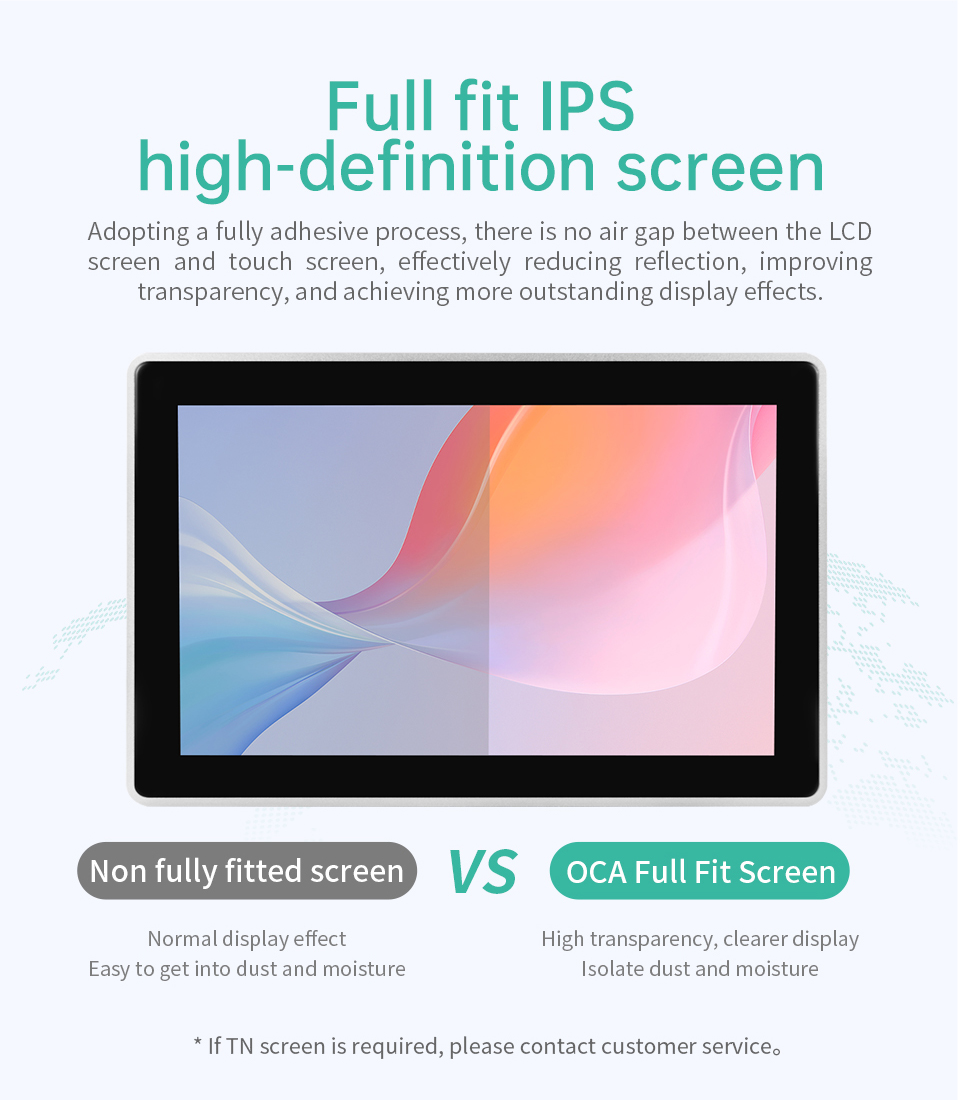

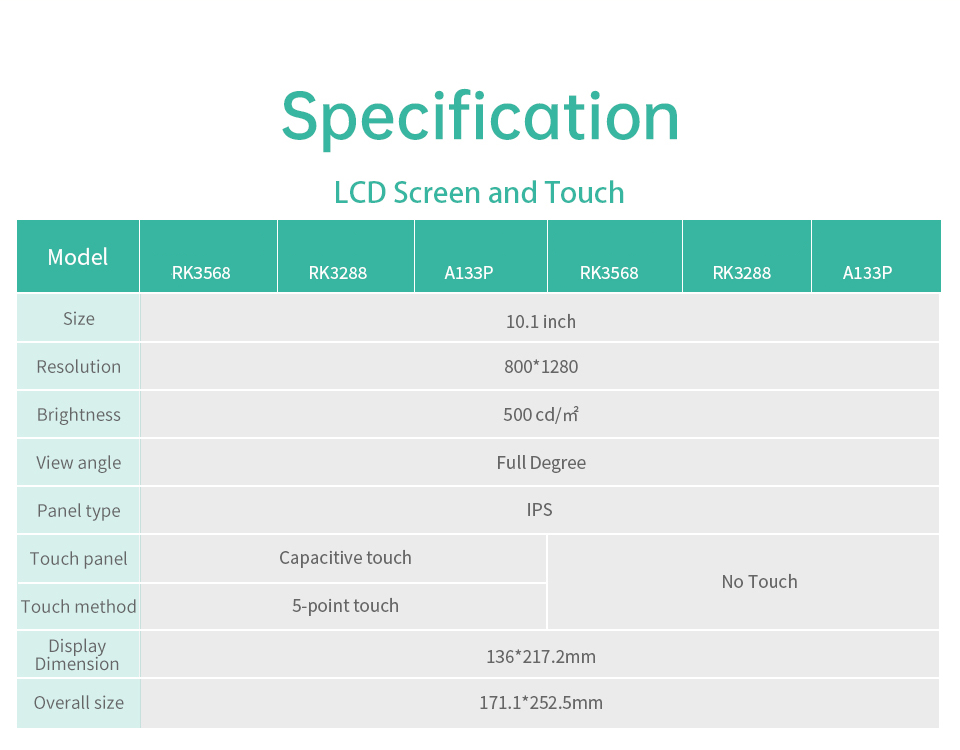

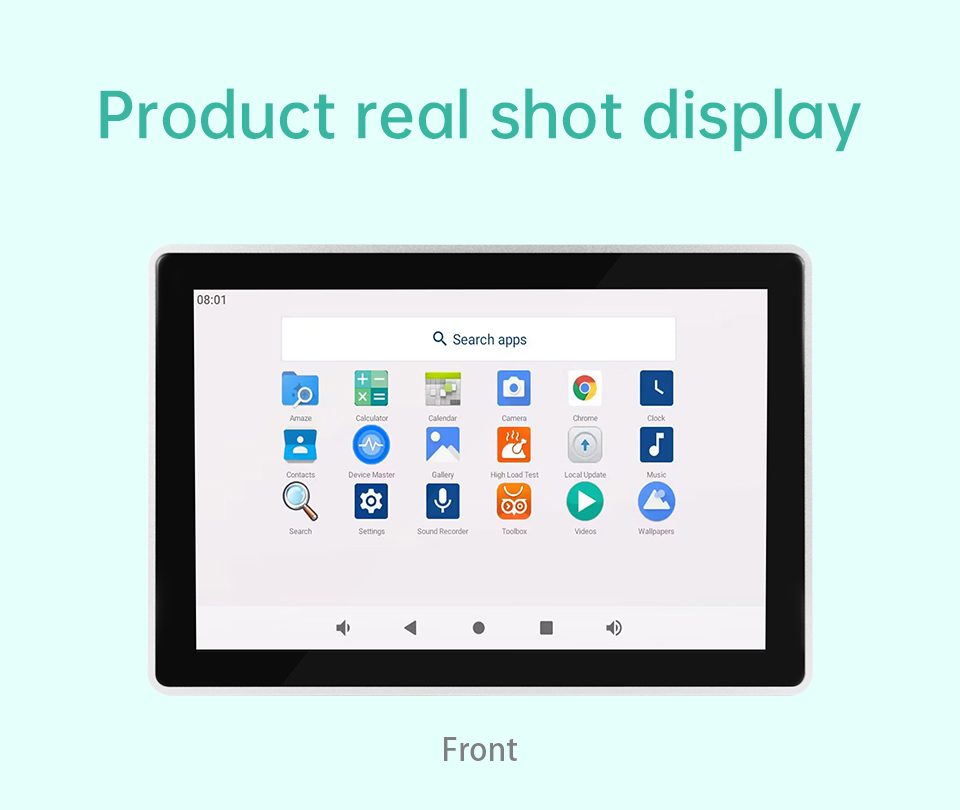

- Screen: 10.1 Inch, 800*1280 Pixel, IPS Capacitive LCD Panel, display scale 5:8

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

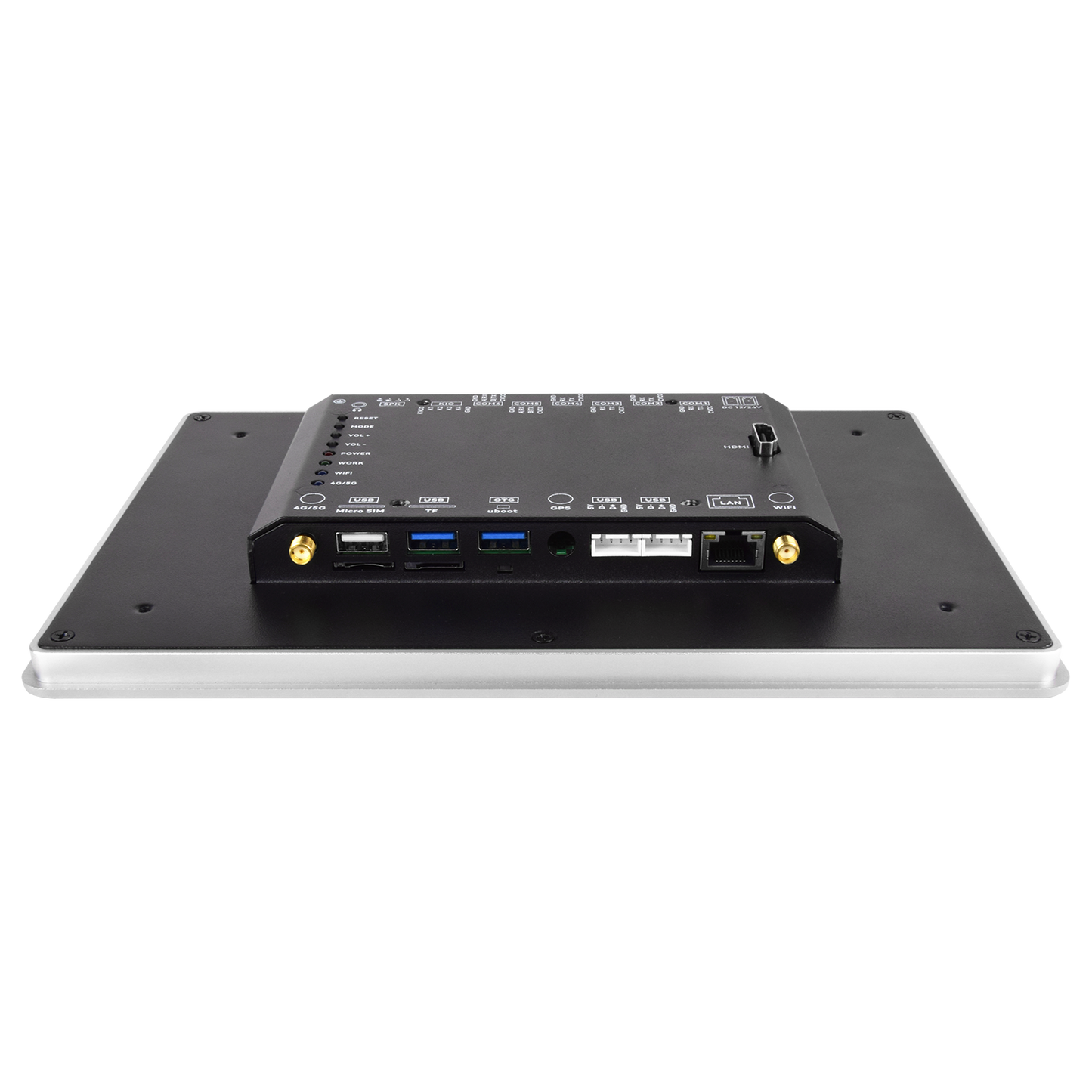

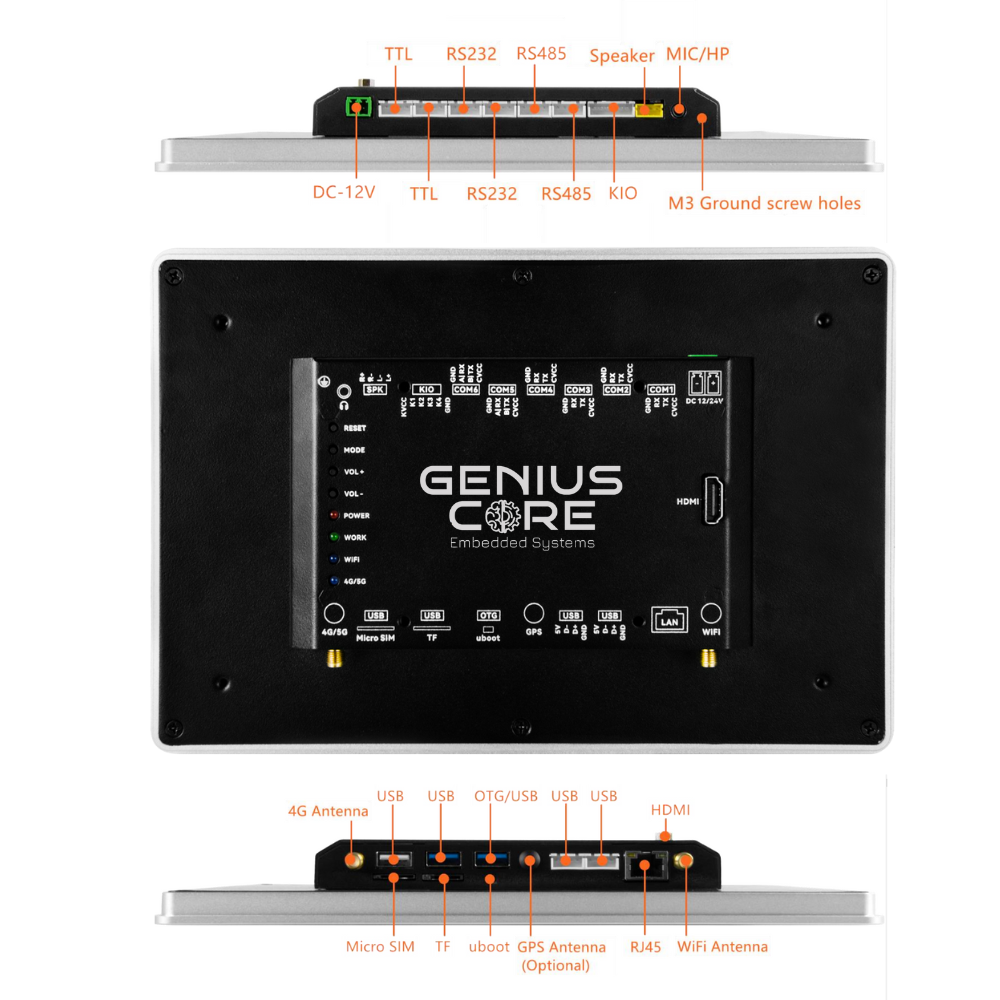

- USB: 2-way USB 2.0 socket,1-way USB OTG socket, 2-way USB hosts

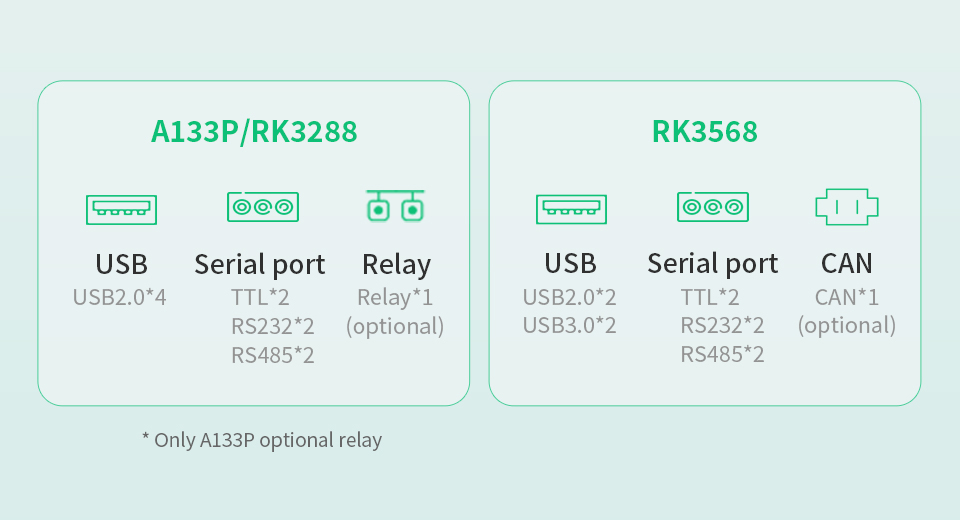

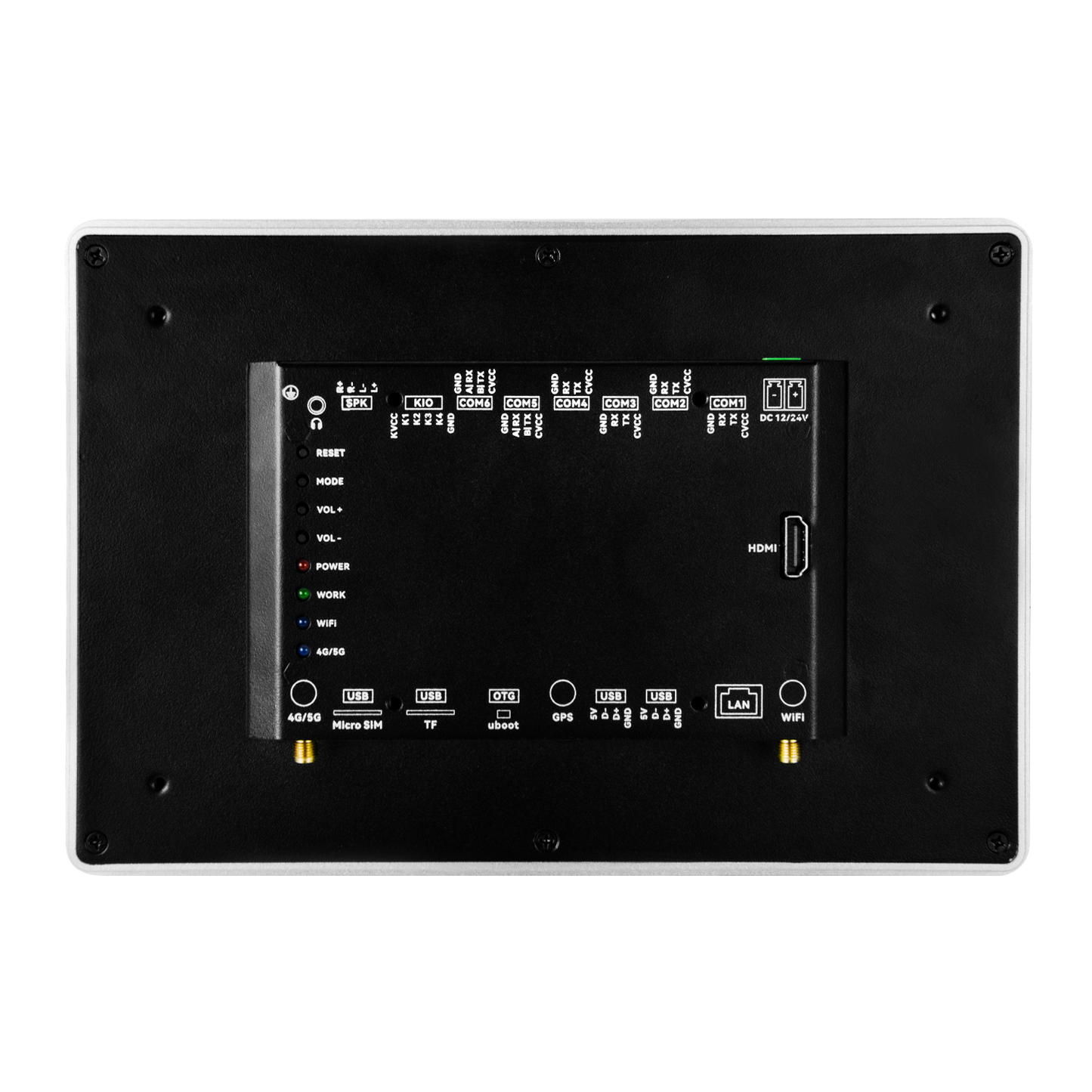

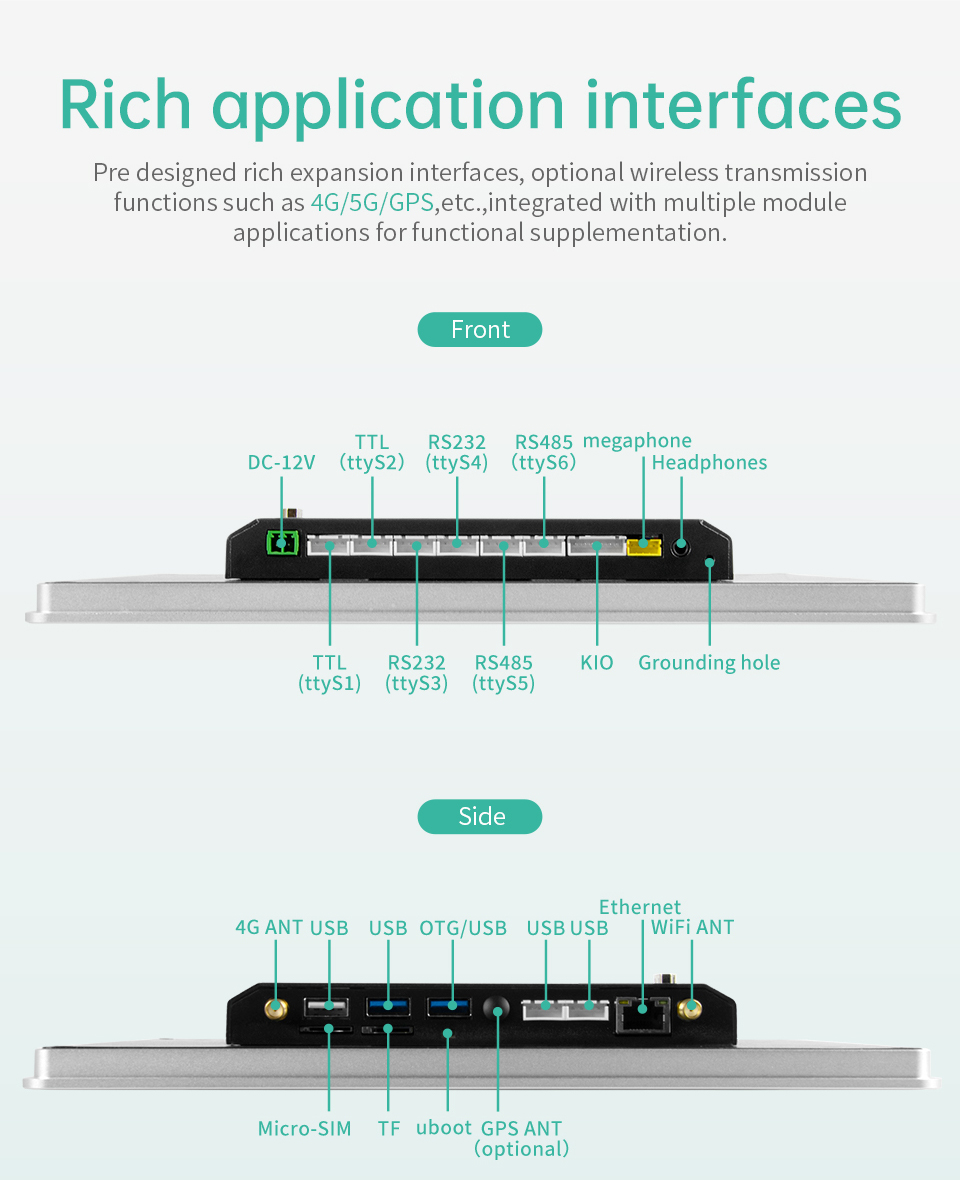

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485

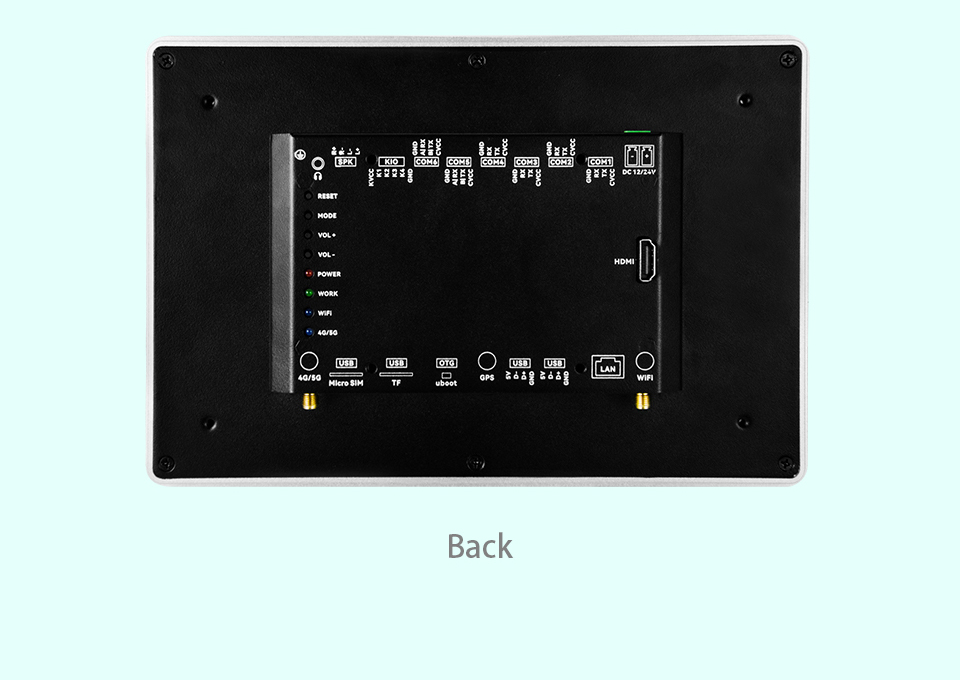

- Reset button, back button, volume + and volume -, burn button

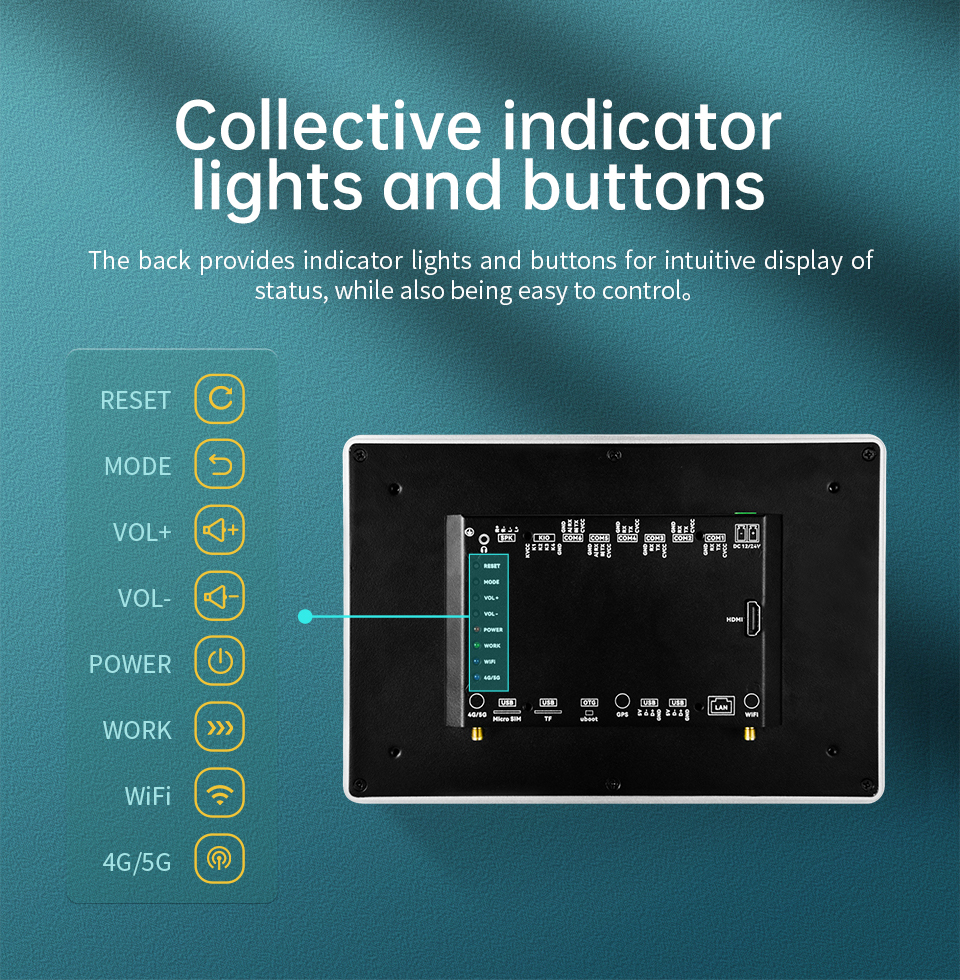

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

- Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

- Working Voltage: 9-24V, typical value 12V

- Working Temperature:-10°C-60°C

- Storage Temperature: -20°C-70°C

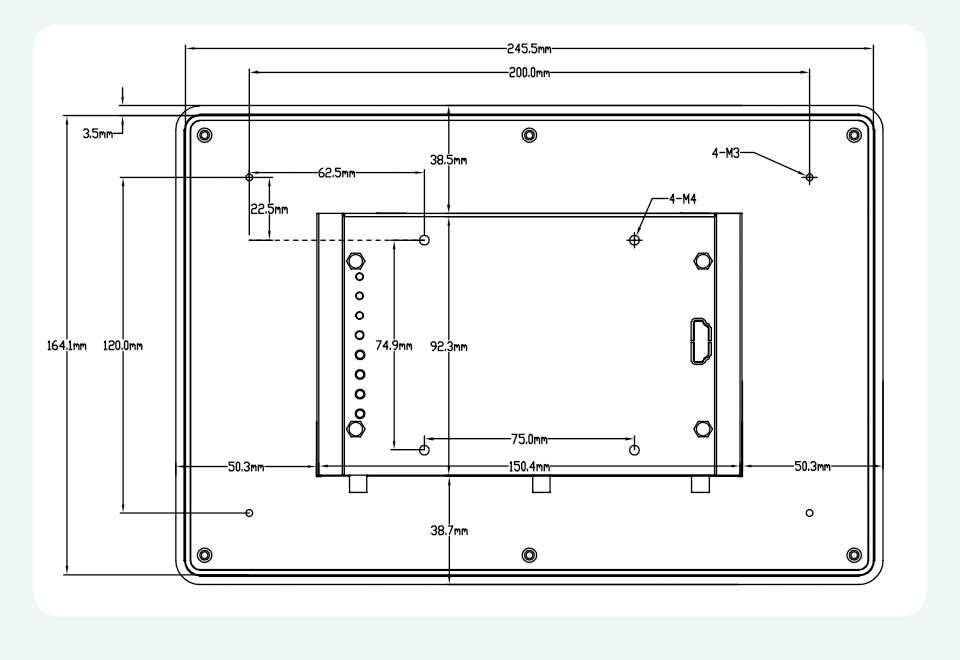

- Display Dimension W*H: 136*217.2mm

- Overall Dimension:  171.1*252.5mm

- Outer packaging size 300 * 205 * 52mm

- Weight: 1.5 kg, Package Weight: 1.8 kg

Enhance Industrial Efficiency with the GeniusCore ControlHUB Series

GeniusCore ControlHUB Aluminum Frame - 10.1-Inch Rockchip RK3288 Model provides a high-performance solution for complex industrial tasks. Driven by the Rockchip RK3288 4-Core A17 processor clocked up to 1.8GHz and the Mali-T764 GPU, this model is designed for high-speed data processing and intensive applications. It is available in 2GB+16GB and 4GB+32GB memory and storage configurations to meet different operational requirements.

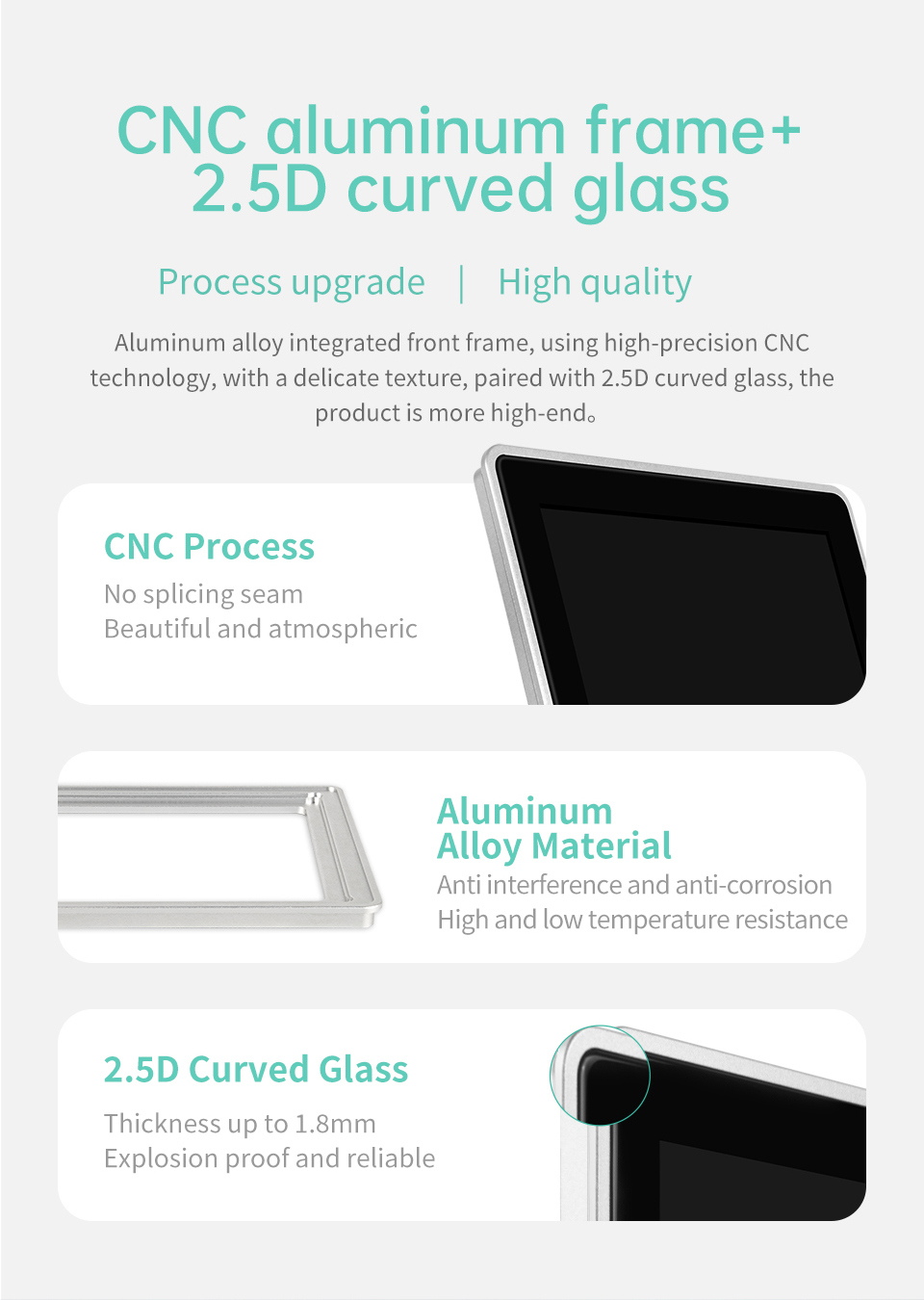

The 10.1-inch 800x1280 IPS display with 5-point capacitive touch ensures detailed visuals and responsive interaction, ideal for monitoring and control applications. Built with an IP65-rated aluminum frame, it withstands harsh environments, while 1000Mbps Ethernet and HDMI 2.0 provide high-speed connectivity and display integration. Although access control is not supported, it includes configurable 6 COM serial ports for flexible industrial connections.

This model supports Android 7.1/5.1/6.0/8.1 (with optional Ubuntu 18.04/Debian 9), allowing for wide compatibility with various software needs. Additional features like optional 4G/5G, single-frequency WiFi 6 (optional dual-frequency), and GPS with dual positioning make it ideal for connected industrial environments. Flexible power input options (DC12V ± 5%/DC24V ± 5%) ensure consistent operation across power conditions. The RK3288 10.1-inch model, backed by a 3-year warranty, is a robust choice for industrial automation, smart infrastructure, and IoT integration.
