Banana Pi

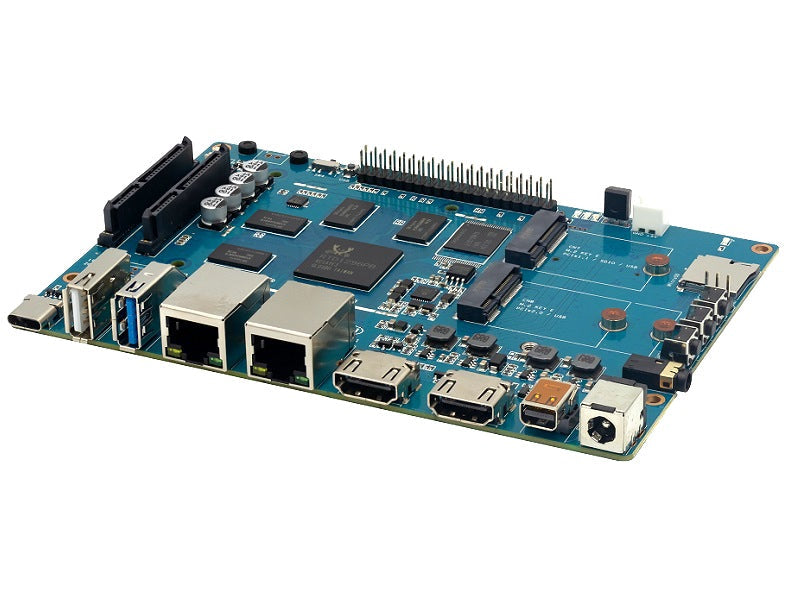

Banana Pi BPI-W2 Router Kartı – (2G DDR4+8G eMMC)

6,975.00TL +KDV

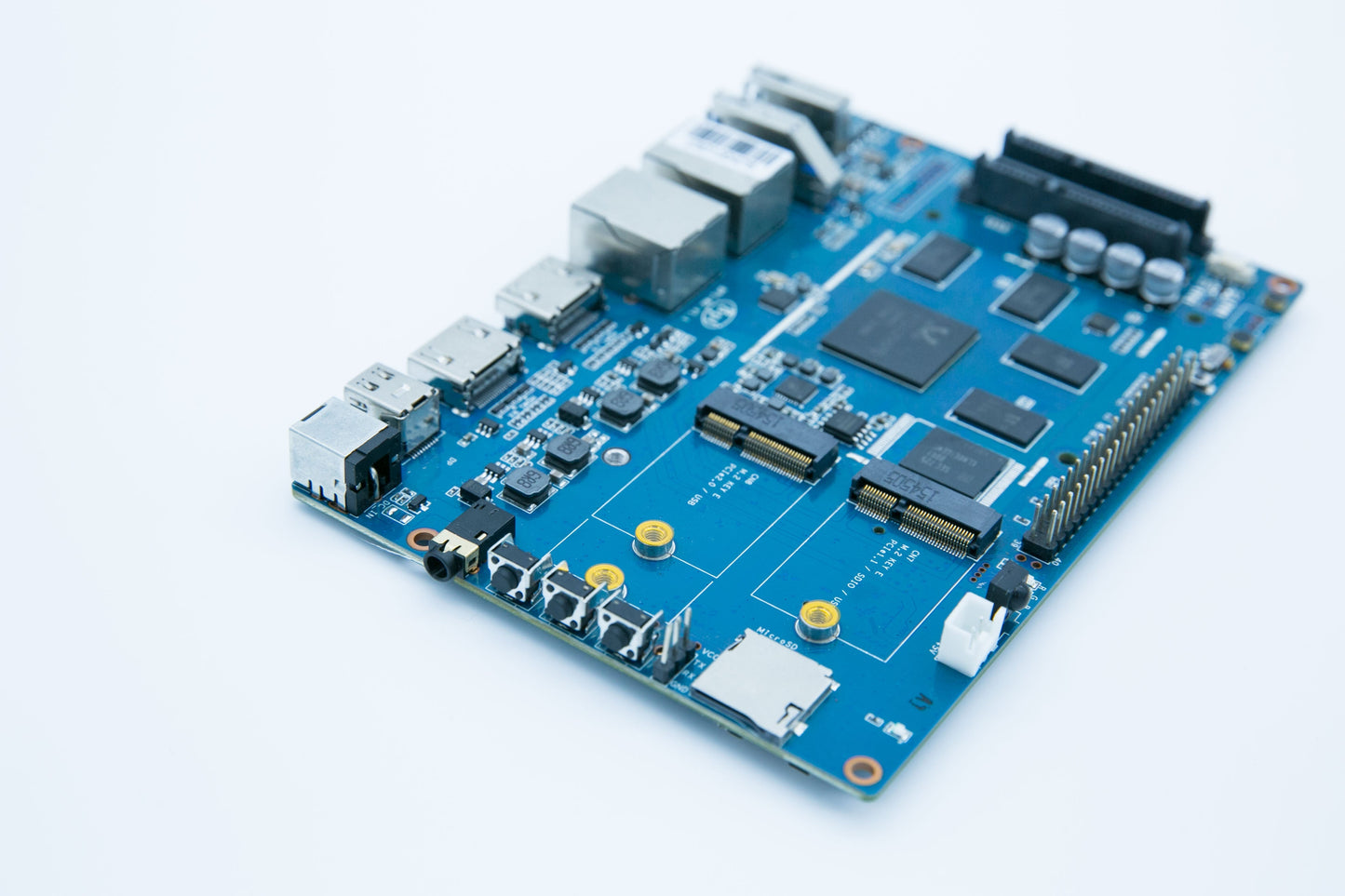

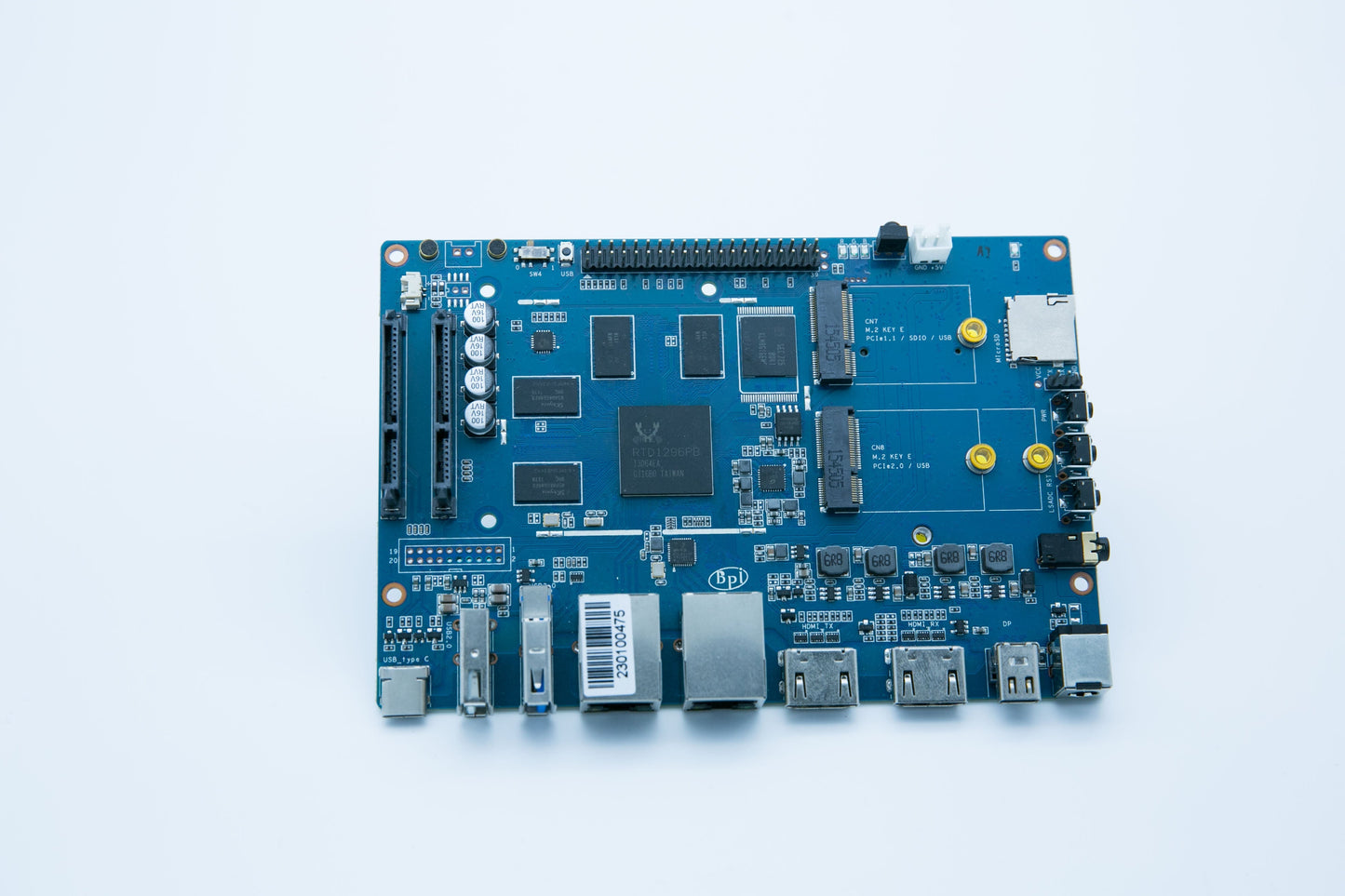

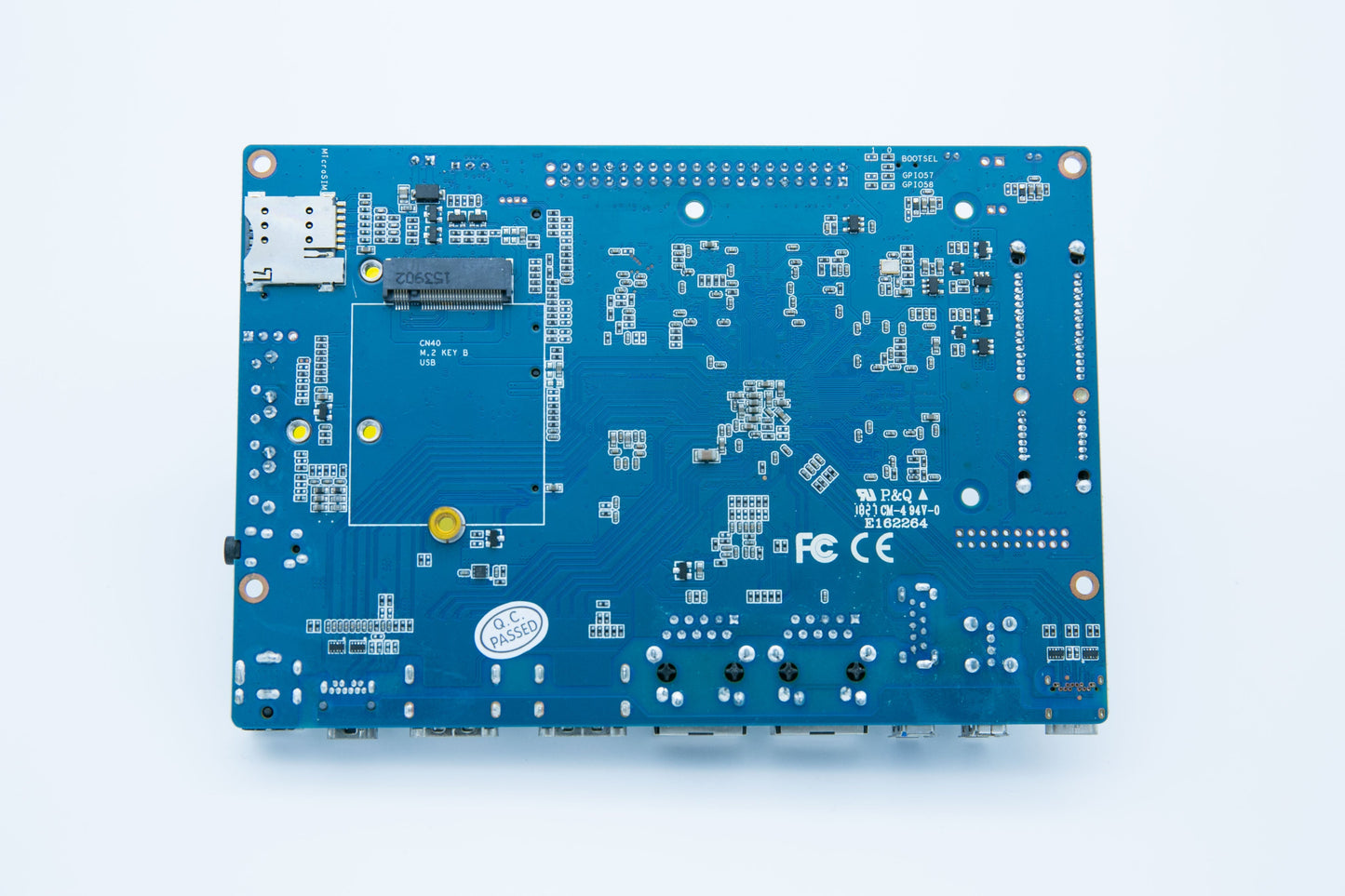

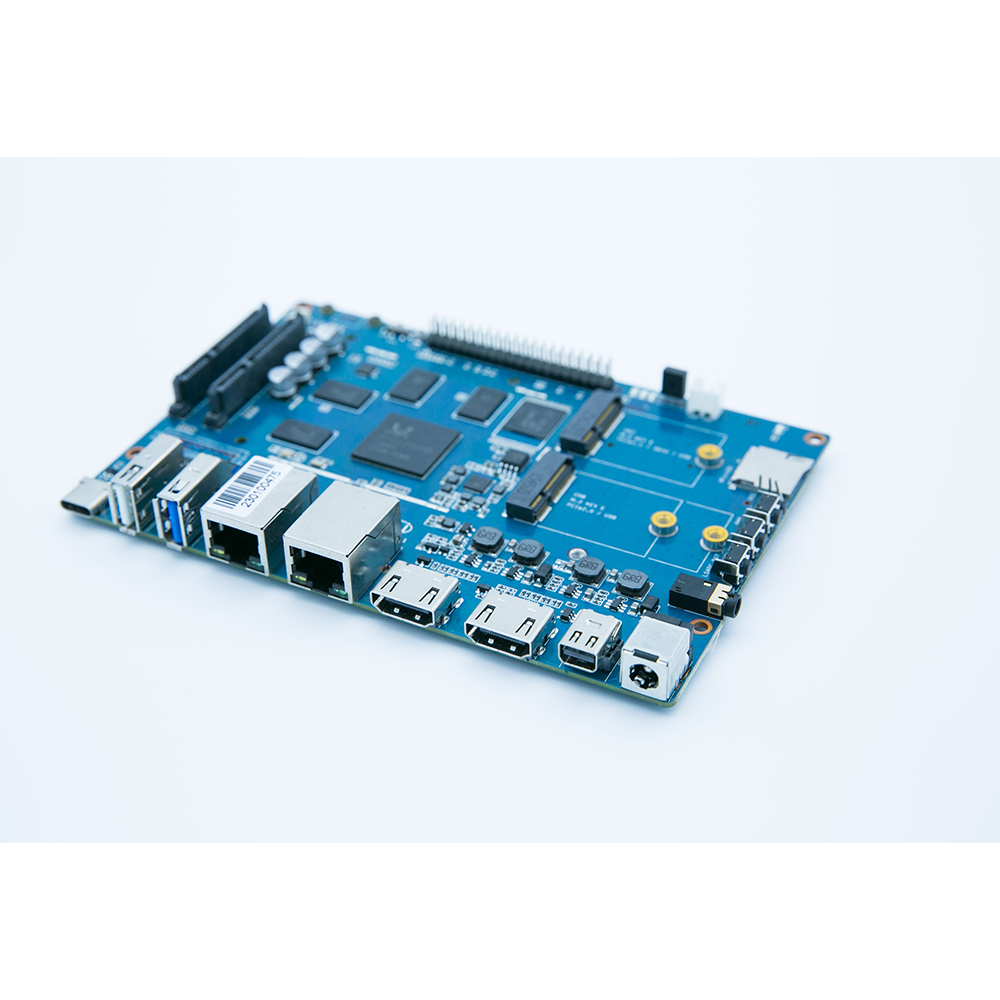

Banana Pi BPI-W2 Router Development Board– RTD1296 Cortex-A53

SKU BPI-W2

Banana Pi BPI-W2 Router Development Board– RTD1296 Cortex-A53 — otomasyon, edge ve OEM projeleri için endüstriyel / gömülü bilgisayar donanımı. Genova Donanım.

Öne çıkanlar
Sürekli çalışma için endüstriyel sınıf tasarım
Otomasyon, HMI ve gömülü kurulumlara uygun
Sipariş kodu: BPI-W2
Teknik özellikler
SKU BPI-W2
Ürün Banana Pi BPI-W2 Router Development Board– RTD1296 Cortex-A53
Kategori BPI Boards
Uygulama Otomasyon, gömülü bilgisayar, edge / IoT, OEM entegrasyon

Detaylı I/O ve bellek seçenekleri konfigürasyona bağlıdır. Datasheet için bize ulaşın.

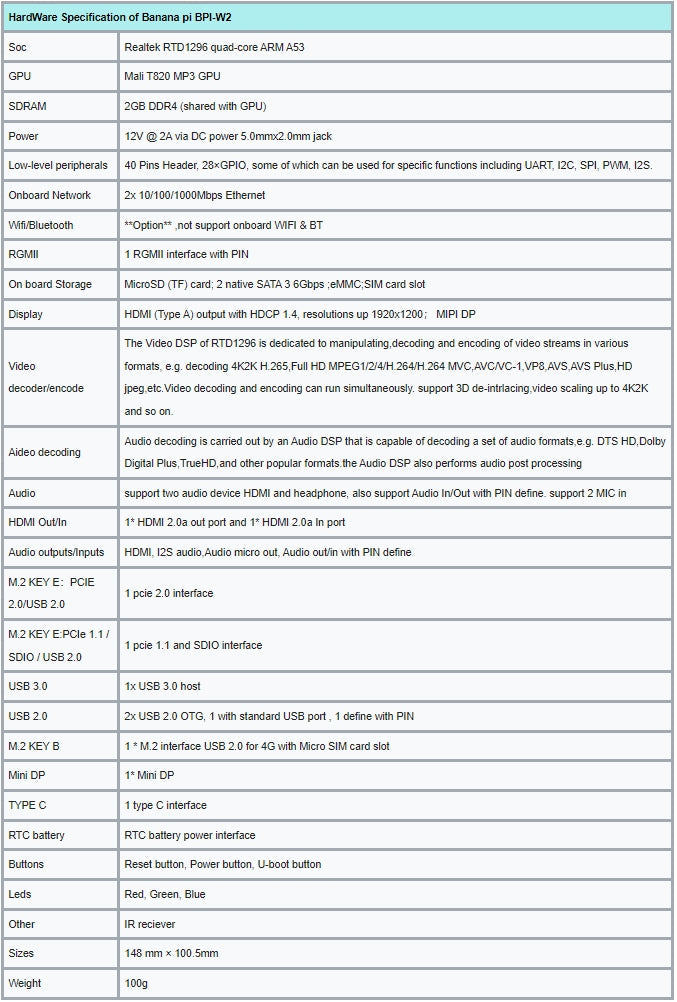

Özellik Değer
Soc Realtek RTD1296 quad-core ARM A53
GPU Mali T820 MP3 GPU
SDRAM 2GB DDR4 (shared with GPU)
Power 12V @ 2A via DC power 5.0mmx2.0mm jack
Low-level peripherals 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
Onboard Network 2x 10/100/1000Mbps Ethernet
Wifi/Bluetooth Option,not support onboard WIFI
Display HDMI (Type A) output with HDCP 1.4, resolutions up 1920x1200; MIPI DP
Audio support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 2 MIC in
HDMI Out/In 1* HDMI 2.0a out port and 1* HDMI 2.0a In port
Audio outputs/Inputs HDMI, I2S audio,Audio micro out, Audio out/in with PIN define
USB 3.0 1x USB 3.0 host
USB 2.0 2x USB 2.0 OTG, 1 with standard USB port , 1 define with PIN
Buttons Reset button, Power button, U-boot button
Leds Red, Green, Blue
Sizes 148 mm × 100.5mm
Weight 100g
CPU / SoC RTD1296
