Banana Pi BPI-PicoW-S3 Mikrodenetleyici Kartı

4,658.00TL +KDV


Banana Pi BPI-PicoW-S3 ESP32-S3 Development Board– WiFi & Bluetooth

SKU BPI-PiCOW-S3

Banana Pi BPI-PicoW-S3 ESP32-S3 Development Board– WiFi & Bluetooth — otomasyon, edge ve OEM projeleri için endüstriyel / gömülü bilgisayar donanımı. Genova Donanım.

Öne çıkanlar
Sürekli çalışma için endüstriyel sınıf tasarım
Otomasyon, HMI ve gömülü kurulumlara uygun
Sipariş kodu: BPI-PiCOW-S3
Teknik özellikler
SKU BPI-PiCOW-S3
Ürün Banana Pi BPI-PicoW-S3 ESP32-S3 Development Board– WiFi & Bluetooth
Kategori BPI Boards
Uygulama Otomasyon, gömülü bilgisayar, edge / IoT, OEM entegrasyon

Detaylı I/O ve bellek seçenekleri konfigürasyona bağlıdır. Datasheet için bize ulaşın.

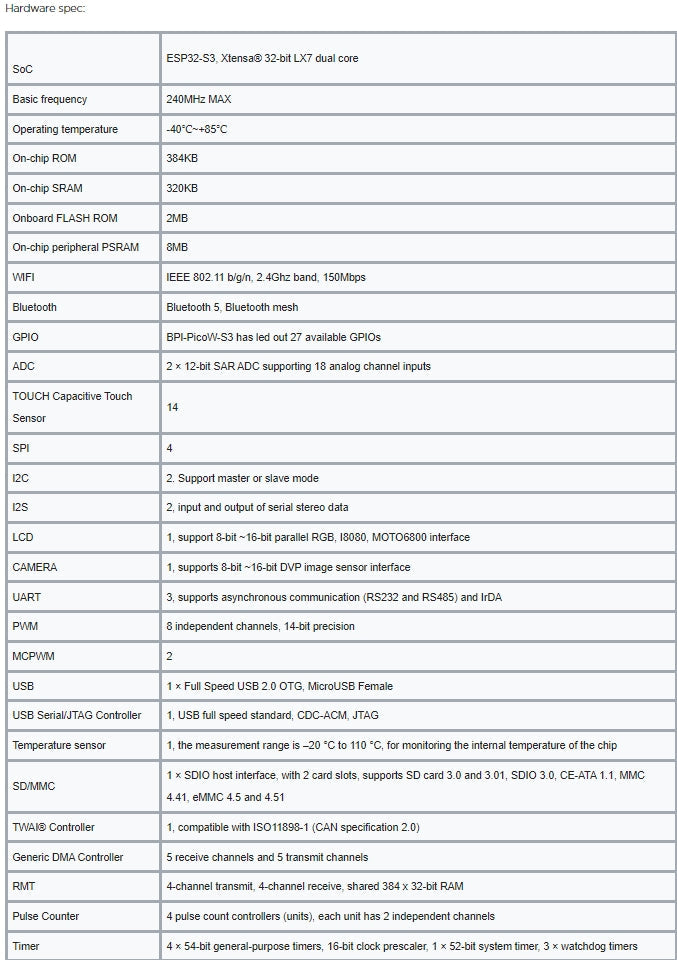

Özellik Değer
SoC ESP32-S3, Xtensa® 32-bit LX7 dual core
Operating temperature -40℃~+85℃
WIFI IEEE 802.11 b/g/n, 2.4Ghz band, 150Mbps
Bluetooth Bluetooth 5, Bluetooth mesh

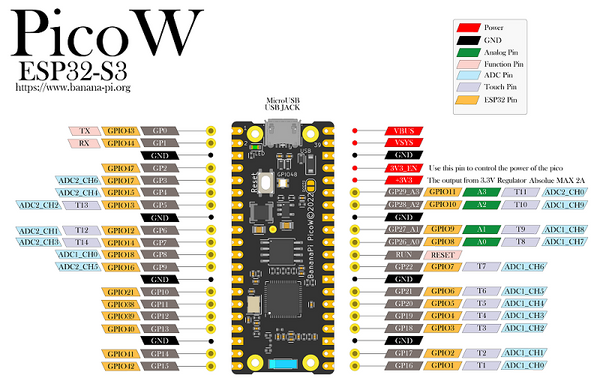

GPIO BPI-PicoW-S3 has led out 27 available GPIOs
CAMERA 1, supports 8-bit ~16-bit DVP image sensor interface
UART 3, supports asynchronous communication (RS232 and RS485) and IrDA
USB 1 × Full Speed ​​USB 2.0 OTG, MicroUSB Female
USB Serial/JTAG Controller 1, USB full speed standard, CDC-ACM, JTAG
Temperature sensor 1, the measurement range is –20 °C to 110 °C, for monitoring the internal temperature of the chip
CPU / SoC ESP32-S3, ESP32
